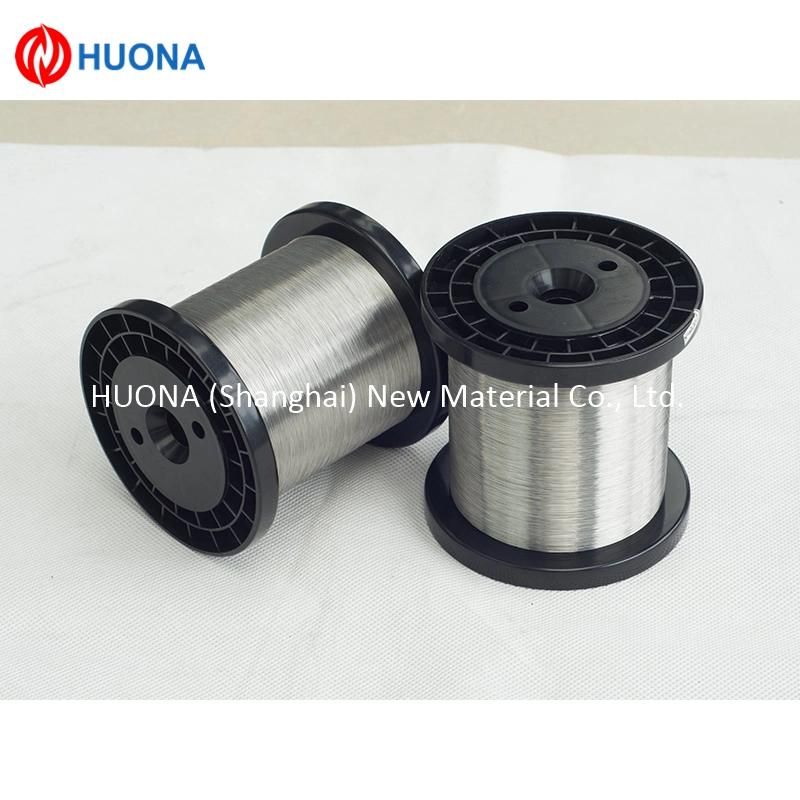

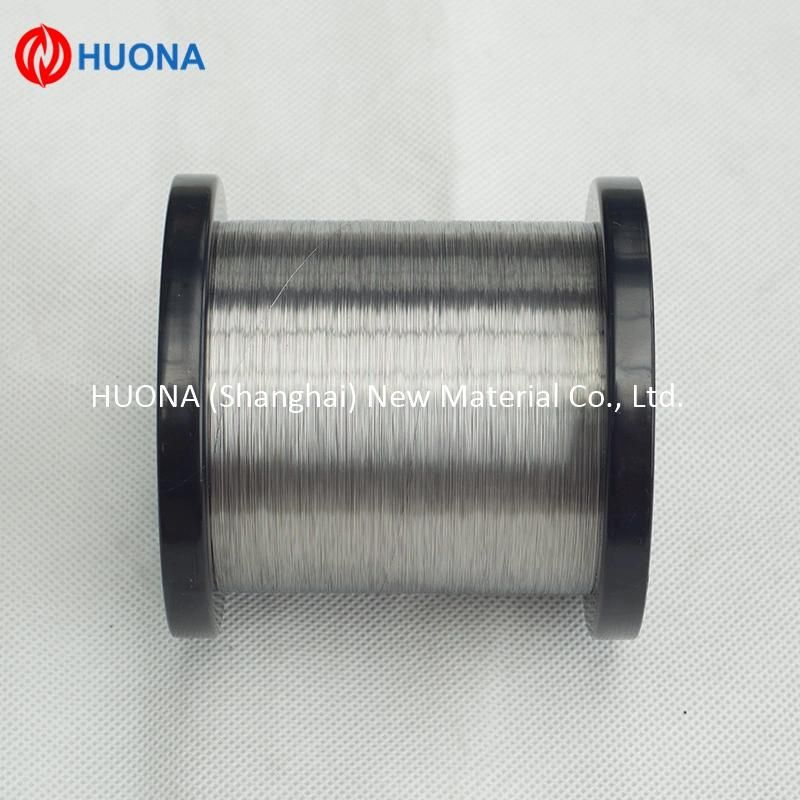

Np Nn Class I Type N Thermocouple Bare Wire 3.0 mm First Class
Huona (Shanghai) New Material Co., Ltd.- Certification：ISO9001, CCC
- Conductor Material：Solid
- Sheath Material：Bare
- Plug Type：-
- Insulating Materials：Bare
- Input Power：-
Base Info
- Model NO.：Type N
- Dia：0.3,0.5,0.8,1.0,1.2,1.6,2.0,2.5,3.2mmm
- Surface：Bright, Oxidized
- Grade：I,II,III
- Tensile Strength：390
- Item：Thermocouple Element Thermocouple Wire Chromel Alu
- Stock：Seyn
- Sample ( Less Than 1kg )：Free
- OEM：Yes
- Conductor：Chromel Constantan
- Shape：Wire Cod Strip Sheet
- Standard：IEC,DIN,ANSI,JIS,GOST
- Transport Package：Roll with Plastic Film Wrapped and Carton Package
- Specification：Diameter: 1.0mm2
- Trademark：HUONA
- Origin：Shanghai
- HS Code：7505220000
- Production Capacity：3000 Tons,Year
Description
-40~350±0.5°C/±0.4%t II ±1°C/±0.75%t III -200~40 ±1°C/±1.5%t
HUONA Detailed Parameter of thermocouple wireWorking Temperature Range
Diameter/mm
Long time Working temperature /ºC
Short period Working temperature /ºC
0.3
700
800
0.5
800
900
0.8,1.0
900
1000
1.2,1.6
1000
1100
2.0,2.5
1100
1200
3.2
12001300
HUONA THERMOCOUPLE ALLOYS CHARACTERISTICS:
1)Manufactured according to international quality. System (ISO9001) IEC584-1 IEC584-2 standard
2)Stable EMF and long-life span
3)Mill test certificate will be provided after production
4)Size range wire:.0.05-10mm ribbons: 0.05-0.2*2-6mm strips: 0.05-5*5-250mm
5)Good packing methods to keep goods no damage during delivery
6)Customized lable, packing, OEM service
7)24 hours after-sale service
HUONA MAIN CHARACTERISTICS OF WISDOM THERMOCOUPLE ALLOYS
TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538'C, and therefore heavier gauge wire is recommended for longer life at these temperatures.
TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.
TYPE T (Copper vs Constantan) is used or service in oxidizing, inert or reducing atmospheres or in vacuum. It is highly resistant to corrosion from atmospheric moisture and condensation and exhibits high stability at low temperatures. It is the only type with limits of error guaranteed for cryogenic temperatures.
TYPE E (CHROMEL vs Constantan) may be used in oxidizing, inert or dry reducing atmospheres, or for short periods of time under vacuum. Must be protected from sulfurous and marginally oxidizingatmospheres. Produces the highest EMF per degree o any standardized thermocouple.
Type N thermocouple (Ni Cr Si-Ni Si Mg) is the latest base metal thermocouple, developed to improve the drawbacks that type K thermocouple has. The main chemical composition of positive leg Nicrosil(NP) is Ni: Cr: Si≈84.4: 14.2: 1.4; negative leg Nisil (NN) is Ni: Si: Mg≈95.5: 4.4: 0.1. Type N thermocouple also be used in the similar atmospheres that type K works, and the operating temperature range is -200~1300 °C.
WHY CHOOSE HUONA NICR HIGH QUALITY THERMOCOUPLE ALLOYS?
All our raw material is made from prime material, not recycle material. We have more than 25 years experience in manufacturing thermocouple alloys.
In the market, not all the Thermocouple alloys are with standard chemical composition and stable EMF. Professional and reliable is the soul of our business.
