Fcj Opto Tech 24 Core Gjfjh Indoor Break-out Fiber Optic Cable
Zhejiang Fuchunjiang Photoelectric Science Technology Co., Ltd.- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：Can Be Customized
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
- Core：Single Core
Base Info
- Model NO.：GJFJH Break-out
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Fcj Opto Tech
- Sheath Material：Crosslinking
- Jacked Color：Blue, Orange, Green, White etc.
- Temperature Range：-20~70 Degree
- Transport Package：Carton Box
- Specification：2KM, 3KM
- Trademark：Fcj Opto Tech.
- Origin：China
- HS Code：854470000
- Production Capacity：8000km,Month
Description

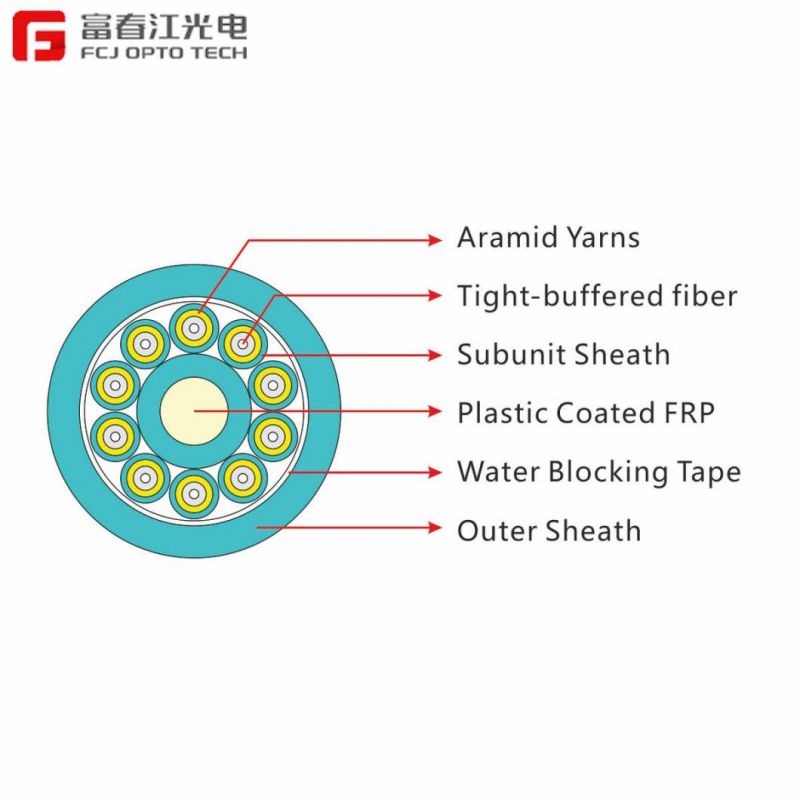

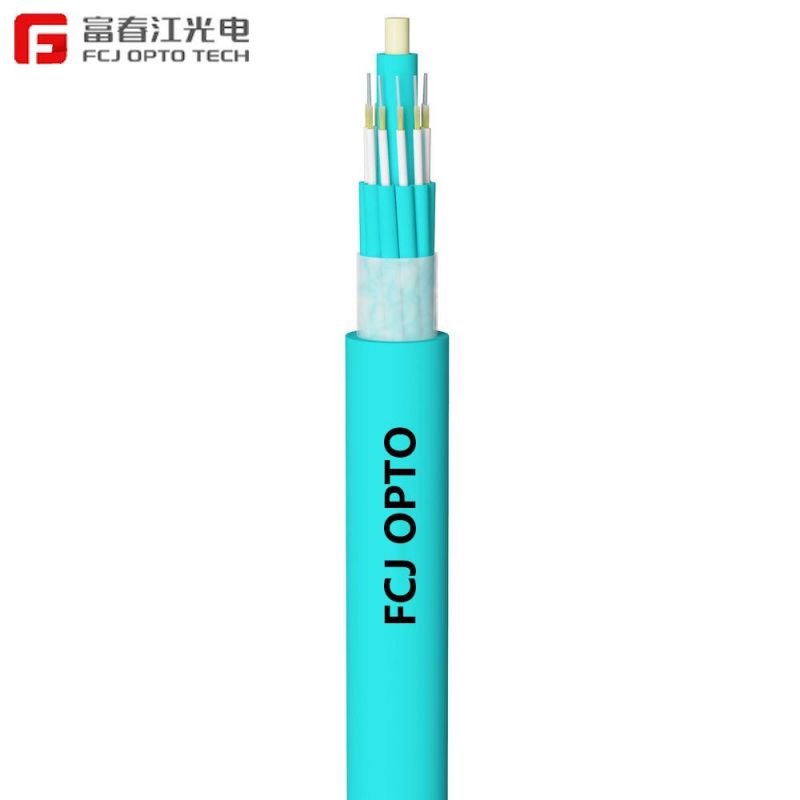

DescriptionGJFJHV cable,the tight buffer fiber is placed on the surface with a layer of aramid yarn as strength member units,multi fibers as the subunit twist with FRP(and some cushions) into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.
Characteristics
·Each sub cable contains aramid yarn,good bend performance,without gel,cleaning friendly,easy construction and connection.
·Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
·LSZH sheath,anti-retardant,Self-extinguishing,Suitable for machine room, cable shaft and used in indoor environment such as wiring inside the wall.
·LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the indoor environment (such as wiring in the ceiling, open wire cabling etc.)
Application
·Indoor horizontal wiring, vertical wiring in buildings, LAN network.
·Standard core can be directly apply to connectors,to use for device connecting
·Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.
Standards
·GJFJHV cable complies with Standard YD/T1258.4-2009,ICEA-596,GR-409,IEC794 etc; and meets with the requirements of UL approval for OFNR.
Technical Parameters
| Fiber Count | Subunit Diameter mm | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100m | Bending Radius Static/Dynamic mm |
| 2 | 2.0 | 7.0±0.5 | 45 | 500/1000 | 400/800 | 30D/15D |
| 4 | 2.0 | 7.0±0.5 | 45 | 500/1000 | 400/800 | 30D/15D |
| 6 | 2.0 | 8.3±0.5 | 62 | 500/1000 | 400/800 | 30D/15D |
| 8 | 2.0 | 9.4±0.5 | 85 | 500/1000 | 400/800 | 30D/15D |
| 10 | 2.0 | 10.7±0.5 | 109 | 500/1000 | 400/800 | 30D/15D |
| 12 | 2.0 | 12.2±0.5 | 140 | 500/1000 | 400/800 | 30D/15D |
Environmental Characteristics
| Transport Temperature | -20ºC~+60ºC |
| Storage Temperature | -20ºC~+60ºC |
| Installation Temperature | -5ºC~+50ºC |
| Operating Temperature | -20ºC~+60ºC |
