• Model NO.：2x16mm2 abc cable
• Wire Core Material：Aluminum Conductor
• Certification：ISO, CCC
• Model：Overhead ABC Cable
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：2.5~400sqmm
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

TypeApplicationDuplex Service DropTo supply120volt aerial service for temporary service at construction sites,outdoor or street lighting .For service at 600 volts or lower at a conductor temperature of 75°C maximum.Triplex Service DropTo supply power from the utility's lines to the consumer's weatherhead.For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximumfor polyethylene insulation 90°C maximum for crosslinked insulation.Quadruplex Service DropUsed to supply 3 phase power, usually from a polemounted transformer, to the user'sservice head where connection to the service entrance cable is made. To be used at voltages of 600volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethyleneinsulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors.

Construction of bundleLay of strandingBundle diameterAl weightBundle weightN * mm²mmmmkg/kmkg/km2x1630015,093137,0004x1635018,0186270,0002x2535018,4145214,0004x2543022,2290431,0003x25 + 7070026,6421569,0003x25 + 70 + 1x1670026,6467672,0003x25 + 70 + 2x1670029,6513739,0003x35 + 7076029,8509688,0003x35 + 70 + 1x1676029,8555759,0003x35 + 70 + 2x1676029,8602825,0003x50 + 7085033,1639809,0003x50 + 70 + 1x1685033,1685879,0003x50 + 70 + 2x1685033,1732945,0003x70 + 7098038,68131,0443x70 + 70 + 1x1698038,68601,1143x70 + 70 + 2x1698038,69071,1813x70 + 70 + 2x2598038,69581,253

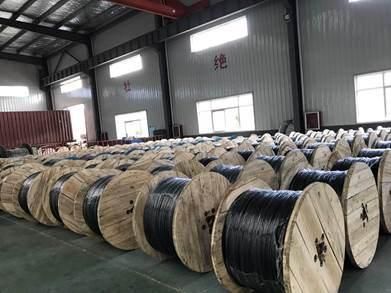

Packing shipping
