Conductor twin 16mm2 7*1.70mm AAC/PVC Covered 600 to1000 V BS 6485 IEC 61089
Jiangsu Grand Cable Co., Ltd.- Application：Construction, Overhead, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：PVC
- Sheath Material：N,a
- Material Shape：Round Wire
Base Info
- Model NO.：ABC
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE
- Model：ABC
- Brand：Grandcable
- Transport Package：Fumigated Drums
- Trademark：Grandcable
- Origin：Jiangsu, China
- HS Code：8544492100
- Production Capacity：78000 Km Per Year
Description
1TYPE: AAC/PVC Covered 2 c16mm2 b) Country of origin Name China c) Rated voltage kV 0.6/1 2 Applies Standard BS 6485; IEC 61059
.
3Conductor: a) Material - Hard drawn aluminium b) Normal section area mm² 16 c) Conductor shape - Stranded Circular d) Number of core each 2 e) Number and diameter of individual wire No./mm 7/1.70 f) Conductor diameter mm 5.1 4
Insulation: a) Material - PVC(weather resistant) b) Color - Black c)Average insulation Thickness mm ≥1.0 d)Minimum insulation thickness at any point mm 0.8 5 Core identification Number and Ribs 6 Approx.Overall/Outer diameter of cable mm 4.0 15.5 7 Max. DC.conductor resistance at 20ºC Ohm/km 1.813 8 Per core Breaking strength KN 2.827 9 Approx. weight of cable Kg/km 150 10 Packing: a)Length of cable per drum/reel m 6000 b) Material of drum (non-returnable) - Wooden c) Size of drum(Drum Overall Diameter × Inner Width) mm 1100×900 11 Cable Marking: With one length meter, the cable is printed on surface of cable as following,
as customer required

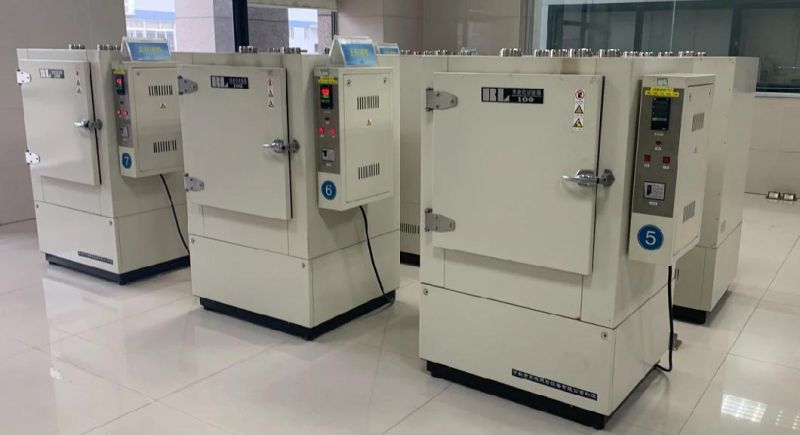

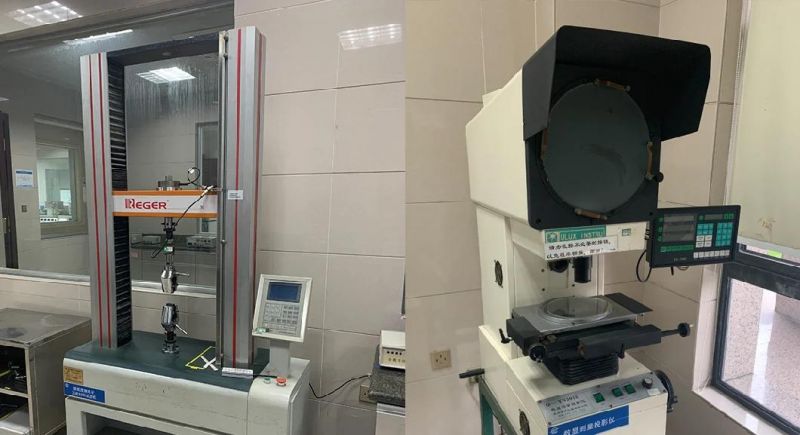

Testing Facilities

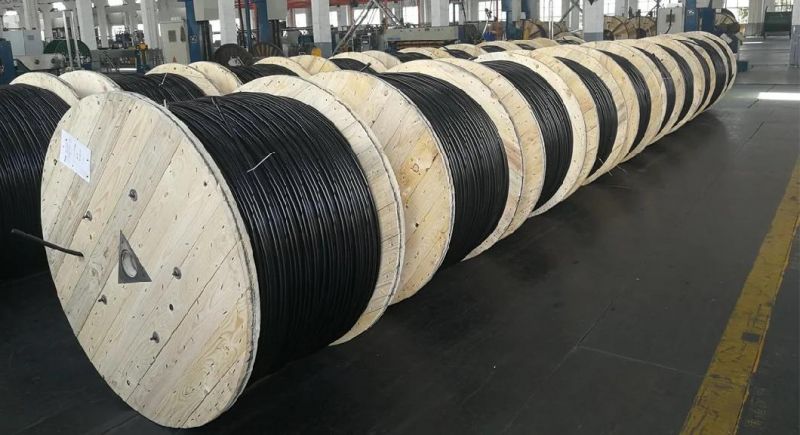

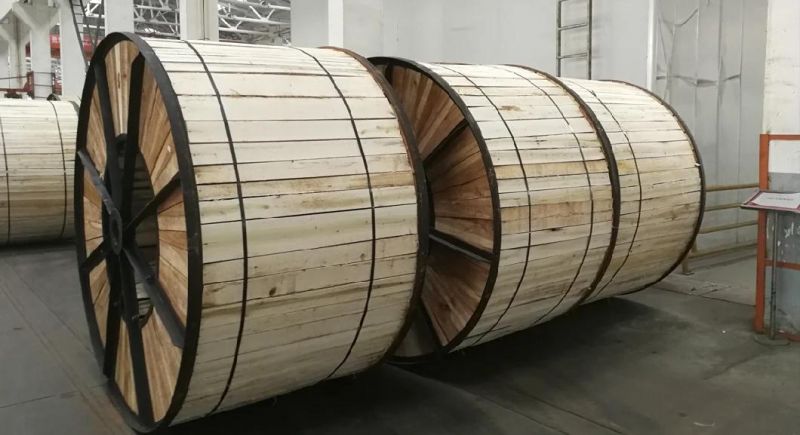

Packaging Photos

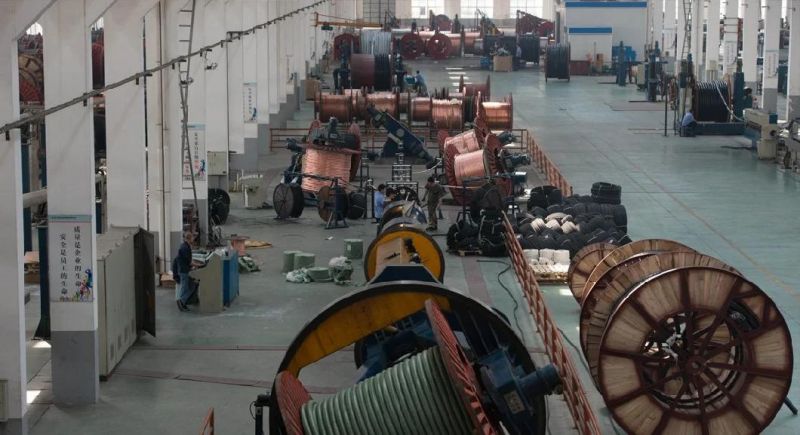

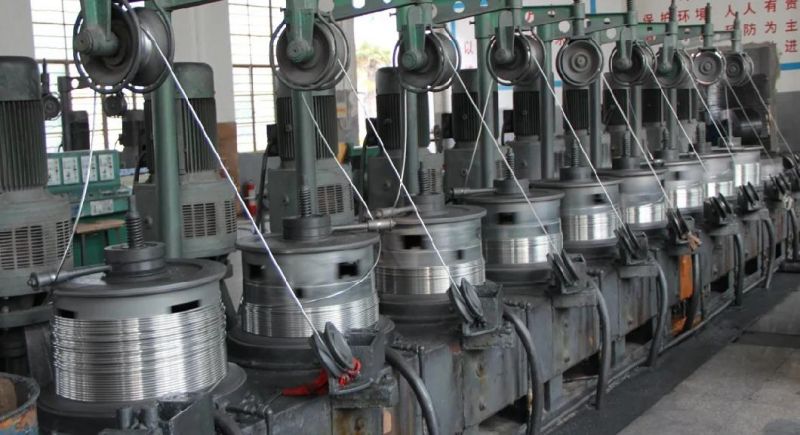

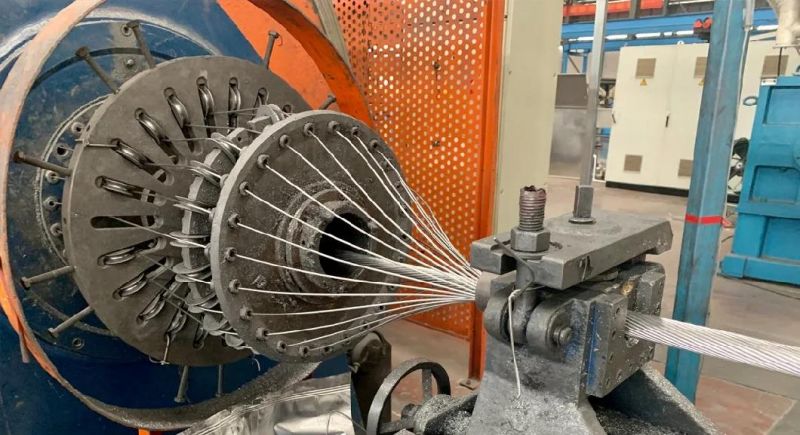

Workshop Views
About us:
Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.
With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.
FAQ:
.
3
Testing Facilities
Packaging Photos
Workshop Views
About us:
Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.
With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.
FAQ:
Q: How long does it take get my inquiry replied?
A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.
Q: Can I get samples before placing the order?
A: You will get a sample for free if we have the storage of that cable.
Q: What's the MOQ of your product?
A: The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.
Fore More Information, Please do feel free to contact us!
