• Model NO.：stranded cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：Stranded Copper Wire
• Brand：OEM
• Conductor：Bare Copper, Soft Drawn
• Insulation：Polyvinylchloride (PVC)
• Jacket：Nylon
• Thhn Wire：in Dry Locations
• Thwn Wire：in Wet Locations
• Rated Voltage：600V
• Transport Package：Roll
• Specification：1.6mm to 500mm
• Trademark：Hongda
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：5000km,Month

Basic Info.

Model NO. stranded cable Wire Core Material Bare Copper Wire Certification ISO, CCC Model Stranded Copper Wire Brand OEM Conductor Bare Copper, Soft Drawn Insulation Polyvinylchloride (PVC) Jacket Nylon Thhn Wire in Dry Locations Thwn Wire in Wet Locations Rated Voltage 600V Transport Package Roll Specification 1.6mm to 500mm Trademark Hongda Origin Henan, China HS Code 8544492100 Production Capacity 5000km/Month

Product Description

12mm 14mm 18mm 20mm 22mm 38mm 80mm stranded copper wire

Application:
THHN wire is a very popular type of building wire used in all types of industrial, commercial and residential construction. This type of building wire is effective in damp and dry locations. THHN stands for Thermoplastic High Heat Nylon which is a description of the wire jacket and insulation components. The conductor comes in many strands for anything over 10 gauge in the stranded or solid conductor for gauges 14-10. THHN wire has an advantage as build wire because of its ability to handle up to 600 volts which covers most common appliances.  The installation of THHN as building wire will fall within most building codes set out in the list of National Electrical Codes. This wire has a thermoplastic jacket releases toxic gases when burned. It cannot be used outside or buried due to its minimal protection. This is because this wire is used in building conditions where very little can hurt it. The jacketing protection is abrasion resistance but has little else in means of wire protection.

Construction:

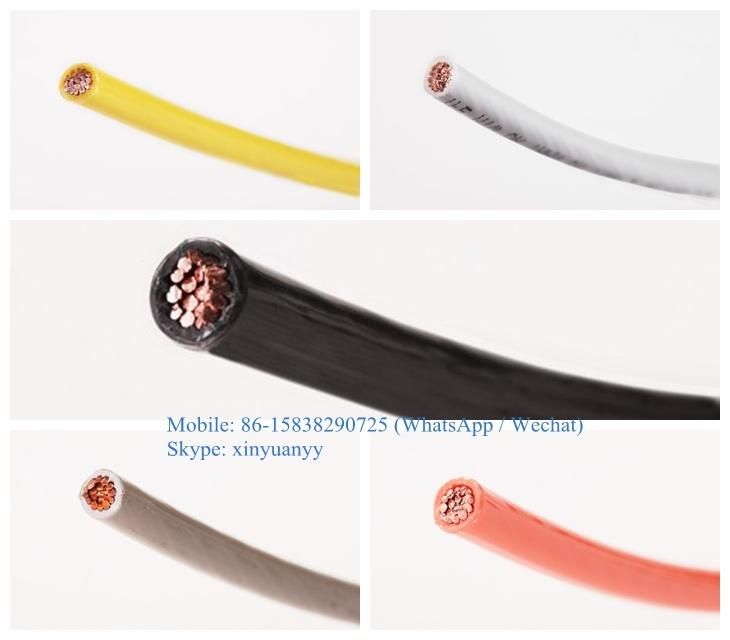

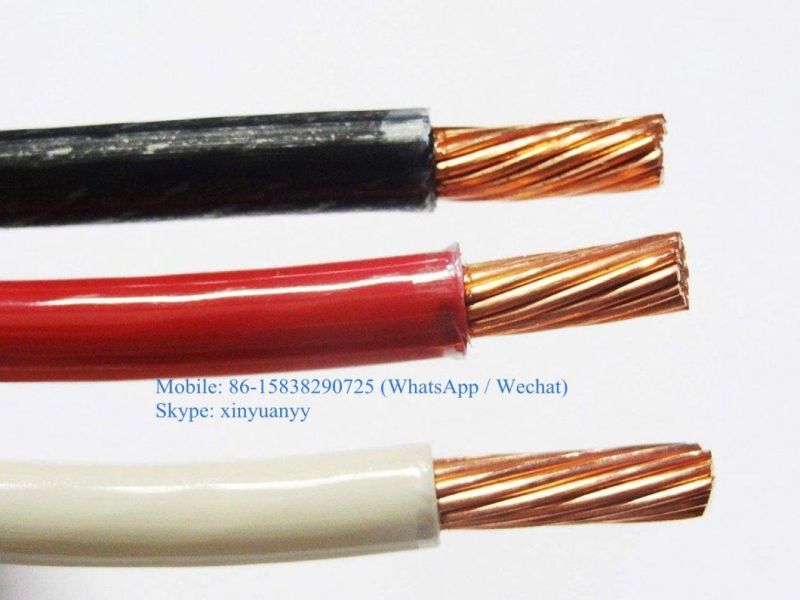

• Conductor: pure annealed copper wire ( Stranded Circular).
• Insulation: PVC
• Jacket: Nylon
• Color of Insulation: Black, White, Red, Green, Yellow, Blue, Green-Yellow

THHN Philippines specs:

Cross Section  mm2	Approximate Size AWG or MCM	Stranding  Number of wire x diameter mm.	Insulation  Thickness mm.	Nylon Jacket mm.	Approx. Outside  Diameter mm.	Approx. Net Weight Kg/Km	Ampacity 75ºC
2.0mm2	14	7*0.6	0.4	0.1	2.8	23.57	20
3.5mm2	12	7*0.8	0.4	0.1	3.4	39.29	25
5.5mm2	10	7*1.0	0.5	0.1	4.2	60.93	35
8.0mm2	8	7*1.2	0.8	0.13	5.46	92.49	50
14mm2	6	7*1.6	0.8	0.13	6.66	155.06	65
22mm2	4	7*2.0	1.0	0.15	8.3	241.69	85



Cross Section  mm2	Approximate Size AWG or MCM	Stranding  Number of wire x diameter mm.	Insulation Thickness mm.	Nylon Jacket mm.	Approx. Outside Diameter mm.	Approx. Net Weight Kg/Km	Ampacity 75ºC
30mm2	2	7*2.3	1.0	0.15	9.2	312.5	115
38mm2	1-19	19*1.6	1.3	0.18	10.96	400.37	130
50mm2	1/0-19	19*1.8	1.3	0.18	11.96	514.96	150
60mm2	2/0-19	19*2.0	1.3	0.18	12.96	626.12	175
80mm2	3/0-19	19*2.3	1.3	0.18	14.46	813.86	200
100mm2	4/0-19	19*2.6	1.3	0.18	15.96	1026.25	230
125mm2	250mcm	37*2.1	1.6	0.18	18.26	1313.25	255
150mm2	300mcm	37*2.3	1.6	0.2	19.7	1561.19	285
200mm2	400mcm	37*2.6	1.6	0.2	21.8	1971.93	335
250mm2	500mcm	61*2.3	1.6	0.2	24.3	2526.66	380
325mm2	650mcm	61*2.6	1.8	0.23	27.46	3219.48	435
400mm2	800mcm	61*2.9	1.8	0.23	30.16	3974.06	490
500mm2	1000mcm	61*3.2	1.8	0.23	32.86	4807.12	545

THHN Wire Applications:

• THHN electrical wire is meant for use as general-purpose wiring for installation in conduit or other recognized raceway. THHN wire may also be used for machine tool, appliance, and control circuit wiring. Read on below for THHN wire specs.

THHN Wire Specifications:

• Conductor: Bare Copper, Soft Drawn
• Insulation: Polyvinylchloride (PVC)
• Jacket: Nylon
• Standard Colors (denoted by a dash and number code following the part number below): Black (-0), Brown (-1), Red (-2), Orange (-3), Yellow (-4), Green (-5), Blue (-6), Violet (-7), Gray (-8), White (-9), Pink (-10), Tan (-11); Striping and Other colors available upon request.
• Gasoline & oil resistant - Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C when exposed to oil.

THHN Wire Ratings:

• THHN-THWN: 75°C Oil, 75°C Wet, 90°C Dry, 600V
• THWN-2: 75°C Oil, 90°C Wet, 90°C Dry, 600V
• MTW: 60°C Oil, 60°C Wet, 90°C Dry, 600V
• AWM 1316 to 1321: 80°C Oil, - Wet, 105°C Dry, 600V
• AWM 1408 to 1414: 60°C Oil, 60°C Wet, 90°C Dry, 600V
• AWM 1452 to 1453: 80°C Oil, - Wet, 90°C Dry, 600V
• T90 NYLON: 60°C Oil, - Wet, 90°C Dry, 1000V
• TWN 75: - Oil, 75°C Wet, - Dry, 600V

Packing:
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact with Vivian Yuan   we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
