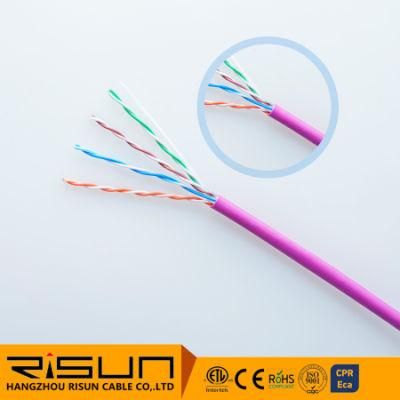

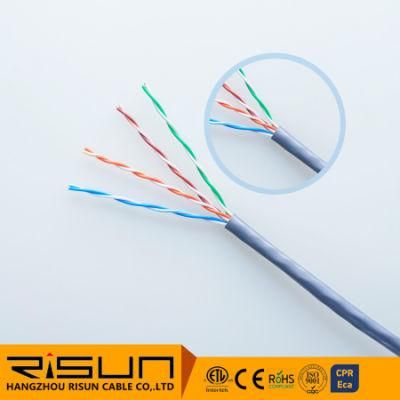

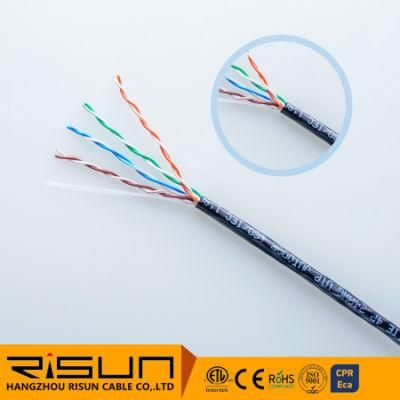

High Speed Solid Bare Copper FTP CAT6 LAN Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PE
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：cat6
  • Wire Core Material：Tinned Wire
  • Certification：CE, ISO, RoHS, UL, ETL SGS CPR
  • Brand：Risun or OEM
  • Insulation：1.1 HDPE
  • Filler：Yes
  • Shield：Al,Pet Foil
  • Drain：Yes
  • UV, Jelly, Fr：Available
  • Color：Multiple-Choice
  • Transport Package：305m,Pull Box, 2boxes,CTN.
  • Specification：ETL, RoHS, SGS, ISO9001
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description


ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²

Electrical Properties:

Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation
67%

Technical Performance:

          Attenuation         RL    Next        PS Next         (Mhz)           (dB/100M)        (dB)     (dB)      (dB/100m)            1               2.0         23    74.3          71.8            4               3.8         23    65.3          61.2           10               6.0         23    59.3            53           16               7.6         23    56.2          48.4           20               8.5         23    54.8          46.5         31.2              10.7         23    51.9          41.3         62.5              15.1         23    47.4          31.5         100              19.1         23    44.3          24.1         125              21.3         21    42.8          20.5        155.5              23.8         21    41.4          16.6         175
              25.3
         21    40.7          13.9         200                27         21    39.8          10.8         250              32.6         19    38.3             5
