Cable & Wire

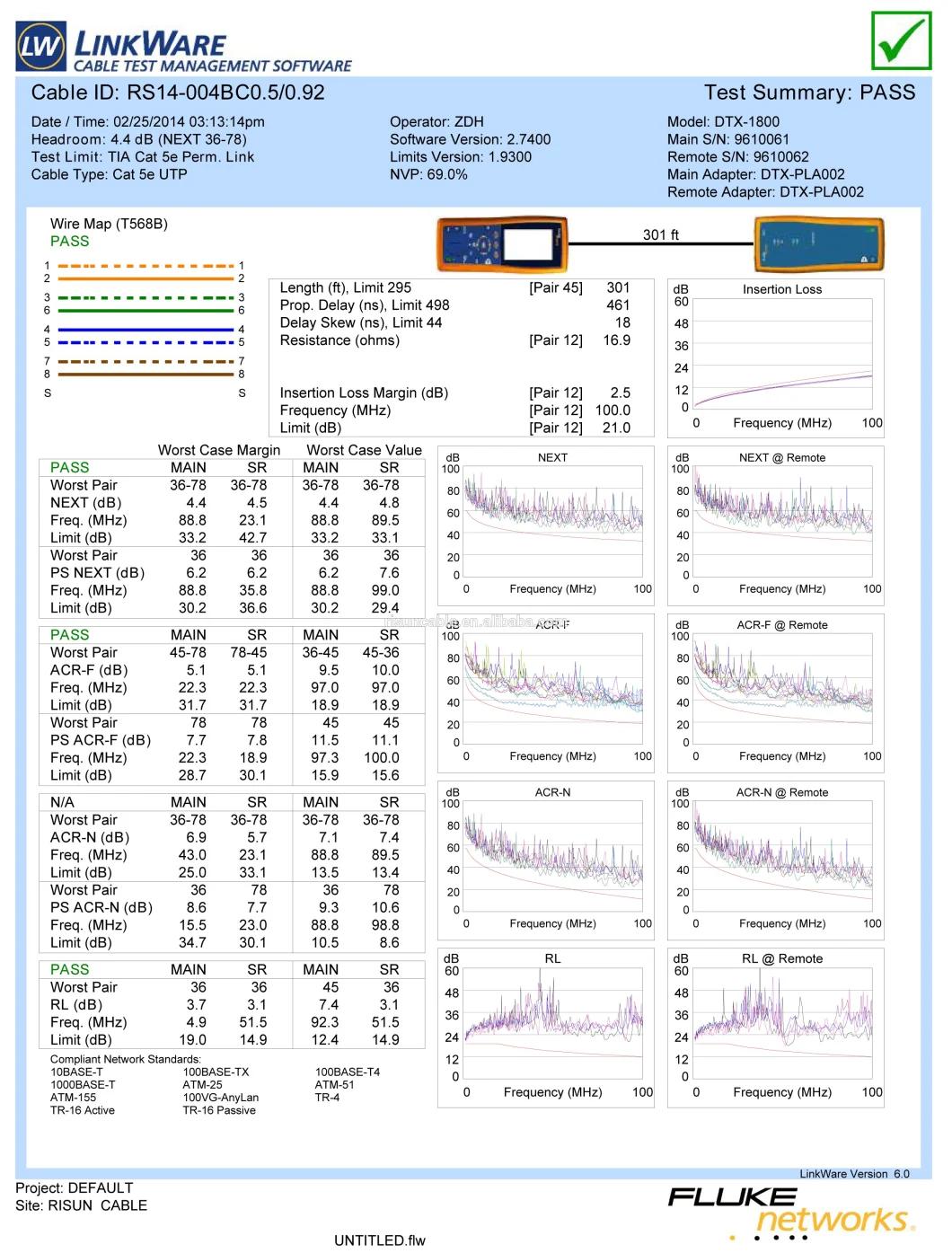

Cat5e U/UTP Cables 24AWG 8core with Ripcore Fluke Tester Passed

Hangzhou Risun Cable Co., Ltd.
  • Application:Local Communication Cable, LAN Cable
  • Conductor Material:BC,CCS,CCA,TC,CU,CCAG
  • Cover Material:PVC,LSZH
  • Type:Cat 5
  • Material Shape:Round Wire
  • Conductor Type:Solid

Base Info

  • Model NO.:U,UTP Cat5e
  • Wire Core Material:Bare Copper Wire
  • Certification:CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
  • Model:U,UTP Cat5e
  • Brand:Risun or OEM
  • Conductor:Solid Bare Copper
  • Insulation:HD PE
  • Jacket:PVC or LSZH
  • Rip Cord:Yes
  • Transport Package:305m,Pull Box, 2 Pull Box,CTN.
  • Specification:CE, ISO, RoHS, ETL SGS CPR ISO9001
  • Trademark:Risun or OEM
  • Origin:Hangzhou, Zhejiang, China(Mainland)
  • HS Code:8544491100
  • Production Capacity:20000 Boxes Per Month

Description

F/UTP CAT5e solidConductorSolid Bare Copper AWG24Conductor dia. nom. (mm)0.51InsulationHD PEAverage thickness (mm)0.21.0-100 MHz input impedance (ohms) 100 ± 61.0-250 MHz delay skew (ns/100 m) 45Pair-to-ground capacitance unbalance (pf/100 m) 330Max. conductor DC resistance 20˚C (ohms/km)93.8Resistance unbalance (%) 5

Details Images
Cat5e U/UTP Cables 24AWG 8core with Ripcore Fluke Tester Passed
Cat5e U/UTP Cables 24AWG 8core with Ripcore Fluke Tester Passed
Cat5e U/UTP Cables 24AWG 8core with Ripcore Fluke Tester Passed





Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.

Cat5e U/UTP Cables 24AWG 8core with Ripcore Fluke Tester Passed


Packing&Shipping:
Cat5e U/UTP Cables 24AWG 8core with Ripcore Fluke Tester Passed



















Cat5e U/UTP Cables 24AWG 8core with Ripcore Fluke Tester Passed
























Cat5e U/UTP Cables 24AWG 8core with Ripcore Fluke Tester Passed



















Cat5e U/UTP Cables 24AWG 8core with Ripcore Fluke Tester Passed











Why Choose Us:









Cat5e U/UTP Cables 24AWG 8core with Ripcore Fluke Tester Passed











FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.


Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of
freight.

Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
