• Model NO.：FTP Cat5e

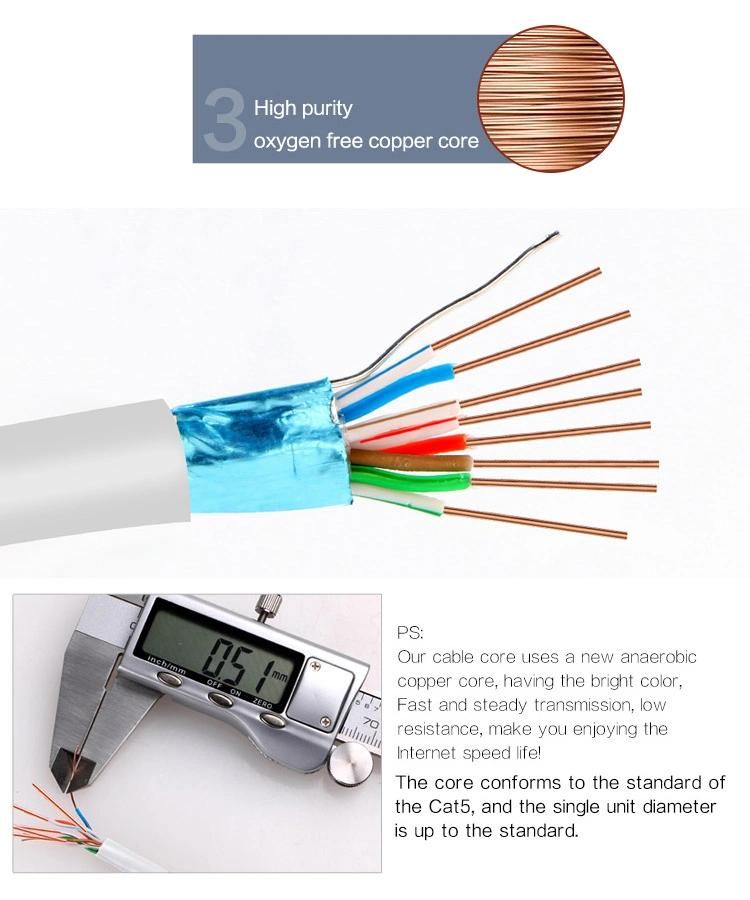

• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
• Model：FTP Cat5e
• Brand：Risun or OEM
• Insulation Material：HDPE
• Ripcord：500d
• UV：Available
• Waterproof：Available
• Frame Returdant：Available

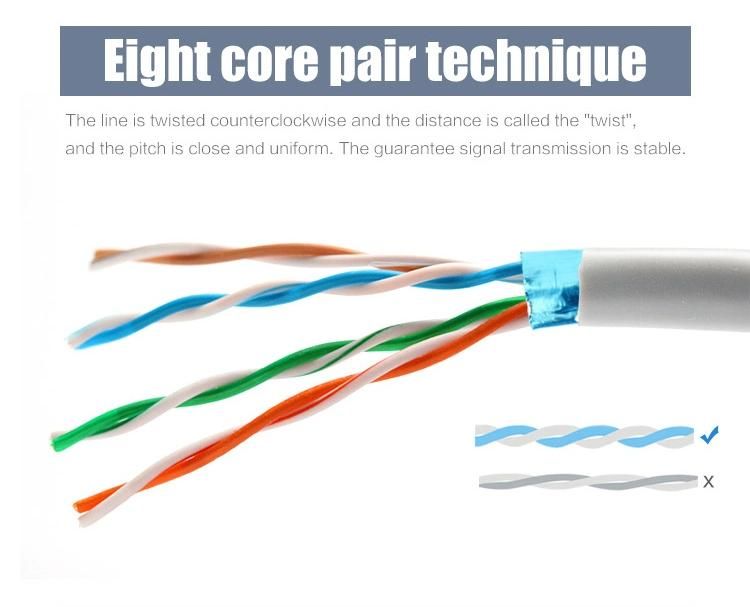

• No.of Conductor：8 Core, 4pairs
• Indoor/Outdoor：PVC,PE,PVC+PE,PVC+PVC,LSZH
• N.W.：8.5kgs
• G.W.：10kgs
• Color：Gery, White or According Customer Requirement
• Drain Wire：26 AWG Tinner Copper
• Shield：Polyester Tape+Aluminum Foil

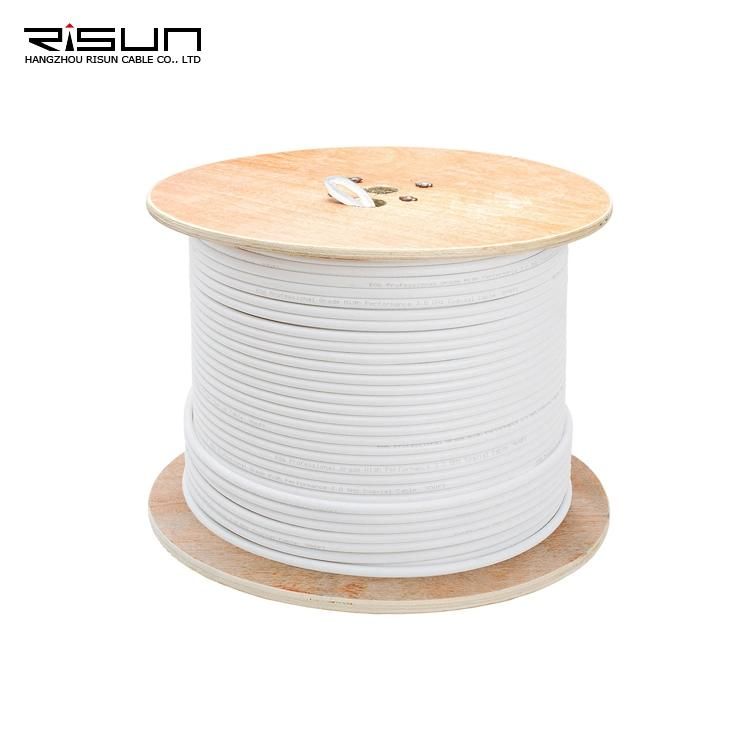

• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：ETL, CE, RoHS, SGS, ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

FTP CAT5E solidConductor MetalSolid Bare CopperColor CodeBlackConductor Diameter0.5mm Nominal, 24 AWGInsulation Diameter0.860 NominalInsulation MaterialHD-PEJacket MateriaUV PVCCable Diameter6.5 mm NominalPackage305M/1000ft, Wooden Reel, Carton, PalletDelivery timeNormally 25 days after received the deposit.ApplicationEthernet cables and telephone wires in the computer and telecommunications industry

TECHNICAL DETAILS:

Mutual Capacitance	5.6nF/100m nominal
Characteristic Impedance	100Ω±15%
Nominal Velocity of Propagation	69%
Conductor Resistance	< 9.38Ω/100m
Resistance Unbalance	5 % Max
Capacitance Unbalance	330pF/100m
Delay Skew	< 45nS
Bending Radius at -20°C ± 1°C	< 8 x Cable Diameter
Pulling Force	9.5 Kgs
Temperature Range	-20°to +70°C

Details Images:












Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.

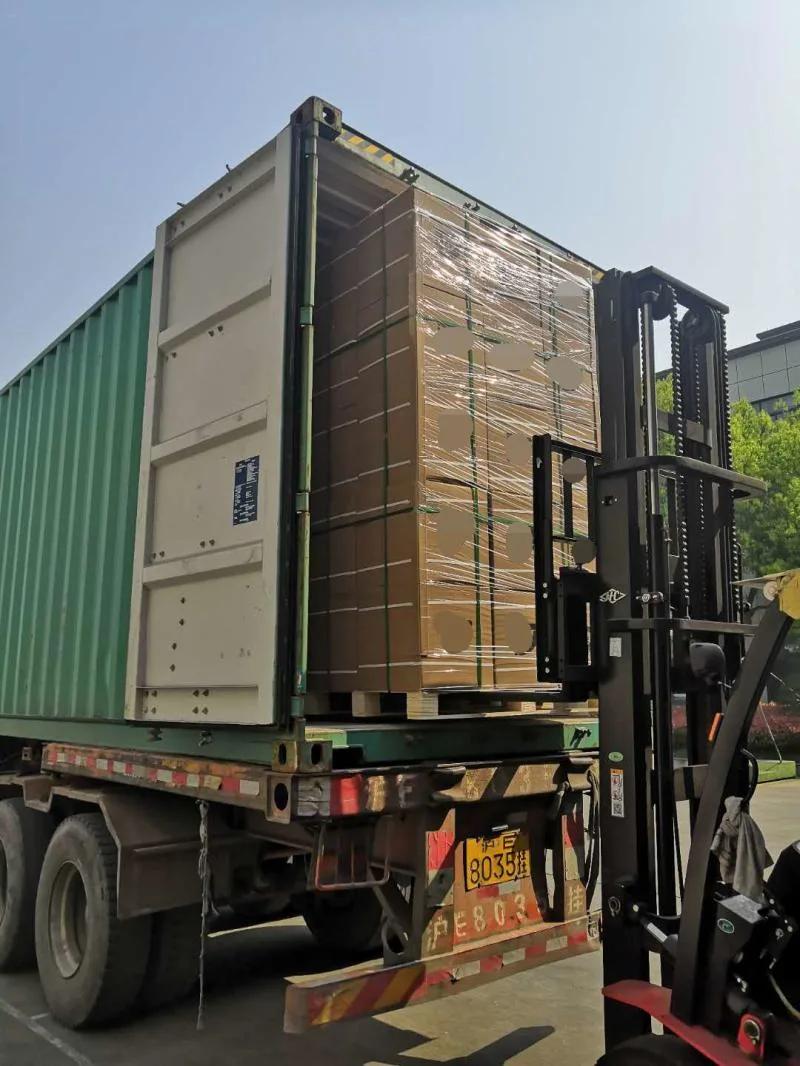

Packing&Shipping:













Why Choose Us:



FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
 WELCOME TO RISUN!!!
