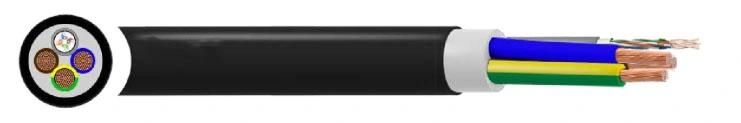

Fractory Direct Sale Type 2 to Type 1 Electric Vehicle Car Charger Cable EV Charging Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Electric Vehicles
- Conductor Material:Copper
- Sheath Material:Thermoplastic Elastomer
- Insulation Material:Thermoplastic Elastomer
Base Info
- Model NO.:SF SSPF S90S90
- Material Shape:Round Wire
- Range of Application:Electric Vehicles
- Certification:ISO9001, CE, UL, CCC, RoHS, VDE
- Transport Package:Wooden Box Packing or Pallet Shipping Containers
- Specification:US $0.5-5, Meter
- Trademark:FengDa
- Origin:Tianjin, China
- HS Code:8544492100
- Production Capacity:5, 000, 000km,Year
Description
Basic Info.
Model NO. SF SSPF S90S90 Material Shape Round Wire Range of Application Electric Vehicles Certification ISO9001, CE, UL, CCC, RoHS, VDE Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $0.5-5/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/YearProduct Description
Product Description:
1.Technical performance:
Rated voltage AC450/750V
Rated voltage DC0.6/1KV
The range of environmental temperature is -40ºC-+50ºC,the cables should be chosen according to the environmental temperature.
The cable should be based on GB/T18380.12-2008
This products should be based on GB/T 20234-2015"electric vehicle conductive charging connection device" in the second pard: AC charging interface; the third part:DC charging interface required producinon.
2. Type and Designation
Model | Designation |
SS | Thermoplastic Elastomer Insulation & sheath electric vehicle charging cable |
SSPS | Thermoplastic Elastomer insulated copper wire braid shielding thermoplastic elastomer sheath and sheath electric vehicle charging cable |
SF | Thermoplastic Elastomer Insulation thermosetting elastomer sheath electric vehicle charging cable |
SSPF | Thermoplastic elastomer insulated copper wire braid shielding thermoplastic elastomer sheath, thermosetting elastic sheath, electric vehicle charging cable |
S90S90 | Thermoplastic Elastomer Insulation & sheath electric vehicle charging cable |
S90S90PS90 | Thermoplastic elastomer insulated copper wire braid shielding thermoplastic elastomer sheath and sheath electric vehicle charging cable |
S90F | Thermoplastic Elastomer Insulation thermosetting elastomer sheath electric vehicle charging cable |
S90S90PF | Thermoplastic elastomer insulated copper wire braid shielding thermoplastic elastomer sheath, thermosetting elastic sheath, electric vehicle charging cable |
S90U | Thermoplastic elastomer insulated polyurethane elastomer sheath cable for electric vehicle charging |
S90S90PU | Thermoplastic elastomer insulated copper wire braid shielding thermoplastic elastomer sheath, Polyurethane elastomer sheath, electric vehicle charging cable |
S90S90UPU | Thermoplastic elastomer insulated copper wire braid shielding Polyurethane elastomer sheath, Polyurethane elastomer sheath, electric vehicle charging cable |
EU | Ethylene propylene rubber or similar synthetic rubber insulation Polyurethane elastomer sheath electric vehicle charging cable |
EUPU | Ethylene propylene rubber or similar synthetic rubber insulated copper wire woven shield Polyurethane elastomer sheath and sheath cable for electric vehicle charging |
EF | Ethylene propylene rubber or similar synthetic rubber insulation thermosetting elastomer sheath electric vehicle charging cable |
EFPF | Ethylene propylene rubber or similar synthetic rubber insulated copper wire braid shielding thermosetting inner sheath and sheath electric vehicle charging cable |
