Underground Swa Armoured Power Cable XLPE 5 Cores Armoured Electric Power Cable
Guangdong Vango Cable Industry Co., Ltd.- Type：Insulated Power Cable
- Conductor Type：Stranded Power Cable
- Application：Overhead, Underground, Power Grid, Transmission Line, Construction, Railw
- Conductor Material：Copper, Aluminium Conductor
- Sheath Material：XLPE, PVC, PE, etc.
- Insulation Material：XLPE, PVC, PE, etc.
Base Info
- Model NO.：YJV YJLV YJY YJLY etc.
- Material Shape：Round, Flat Wire Cable
- Range of Application：Overhead Installation, Power Transmission Line
- Certification：ISO9001, CE, UL, CCC, VDE, ISO9001,ISO14001, CCC, Ce
- Brand：Gdyg
- Supply Record：America, Australia, Africa, Arabian Countries
- Current：AC & DC Power Cable
- Sepcial Applicaton：Low Smoke Power Cable
- Sepcial Applicaton1：Fire Resistant Power Cable
- Aroumoured Type：Steel Wire, Aluminum Wire
- Business Type：Manufacturer, Factory
- Characters：Swa, Sta, Insulated Cable
- Standard：ISO, 3c, IEC,60502, IEC60227, an,Nz etc
- Key Word：Copper,Aluminum Cable
- Key Words：Armoured Power Cable
- Transport Package：Wooden Reel, Steel Reel
- Specification：0.5-630 mm2 Power Cable
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：8544492100
- Production Capacity：20000km Per Month
Description
nominal cross-section
mminsulation
thickness mm O.D.
mm capacitance
μF/km approx.
ampacity (air)
A approx.
ampacity buried
A reference weight
of finished cable
kg/km Cu Al Cu Al Cu Al 50 10.5 38.8 0.12 245 190 225 175 1745 1435 70 10.5 40.7 0.13 305 235 275 215 2025 1591 95 10.5 42.3 0.15 370 285 330 255 2330 1742 120 10.5 43.9 0.16 425 330 375 290 2647 1903 150 10.5 45.5 0.17 485 375 420 325 2998 2068 185 10.5 47.3 0.18 555 430 475 370 3414 2218 240 10.5 49.7 0.19 650 505 555 430 4044 2556 300 10.5 51.9 0.21 745 580 630 490 4696 2836 400 10.5 55.3 0.23 870 680 720 565 5801 3320 500 10.5 60.3 0.25 1000 790 825 645 7132 4032 630 10.5 64.5 0.28 1160 920 940 740 8515 4609
mminsulation
thickness mm O.D.
mm capacitance
μF/km approx.
ampacity (air)
A approx.
ampacity buried
A reference weight of finished cable
kg/km Cu Al Cu Al Cu Al 3X25 5.5 55.5 0.22 129 100 155 120 3833 3476 3X25 5.5 57.9 0.25 156 120 185 144 4313 3702 3X50 5.5 61.1 0.26 184 143 218 169 5281 4311 3X70 5.5 64.9 0.28 229 177 267 207 5878 4399 3X95 5.5 68.8 0.30 275 213 319 247 6867 4770 3X120 5.5 72.2 0.32 316 246 363 282 7906 5192 3X150 5.5 75.8 0.33 363 281 412 319 9045 5554 3X185 5.5 79.9 0.35 408 317 460 357 10435 6070 3X240 5.5 86.4 0.38 178 372 531 413 13299 7532 3X300 5.5 91.6 0.40 546 425 598 466 15463 8169 3X400 5.5 101.8 0.44 638 501 686 539 19505 9662
Company profile:
Established in 1988, as one of the main enterprise of Vango Group, Guangdong Vango Cable Industry Co., Ltd., the Guangdong Top 100 Private enterprise and VIP Service Key Enterprise in Guangdong Province, is an excellent technical private enterprise growing with the pace of Chinese economic reform and opening. It is the main supplier of cable & conductor and special transmission conductor of National Power Grid and China Southern Power Grid. The comprehensive strength of Vango Company ranks top 20 of the cable industry in China and top 5 of the Guangdong province. "Guang" products are branded as the Guangdong Top Brand Products and "Guang" brand was recognized as "Chinese Famous Trademark" by Trademark Bureau of National Commercial and Industrial Bureau of CPC. Vango company is the member of the National Standardization Committee, and it has drawn up and revised 12 sets of national and industrial standards.
It covers 214000m² with about 110 sets international advanced cable and wire producing and testing equipment. There are 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. It gains 21 Patents issued by State Intellectual Property Office of China.
The main products are power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items. The researching and manufacturing of conductor applied in 500kV to 1000kV ultra-high voltage DC transmission line is in the domestic advanced level. Guang Brand products have been widely supplying to the key engineering projects of State Grid Corporation of China and China Southern Power Grid, such as ±800kV DC Transmission Line from Yunnan to Guangdong, ±500kV DC Transmission Line from Xi Nuodu Power Station to Guangdong, ±800kV DC Transmission Line from Nuo Zhadu Power Station to Guangdong and etc. The products are exporting to Pilipinas, Cambodia, South Africa, Madagascar and other countries. At the same time, Vango Cable bears the social responsibility. Facing the power damage by Guangdong Huiyang's Typhoon, Shaoguan flood and ice disaster of South China in 2008, Vango Cable company send the electricity material and electricity worker immediately, bringing praise and respect from government and peers.
Vango cable passed the ISO 9001:2000 certificate in 2001. Approved by the specialist of China Quality Mark Certification Group, Guangdong Vango company passed the authentication of Quality, Environment, and Occupational Safety and Health Administration System. In the future journey, based on the technical innovation and strict scientific management, Yuanguang Company will work harder on building modern industrial cluster of new-type cable manufacturing in Guangdong Province, which is applied in ultra-high voltage DC transmission line. At the same time, Yuanguang will take concrete steps in becoming a modern large-scale and collectivize enterprise for making greater contribution to social and economic development.

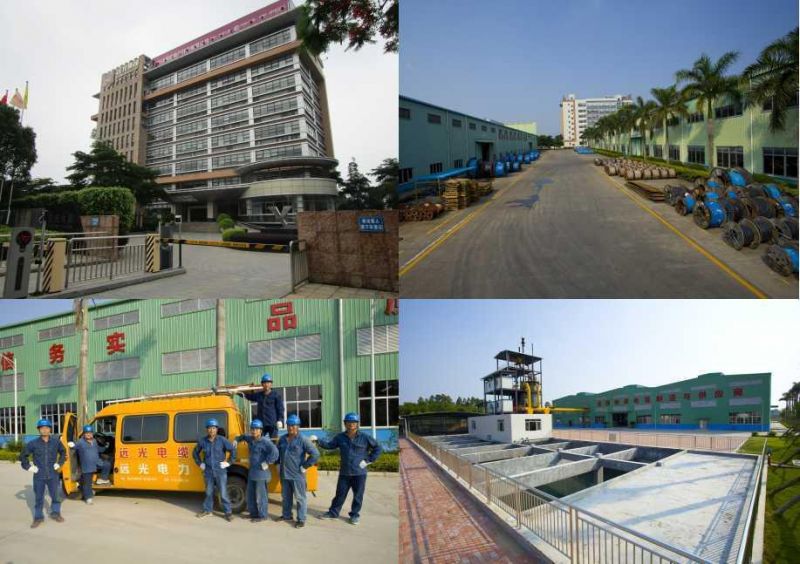

Our company

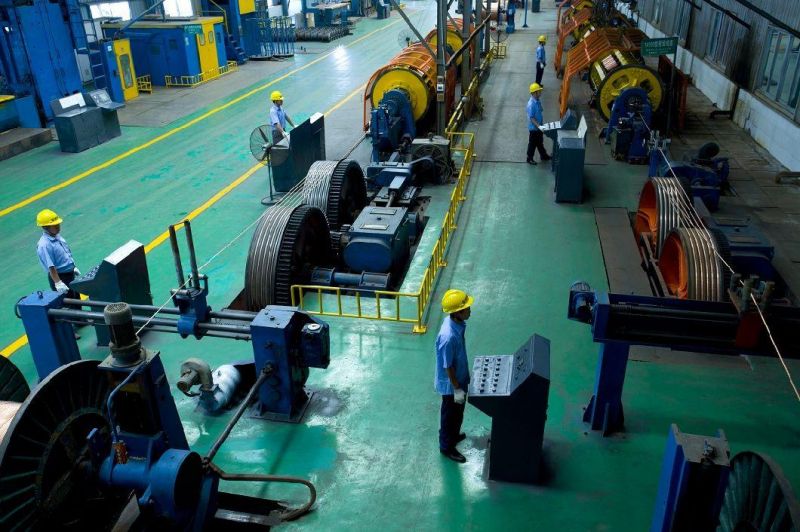

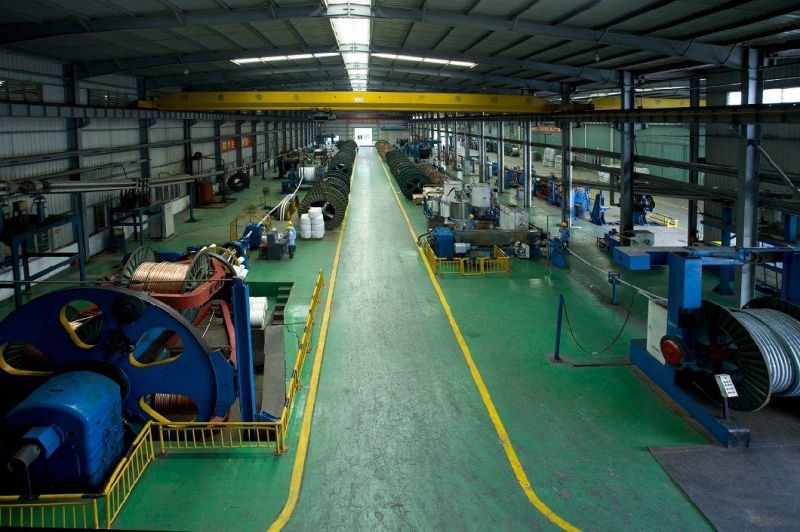

Workshop
Customer
Certificates
FAQ:
1. Are you a trading company or manufacture?
We are a wire and cable Manufacturer with 30 years history almostly, our factory located in Qingyuan, Guangdong Province, China.
2. What is your main product?
As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
3. Can you offer me a free sample?
Yes, sample is free but the freight charge should be borne by you.
4.How is the payment?
T/T, L/C is acceptable.
5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.
6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.
7.Do you have after-sale service?
Yes, 12 months warranty.
Contact us:
Sherry Zhang
Mobile +86 18565101089
Watapp +86 18565101089
Facebook +86 18565101089
