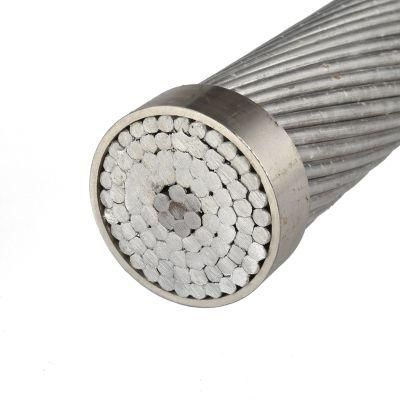

China Supplier of ACSR Electrical Cable with Simple Construction and Easy Installation
Guangdong Vango Cable Industry Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead, Overhead Installation
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：ACSR
- Material Shape：Round Wire
- Range of Application：Overhead Installation
- Certification：ISO9001, ISO9001,ISO14001, CCC, Ce
- Brand：Gdyg
- Warranty：12 Months
- Standard：IEC61089, ASTM B232, BS215, GB, DIN etc.
- Model No.：ACSR Conductor
- ACSR Code：Turkey, Swan, etc.
- Supply Record：African Countries, Arabian Countries, etc.
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600 Tons Per Month
Description
Current carrying capacityAl Steel Total Al Steel Al Steel Core Cond. mm2 mm2 mm2 mm mm mm mm kg/km kN Ω/km N/mm2 1/K A 15-AL1/3-ST1A 16/2.5 15.3 2.54 17.8 6 1 1.80 1.80 1.80 5.40 61.6 5.80 1.8769 81000 1.92E-05 105 24-AL1/4-ST1A 25/4 23.9 3.98 27.8 6 1 2.25 2.25 2.25 6.75 96.3 8.95 1.2012 81000 1.92E-05 140 34-AL1/6-ST1A 35/6 34.4 5.73 40.1 6 1 2.70 2.70 2.70 8.10 138.7 12.37 0.8342 81000 1.92E-05 170 44-AL1/32-ST1A 44/32 44.0 31.70 75.6 14 7 2.00 2.40 7.20 11.20 369.3 44.24 0.6574 110000 1.50E-05 - 48-AL1/8-ST1A 50/8 48.3 8.04 56.3 6 1 3.20 3.20 3.20 9.60 194.8 16.81 0.5939 81000 1.92E-05 210 51-AL1/30-ST1A 50/30 51.2 29.80 81.0 12 7 2.33 2.33 6.99 11.70 374.7 42.98 0.5644 107000 1.53E-05 - 70-AL1/11-ST1A 70/12 69.9 11.40 81.3 26 7 1.85 1.44 4.32 11.70 282.2 26.27 0.4132 77000 1.89E-05 290 94-AL1/15-ST1A 95/15 94.4 15.30 109.7 26 7 2.15 1.67 5.01 13.60 380.6 34.93 0.3060 77000 1.89E-05 350 97-AL1/56-ST1A 95/55 96.5 56.30 152.8 12 7 3.20 3.20 9.60 16.00 706.8 77.85 0.2992 107000 1.53E-05 - 106-AL1/76-ST1A 105/75 105.7 75.50 181.2 14 19 3.10 2.25 11.30 17.50 885.3 105.82 0.2742 110000 1.50E-05 - 122-AL1/20-ST1A 120/20 121.6 19.80 141.4 26 7 2.44 1.90 5.70 15.50 491.0 44.50 0.2376 77000 1.89E-05 410 122-AL1/71-ST1A 120/70 122.1 71.30 193.4 12 7 3.60 3.60 10.80 18.00 894.5 97.92 0.2364 107000 1.53E-05 - 128-AL1/30-ST1A 125/30 127.9 29.80 157.8 30 7 2.33 2.33 6.99 16.30 587.0 56.41 0.2260 82000 1.78E-05 425 149-AL1/24-ST1A 150/25 148.9 24.20 173.1 26 7 2.70 2.10 6.30 17.10 600.8 53.67 0.1940 77000 1.89E-05 470 172-AL1/40-ST1A 170/40 171.8 40.10 211.8 30 7 2.70 2.70 8.10 18.90 788.2 74.89 0.1683 82000 1.78E-05 520 184-AL1/30-ST1A 185/30 183.8 29.80 213.6 26 7 3.00 2.33 6.99 19.00 741.0 65.27 0.1571 77000 1.89E-05 535 209-AL1/34-ST1A 210/35 209.1 34.10 243.2 26 7 3.20 2.49 7.47 20.30 844.1 73.36 0.1381 77000 1.89E-05 590 212-AL1/49-ST1A 210/50 212.1 49.50 261.5 30 7 3.00 3.00 9.00 21.00 973.1 92.46 0.1363 82000 1.78E-05 610 231-AL1/30-ST1A 230/30 230.9 29.80 260.8 24 7 3.50 2.33 6.99 21.00 870.9 72.13 0.1250 74000 1.96E-05 630 243-AL1/39-ST1A 240/40 243.1 39.50 282.5 26 7 3.45 2.68 8.04 21.80 980.1 85.12 0.1188 77000 1.89E-05 645 264-AL1/34-ST1A 265/35 263.7 34.10 297.7 24 7 3.74 2.49 7.47 22.40 994.4 81.04 0.1095 74000 1.96E-05 680 304-AL1/49-ST1A 300/50 304.3 49.50 353.7 26 7 3.86 3.00 9.00 24.40 1227.3 105.09 0.0949 77000 1.89E-05 740 305-AL1/39-ST1A 305/40 304.6 39.50 344.1 54 7 2.68 2.68 8.04 24.10 1151.2 96.80 0.0949 70000 1.93E-05 740 339-AL1/30-ST1A 340/30 339.3 29.80 369.1 48 7 3.00 2.33 6.99 25.00 1171.2 91.71 0.0852 62000 2.05E-05 790 382-AL1/49-ST1A 380/50 381.7 49.50 431.2 54 7 3.00 3.00 9.00 27.00 1442.5 121.30 0.0758 70000 1.93E-05 840 386-AL1/34-ST1A 385/35 386.0 34.10 420.1 48 7 3.20 2.49 7.47 26.70 1333.6 102.56 0.0749 62000 2.05E-05 850 434-AL1/56-ST1A 435/55 434.3 56.30 490.6 54 7 3.20 3.20 9.60 28.80 1641.3 133.59 0.0666 70000 1.93E-05 900 449-AL1/39-ST1A 450/40 448.7 39.50 488.2 48 7 3.45 2.68 8.04 28.70 1549.1 119.05 0.0644 62000 2.05E-05 920 490-AL1/64-ST1A 490/65 490.3 63.60 553.8 54 7 3.40 3.40 10.20 30.60 1852.9 150.81 0.0590 70000 1.93E-05 960 494-AL1/34-ST1A 495/35 494.4 34.10 528.4 45 7 3.74 2.49 7.47 29.90 1632.6 117.96 0.0584 61000 2.09E-05 985 511-AL1/45-ST1A 510/45 510.5 45.30 555.8 48 7 3.68 2.87 8.61 30.70 1765.3 133.31 0.0566 62000 2.05E-05 995 550-AL1/71-ST1A 550/70 549.7 71.30 620.9 54 7 3.60 3.60 10.80 32.40 2077.2 166.32 0.0526 70000 1.93E-05 1020 562-AL1/49-ST1A 560/50 561.7 49.50 611.2 48 7 3.86 3.00 9.00 32.20 1939.5 146.28 0.0515 62000 2.05E-05 1040 571-AL1/39-ST1A 570/40 571.2 39.50 610.6 45 7 4.02 2.68 8.04 32.20 1887.1 136.40 0.0506 61000 2.09E-05 1050 653-AL1/45-ST1A 650/45 653.5 45.30 698.8 45 7 4.30 2.87 8.61 34.40 2159.9 156.18 0.0442 61000 2.09E-05 1120 679-AL1/86-ST1A 680/85 678.6 86.00 764.5 54 19 4.00 2.40 12.00 36.00 2549.7 206.56 0.0426 68000 1.94E-05 1150 1046-AL1/45-ST1A 1045/45 1045.60 45.30 1090.9 72 7 4.30 2.87 8.61 43.00 3248.2 218.92 2.77E-02 60000 2.17E-05 1580
Our company:
Established in 1988, Guangdong Vango Cable Industry Co., Ltd., the Guangdong Top 100 Private enterprise, is a professional manufacturer of power cables and wires. It is the main supplier of cable & conductor and special transmission conductor of National Power Grid and China Southern Power Grid. The comprehensive strength of Vango Company ranks top 20 of the cable industry in China and top 5 of the Guangdong province.
It covers 214000m² with about 110 sets international advanced cable and wire producing and testing equipments. There are 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. It gains 21 Patents issued by State Intellectual Property Office of China.
The main products are power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.

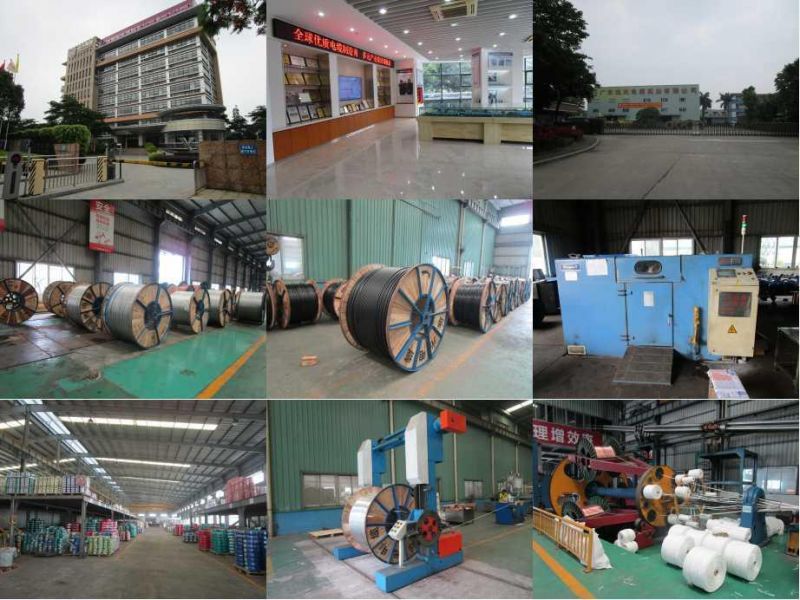

Workshop:
Certificates:
Customers:
Our company:
Established in 1988, Guangdong Vango Cable Industry Co., Ltd., the Guangdong Top 100 Private enterprise, is a professional manufacturer of power cables and wires. It is the main supplier of cable & conductor and special transmission conductor of National Power Grid and China Southern Power Grid. The comprehensive strength of Vango Company ranks top 20 of the cable industry in China and top 5 of the Guangdong province.
It covers 214000m² with about 110 sets international advanced cable and wire producing and testing equipments. There are 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. It gains 21 Patents issued by State Intellectual Property Office of China.
The main products are power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
