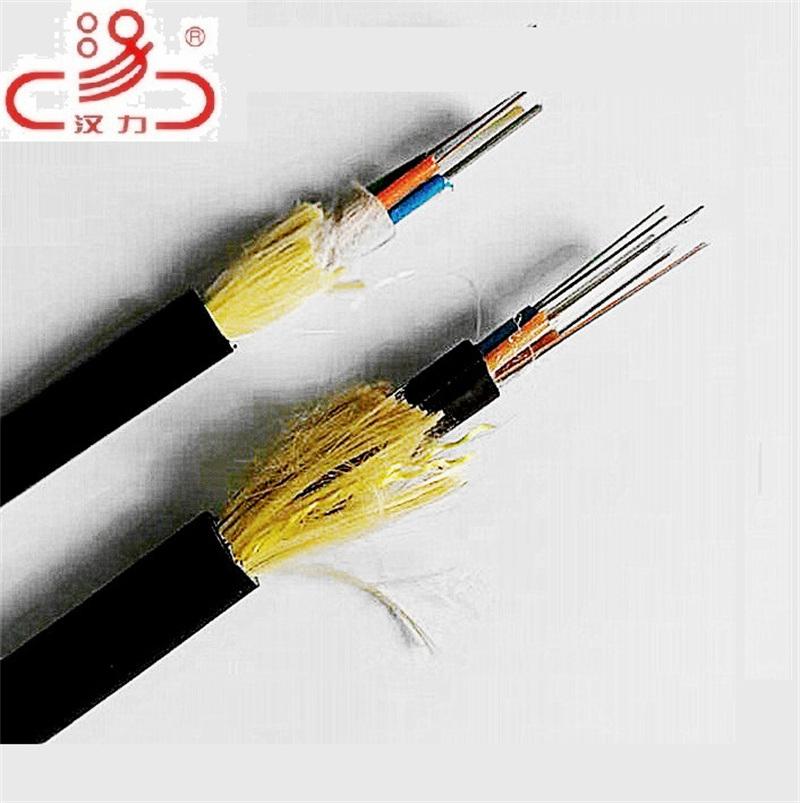

ADSS 6 Core-144core Single Mode/Multimode Fiber Optic Cable

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Communication, Sensor, Medicine
  • Type：Single-mode Fiber
  • Connection Structure：SC
  • Material Shape：Flat Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：>10000N

Base Info

  • Model NO.：Fiber Optical Cable Made in China
  • Core：Double Core
  • Certification：RoHS, CE, ISO9001
  • Brand：OEM
  • Sheath Material：PC
  • Transport Package：1000
  • Specification：30X30X30CM
  • Trademark：hanli
  • Origin：Zhejiang
  • Production Capacity：3000000m,Month

Description

Optical Characteristics:

Fiber Sort

Multimode

G.651

A1a:50/125

Graded-index fiber

A1b:62.5/125

Singlemode

G.652(A,B,C)

B1.1:Conventional fiber

G.652D

B2: Zero  dispersion shifted

G.655

B1.2 :Cut-off wavelength shifted

G.657(A1,A2 ,B3)

B4: Main technical data for positive
  dispersion shifted single-mode fiber


Fiber Num.Outer diameter (mm)Weight (kg/km)Min. Bending radius(mm)Tension (N)Crash loading (N/100mm)StaticDynamicShort termLong termShort termLong term2-309.89510 times O. D.20 times O. D.1500600100030032-3610.311538-6010.711562-7211.314074-9612.9175

ADSS  Outdoor  Aerial and Duct 48 Core Fiber Optic Cable Packaging Detail:
ADSS  2-288 Core Optical Fiber Cable package are  wooden drum.  Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM
Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cabledrum from customers.
