• Model NO.：GW04
• Material Shape：Round Wire
• Range of Application：High Temperature Environment
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Fongming
• Color：as Per Clients′ Request
• Conductor：Nickel Plated Copper
• Conductor 2：Pure Nickel
• Insulation：Fiberglass Braiding
• Insulation2：Fiberglass Wrapping
• Insulation3：Fiberglass Braided
• Rated Voltage：300V, 600V, 300,500V for Option
• Rated Temperature：300 Deg.C, 350 Deg.C, 400 Deg.C, for Option
• Size：0.25mm2 up to 70mm2
• Usage：Wiring for High Temp Appliance
• Keyword：Fiberglass Insulation Wire
• Keyword2：Fiberglass Braiding Wire
• Keyword3：Fiberglass Coating Wire
• Original：Made in China
• Keyword4：Electrical Wire
• Transport Package：305m Per Roll, Carton Box Outside
• Specification：0.25mm~6mm
• Trademark：fongming
• Origin：China
• HS Code：8544492100
• Production Capacity：5000km,Month

Basic Info.

Model NO. GW04 Material Shape Round Wire Range of Application High Temperature Environment Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Fongming Color as Per Clients′ Request Conductor Nickel Plated Copper Conductor 2 Pure Nickel Insulation Fiberglass Braiding Insulation2 Fiberglass Wrapping Insulation3 Fiberglass Braided Rated Voltage 300V, 600V, 300/500V for Option Rated Temperature 300 Deg.C, 350 Deg.C, 400 Deg.C, for Option Size 0.25mm2 up to 70mm2 Usage Wiring for High Temp Appliance Keyword Fiberglass Insulation Wire Keyword2 Fiberglass Braiding Wire Keyword3 Fiberglass Coating Wire Original Made in China Keyword4 Electrical Wire Transport Package 305m Per Roll, Carton Box Outside Specification 0.25mm~6mm Trademark fongming Origin China HS Code 8544492100 Production Capacity 5000km/Month

Product Description

Product:
Fiberglass Insulated Wire

Description
Name:Fiberglass Insulated Wire
Model:GW04-C
Size:0.5~6mm2
Feature
Ratings Voltage:500V
Rated temperature: -60ºC~+350ºC

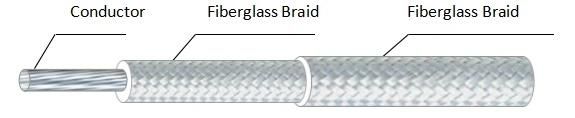

Structure
Conductor:Stranded Nickel
Insulation:Fiberglass Wrapping
Jacket:Fiberglass Braid





Size mm2	Conductor Structure	Insulation Thickness (mm)	Jacket Thickness (mm)	Diameter (mm)
0.5	16/0.2	0.4	0.2	2.1±0.1
0.75	24/0.2	0.4	0.2	2.4±0.1
1.0	32/0.2	0.4	0.2	2.5±0.1
1.5	30/0.25	0.45	0.2	2.9±0.1
2.5	49/0.25	0.45	0.2	3.3±0.2
4	56/0.3	0.45	0.2	3.9±0.2
6	84/0.3	0.45	0.2	4.5±0.2

Packaging&Shipping:

Packing: Rolls , spools or according to customers' requirements.

Shipping: by sea or by air.

Port: Shanghai Port, Ningbo Port or any other ports of China (Mainland)



Company Information:

 Yangzhou Fongming Cable Factory is a professional manufacturer producing universal and special cables & wires. We have gained certificates for China Compulsory Product Certification(CCC), ISD9001 International Quality System Certification, American UL, CSA, SGS and CTI. With an experienced and professional team, our products have been covered to many regions in the world.

    Relying on a wealth of production experience, advanced production equipment, scientific and strict production process and constant pursuit of technological advances to ensure the product quality.

    We will serve for new and existing customers sincerely with good quality, reasonable prices and superior after-service.



Factory Size (Sq.meters):	35000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town, Baoying County ,Yangzhou City,Jiangsu, China
Number of Production Lines:	30
Staff:	148 People
Contract Manufacturing:	OEM Service Offered   Design Service Offered Buyer Label Offered

Certificates



FAQ:

1. Why the price is so low?
You are ordering directly from the factory.

2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3.Can I get some samples?
Yes, we are honored to offer you samples.

4. Can you make the products with my design?

Yes. customization is welcome .
