Outdoor FTP Cat5e LAN Cable with Messenger

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,PE,LSZH
  • Type：Cat5e
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：FTP CAT5e Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, UL, ETL SGS CPR
  • Brand：Risun or OEM
  • Transport Package：305m,Wooden Reel, 1 Reel,CTN.
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000box,Month

Description

Conductor:0.51±0.02mm(24AWG) BC/CCAInsulation:1.00±0.02mm HDPECores/Pairs:8/4Shield:Polyester Tape + Aluminum FoilDrain: 0.4±0.01mm (26AWG) TCSheath: 6.2±0.2mm PVC (PE)Messenger:1.16±0.1mm SteelOptions: Jelly CompoundJacket: UV, FR, RoHS, Reach complied

Mechanical Properties:

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10 MPa

Electrical Properties:

Conductor Resistance≤9.5 Ω/100mResistance Unbalance≤ 2%Insulation Resistance≥5000 MΩ·KMCapacitance ≤5.6 nF/100mImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%

Technical Performance:

   Frequency         Attenuation        RL    Next       PS Next       (MHz)          (dB/100m)       (dB)     (dB)          (dB)           4               4.1        23.0    56.3          53.3           8               5.8        24.5    51.8          48.8         10               6.5        25.0    50.3          47.3         16               8.2        25.0    47.2          44.2         20               9.3        25.0    45.8          42.8         25              10.4        24.3    44.3          41.3       31.25              11.7        23.6    42.9          39.9        62.5              17.0        21.5    38.4          35.4        100              22.0        20.1    35.3          32.3


The Cat5e Cable:

ItemConductorInsulation
(UV,FR,RoHS)		Cores
/
Pairs		ShieldDrain WireSheath
(UV,FR,RoHS,
Reach)		Messenger
U/UTP Cat5e solid 0.50±0.01mm
(24AWG)BC/CCA		0.90±0.02mm
HDPE/PVC		8/4NonNon5.1±0.2mm
PVC(PE,LSZH)		Non
U/UTP Cat5e strand 7/0.20±0.01mm
(24AWG)BC/CCA		0.96±0.02mm
HDPE/PVC		8/4NonNon5.6±0.2mm
PVC(PE,LSZH)		Non
U/UTP Cat5e double jacket 0.50±0.01mm
(24AWG)BC/CCA		0.90±0.02mm
HDPE/PVC		8/4NonNon6.2±0.2mm
PVC+PE/PVC
+PVC/PE+PE		Non
U/UTP Cat5e dual/messenger0.50±0.01mm
(24AWG)BC/CCA		0.90±0.02mm
HDPE/PVC		8/4NonNon5.1±0.2mm
PVC(PE)		1.16±0.1mm
Steel
F/UTP Cat5e solid 0.51±0.02mm
(24AWG)BC/CCA		1.00±0.02mm
HDPE/PVC		8/4Polyester Tape
+Al Foil		0.40±0.01mm
(26AWG)TC		6.2±0.2mm
PVC(PE,LSZH)		Non
F/UTP Cat5e
messenger 		0.51±0.02mm
(24AWG)BC/CCA		1.00±0.02mm
HDPE/PVC		8/4Polyester Tape
+Al Foil		0.40±0.01mm
(26AWG)TC		6.2±0.2mm
PVC(PE)		1.16±0.1mm
Steel
SF/UTP Cat5e solid 0.51±0.02mm
(24AWG)BC/CCA		1.00±0.02mm
HDPE/PVC		8/4Polyester Tape+
Al Foil+≥40%TC		0.40±0.01mm
(26AWG)TC		6.8±0.2mm
PVC(PE,LSZH)		Non

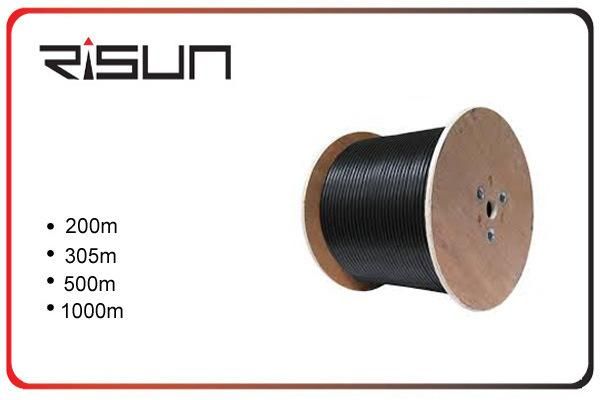

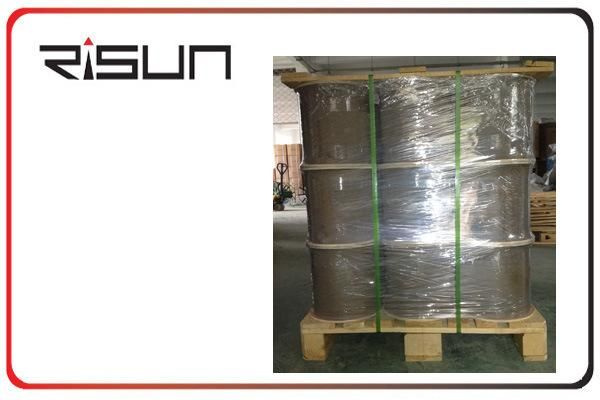

Packing:
Outdoor FTP Cat5e LAN Cable with Messenger
Outdoor FTP Cat5e LAN Cable with Messenger

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.




Outdoor FTP Cat5e LAN Cable with Messenger
Outdoor FTP Cat5e LAN Cable with Messenger
