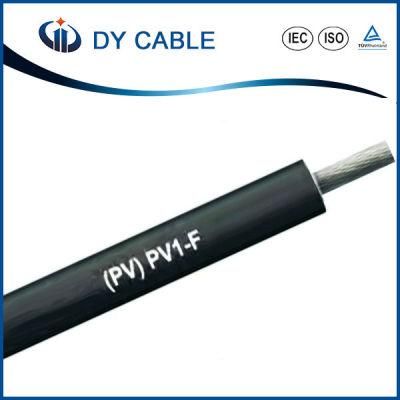

High Quality TUV Certificaiton Solar Cable
Luoyang Sanwu Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication
- Voltage：Low and Medium Voltage Cable
- Current：DC Cable
- Insulation Material：PV
- Sheath Material：PV
- Material Shape：Round Wire
Base Info
- Model NO.：ZS-Solarcable16-5-007
- Wire Core Material：Tinned Copper
- Certification：ISO, CCC, CE, TUV
- Model：Zs-Solarcable16-5-007
- Brand：Dayuan
- Supplier′s Nature：Manufacturer
- Specification Type：4mm2,6mm2,10mm2
- Section -Cross Dia：1.5-35mm2
- Norminal Voltage：Uo,U-600,1000V
- Test Voltage：6500V, 5min, 50Hz
- Temp. Rating：-45°c ~ 125°c Max
- Projected Lifetime：25years
- Features：Low Smoke Zero Halogen
- Transport Package：Wooden Drum, as Request
- Specification：IEC, ISO, GB, TUV, CCC
- Trademark：Da Yuan
- Origin：Henan, China
- HS Code：85444929
- Production Capacity：100000 M,Day
Description
Weight(kg/km)No./Dia Outer dia Thickness Dia Thickness Dia PV1-F/Round 2x1.5 30/0.25 1.60 0.75 3.10 1.00 8.20 98.6 PV1-F/Round 2x2.5 49/0.25 2.10 0.75 3.60 1.00 9.20 131.2 PV1-F/Round 2x4 52/0.3 2.60 0.75 4.10 1.00 10.20 171.0 PV1-F/Round 2x6 78/03 3.20 0.75 4.70 1.00 11.40 225.8 PV1-F/Flat 2x1.5 30/0.25 1.60 0.75 3.10 0.80 4.7x9.5 76.2 PV1-F/Flat 2x2.5 49/0.25 2.10 0.75 3.60 0.80 5.2x10.5 100.4 PV1-F/Flat 2x4 52/0.3 2.60 0.75 4.10 0.80 5.7x11.5 130.7 PV1-F/Flar 2x6 78/0.3 3.20 0.75 4.70 0.80 6.3x12.7 172.7
simple roll, plastic drum/reel, wooden pallet/box, cartons or customized as your requirement
About Asian Sun Group(Dayuan Cable)
1: Group with seven sub-companies
2: Factory about 200,081 square meters;
3: 800 staffs and 40 engineers, 11 production lines;
4: production capacity: 100,000m/day.
Our Products
Mainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications
Our service
1) Inquiries are answered within 12 hours and OEM is welcome.
2) 11 production lines, experienced QC to control the quality of kinds of cables.
3) CCC Certificated, and can provide CE, RoHS and SGS certificates before exporting.
4) Grown from a small factory with annual turnover of $50,000,to over$50,000,000 during 10years.
5) Ship your order immediately after contracted. We ship worldwide.
6) 800 staffs and 40 engineers, we all glad to provide you best service.
Welcome You Visit Our Factory!
Please Contact Us
Zach Sun
Department sale manager
International Trade Department
Luoyang Asian Sun Industrial Group Co., Ltd
=================================
Tel: +86-379-69991587
Mobile: + 86-18336783860
Web: http://dycable.en.made-in-china.com
Alibaba Showroom: http://dycable.en.made-in-china.com
=================================
simple roll, plastic drum/reel, wooden pallet/box, cartons or customized as your requirement
About Asian Sun Group(Dayuan Cable)
1: Group with seven sub-companies
2: Factory about 200,081 square meters;
3: 800 staffs and 40 engineers, 11 production lines;
4: production capacity: 100,000m/day.
Our Products
Mainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications
