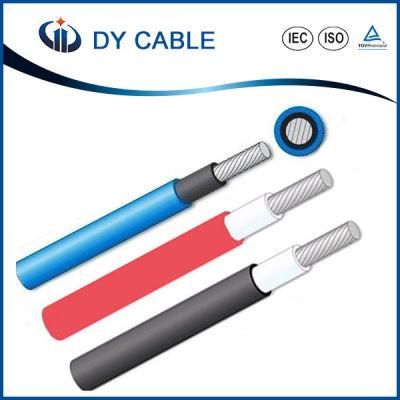

2.5mm2 4mm2 6mm2 Tinned Copper Wire PV Solar Cables

Luoyang Sanwu Cable Co., Ltd.
  • Application：Construction
  • Material Shape：Round Wire
  • Sheath Material：Xlpo
  • Insulating Material：Xlpo
  • Conductor Type：Stranded
  • Brand：Dayuan

Base Info

  • Model NO.：AN-PV-008
  • Certification：TUV
  • Wire Core Material：Tinned Wire
  • Type：Solar PV Cable
  • Conductor：Tinned Copper
  • Standard：2pfg 1169,08.07
  • Rated Voltage：AC 0.6,1kv;DC 1.8kv
  • Ambient Temperature：-40~90 Degree
  • Flame Test：IEC 60332-1
  • Manufacturer Experience：Since 2006
  • Installed Condition：Solar System, Solar Power Station
  • Color：Red, Black or as Your Requirement
  • Factory Area：200, 081m2
  • Transport Package：Wooden Drum,Rolls
  • Specification：1.5mm2-300mm2
  • Trademark：DAYUAN
  • Origin：Luoyang, Henan, China
  • HS Code：85444929
  • Production Capacity：100, 000m,Day

Description

Luoyang Asian Sun Industrial Group Co., LtdEastern Industry Park, Yichuan County, Luoyang City, Henan Province, China.Mobile: 86-186-25990702  | Tel: 86-379-69991591 | Contact: Angela Sun  Single Core Photovoltaic CablesTypeSectional area
mm2ConductorInsulationJacketWeight
kg/kmNo./DiaOuter diaThicknessDiaThicknessDiaPV1-F1.530/0.251.60 0.75 3.10 0.80 4.70 37.4 PV1-F2.549/0.252.10 0.75 3.60 0.80 5.20 49.5 PV1-F452/0.32.60 0.75 4.10 0.80 5.70 64.6 PV1-F678/0.33.20 0.75 4.70 0.80 6.30 85.6 PV1-F1084/0.44.70 0.75 6.20 0.80 7.80 142.1 PV1-F16126/0.45.80 0.75 7.30 0.80 8.90 197.7 PV1-F25196/0.47.60 0.75 9.10 0.80 10.70 290.1 PV1-F35276/0.49.10 1.20 11.50 1.40 14.30 455.9 PV1-F50396/0.411.30 1.40 14.10 1.40 16.90 633.6 PV1-F70360/0.512.80 1.40 15.60 1.40 18.40 841.0 PV1-F95475/0.515.00 1.60 18.20 1.60 21.40 1111.2 PV1-F120608/0.514.00 1.60 17.20 1.60 20.40 1330.0 PV1-F150756/0.519.00 1.80 22.60 1.80 26.20 1713.4 PV1-F185925/0.521.00 2.00 25.00 2.00 29.00 2097.2 PV1-F2401221/0.523.80 2.20 28.20 2.20 32.60 2729.6           Type
AWGSectional area
mm2ConductorInsulationJacketWeight
kg/kmNo./DiaOuter diaThicknessDiaThicknessDia233.626650.2548.60.7510.10.811.7378.88 326.945320.2547.550.759.050.810.65310.58 421.154200.2546.8 0.758.30.89.9254.08 613.32660.2545.4 0.756.90.88.5173.60 88.3671680.2544.3 0.755.80.87.4120.81 105.2611050.2543.4 0.754.90.86.585.42 123.31480.32.4 0.753.90.85.560.60 142.08410.2541.9 0.753.40.8545.04           Two Cores Photovoltaic CablesTypeSectional area
mm2ConductorInsulationJacketWeight
kg/kmNo./DiaOuter diaThicknessDiaThicknessDiaPV1-F/Round2*1.530/0.251.60 0.75 3.10 1.00 8.20 98.6 PV1-F/Round2*2.549/0.252.10 0.75 3.60 1.00 9.20 131.2 PV1-F/Round2*452/0.32.60 0.75 4.10 1.00 10.20 171.0 PV1-F/Round2*678/0.33.20 0.75 4.70 1.00 11.40 225.8 PV1-F/Flat2*1.530/0.251.60 0.75 3.10 0.80 4.7*9.576.2 PV1-F/Flat2*2.549/0.252.10 0.75 3.60 0.80 5.2*10.5100.4 PV1-F/Flat2*452/0.32.60 0.75 4.10 0.80 5.7*11.5130.7 PV1-F/Flat2*678/0.33.20 0.75 4.70 0.80 6.3*12.7172.7
Company Information
Each time we receive an big order with different standards we will make a meeting about the production process in order to make sure the quality and delivery time.
2.5mm2 4mm2 6mm2 Tinned Copper Wire PV Solar Cables

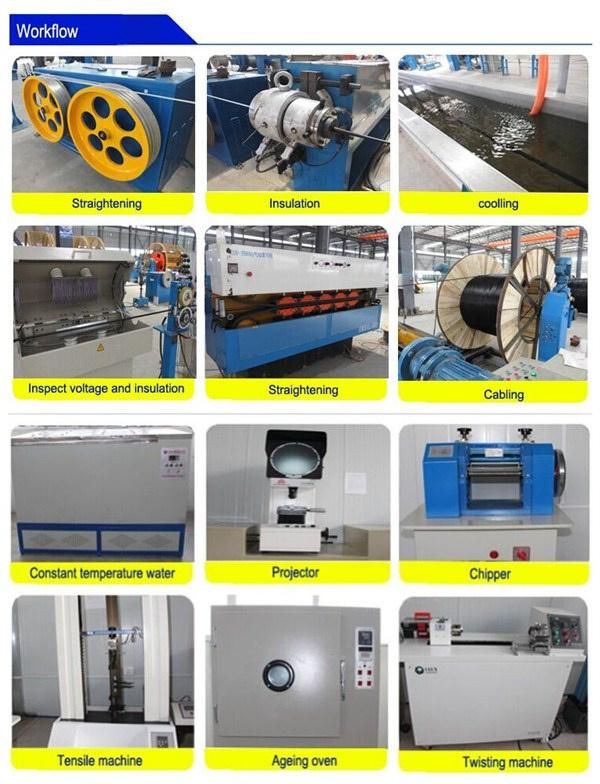

Inspection Machine
2.5mm2 4mm2 6mm2 Tinned Copper Wire PV Solar CablesCertifications
ISO9001:2008, OHSAS, CCC, TUV Certifications and SECRI(in Shanghai) Test Report:
2.5mm2 4mm2 6mm2 Tinned Copper Wire PV Solar Cables
Packaging & Shipping
2.5mm2 4mm2 6mm2 Tinned Copper Wire PV Solar CablesOur Services
Luoyang Asian Sun Industrial Group Co., Ltd, a professional wires and cables manufacturer for 6 years in China. Asian Sun attends International Exhibitions every year, we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) and solar pv cables etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.

1. Factory: 200,081 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, CQC, ISO9001:2008;
4. Payment terms: T/T, L/C, O/A;
5. Guarantee: 20 years;
6. QC inspection: Strict inspection before delivery;

After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
