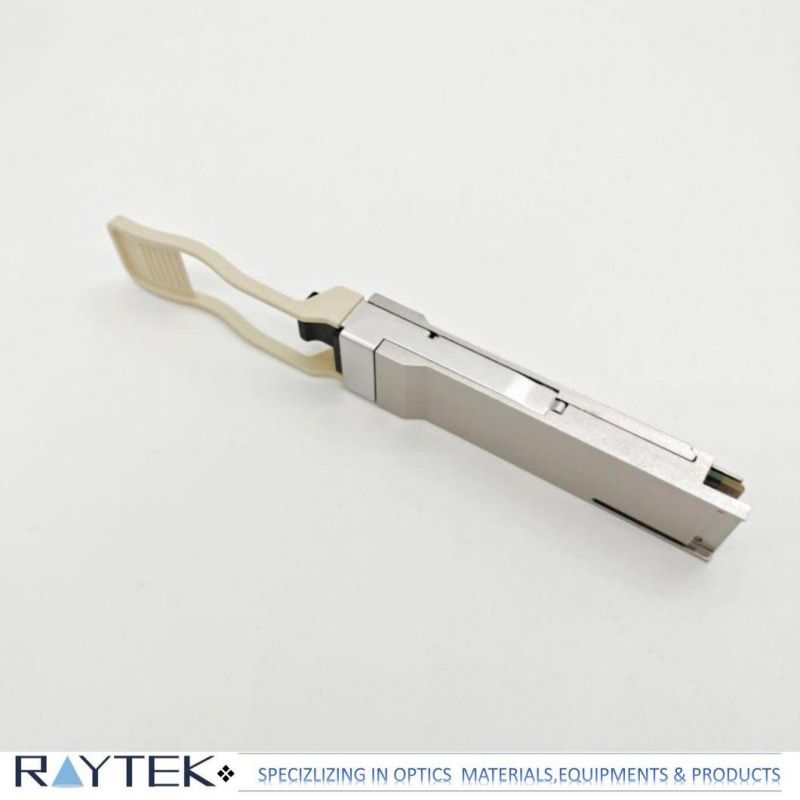

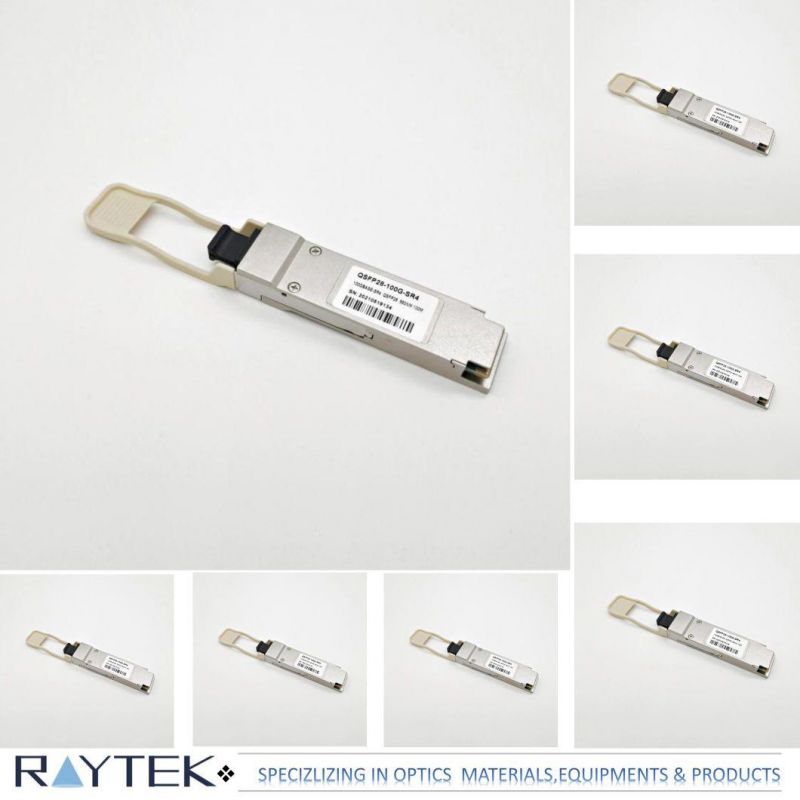

100g Qsfp28 Sr4, MPO Connector, 70m on Om3/Optical Fiber Connector
Shanghai Rui Tai Photoelectric Technology Co., Ltd.- Application：Communication, Art, Sensor, Medicine, Probe, Sensing
- Type：Single-Mode & Multi-Mode
- Connection Structure：All Models
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：>10000N
Base Info
- Model NO.：RAY-OF2017#
- Core：Single-Core,Multi-Core, Double-Core
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Raytek
- Sheath Material：Customized
- Power Consumption：3.5W
- Supply Current：1.06A
- Transceiver Power-on Initialization Time：2000ms
- Data Dependent Pulse Width Shrinkage (Dd：0.07ui
- Transport Package：1PCS Per Box
- Specification：custom as per demand
- Trademark：Raytek
- Origin：China
- HS Code：8536700000
- Production Capacity：100, 000, 0PCS Per Year
Description
TransmitterCenter Wavelength λC 840 850 860 nm 1 RMSSpectralWidth λrms - 0.65 nm 1 AverageLaunchPower,eachlane PAVG -8.4 +2.4 dBm OpticalModulationAmplitude(OMA) POMA -6.4 +3 dBm 1 DifferenceinLaunchPowerbetween
anytwolanes
Ptx,diff
4.0
dB LaunchPowerinOMAminus
TransmitterandDispersionPenalty
(TDP),eachLane
OMA-TDP
3.5
dBm
1ExtinctionRatio ER 2 dB
Digital Diagnostic Functions:
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.Parameter Symbol Min Max Unit NotesTemperaturemonitorabsoluteerror DMI_Temp -3 3 degC Overoperatingtemp Supplyvoltagemonitorabsoluteerror DMI _VCC -0.1 0.1 V Fulloperatingrange ChannelRXpowermonitorabsoluteerror DMI_RX -3 3 dB Perchannel ChannelBiascurrentmonitor DMI_Ibias -10% 10% mA Perchannel Temperaturemonitorabsoluteerror DMI_Temp -3 3 degC Overoperating
temp
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optical transceiver products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
