• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：RV BV
• Brand：Yifang Cable
• Insulation：Available as Per Requirement

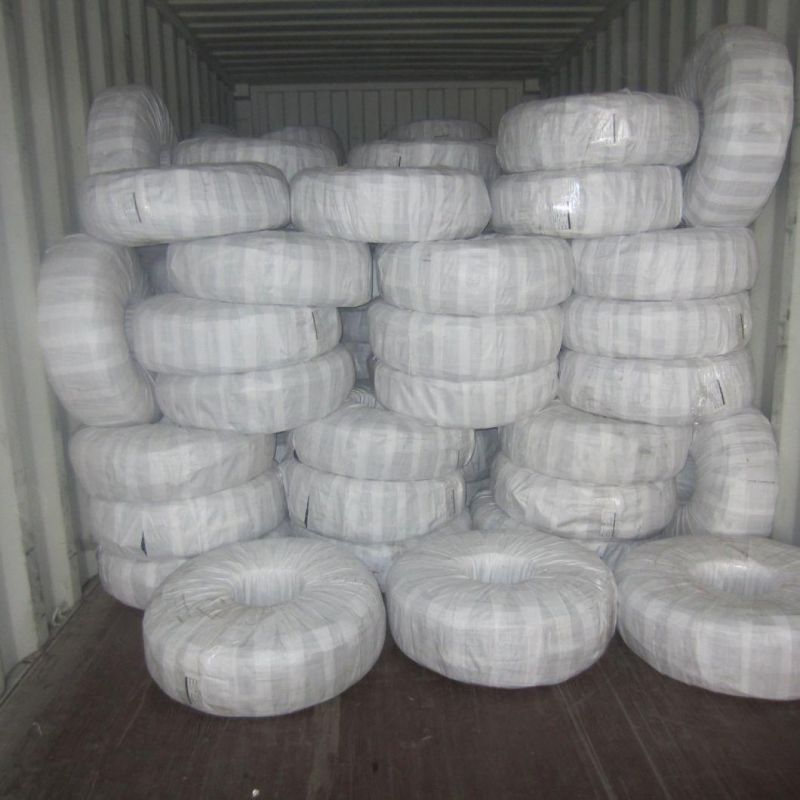

• Transport Package：Coil or Drum
• Specification：mm
• Trademark：Yifang cable
• Origin：Henan Zhengzhou
• HS Code：8544492100
• Production Capacity：10000 Kilometer, Year

Basic Info.

Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model RV BV Brand Yifang Cable Insulation Available as Per Requirement Transport Package Coil or Drum Specification mm Trademark Yifang cable Origin Henan Zhengzhou HS Code 8544492100 Production Capacity 10000 Kilometer/ Year

Product Description

VVG VVG-P cable 3*2.5 for 0.66 kV and 1 kV

VVG is one of the most popular conductors which is used to install wiring in the lodgments, electric power stations and industrial objects, in distributive and illuminative equipment and in different industrial devices and machines. VVG is intended for electric energy transmission and distribution at nominal alternated voltage 0,66 kV and 1 kV and frequency of 50 Hz

Structure :
1. Core - aluminum, round or sector form with cross-sectional area from 1,5 mm² - 240 mm²;
2. Insulation - insulated PVC plasticate;
3. Sheath - PVC plasticate;
4. Quantity of cores - one insulated or stranded from 2-5 cores.

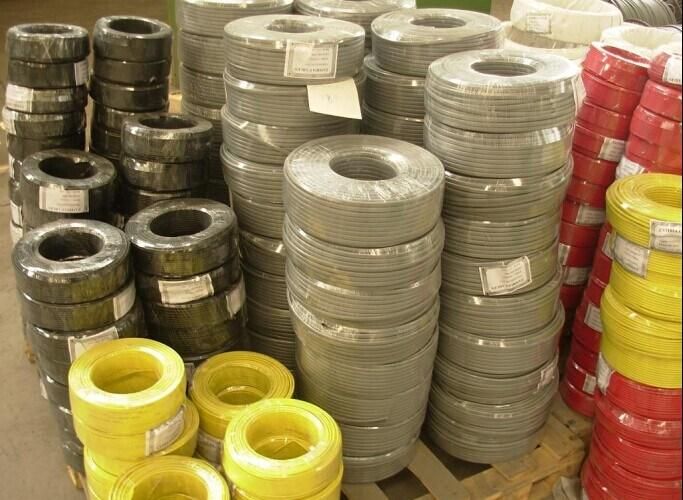

According to its shape, including flat wire, round wire, etc. With different colors.

Accoding to its core number, including single core wire, multi-core wire, etc. With different colors.

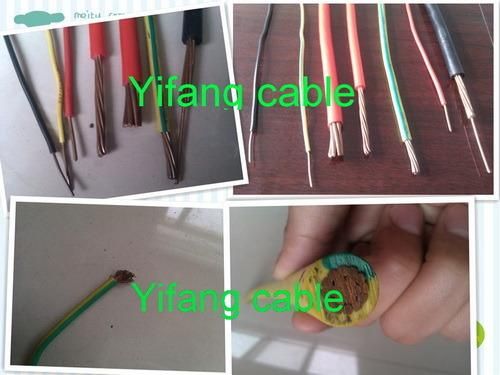

Type	Name
BV	copper conductor pvc insulation electric wire
BLV	Aluminum conductor pvc insulation electric wire
BVR	copper conductor pvc insulation flexible electric wire
BVV	copper conductor pvc insulation pvc shealthed round electric wire
BVVR	copper conductor pvc insulation pvc shealthed parellel electric wire
BLVVR	Aluminum conductor pvc insulation pvc shealthed round electric wire



Type	Rated Voltage	Number Of Cores	Nominal Cross Section Of Conductor(mm2)
BV	450/750	1	0.75~400
BLV	450/750	1	1.5~400
BVR	450/750	1	0.75~400
BVV	450/750	1~5	0.75~35
BLVV	450/750	1~5	2.5~35
BVVB	450/750	2,3	0.75~6
BLVVB	450/750	2,3	0.75~6
RVS	300/500	2	0.3~6
RVV	300/500	2~10,12,14,16,19,24	0.3~6
RVVP	300/500	2~10,12,14,16,19,24	0.3~6

Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.


Our certificate


FAQ

1.Q:Are you a factory or trading company?
 A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
 A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
 A: Contact me on below,Determin sample and address for shipping.


4.Q:Have you ever supplied cables to our country?
 A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.

7.Q:How long is your delivery time?
 A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
