OTDR Launth Cable Box
Nanjing Tianxingtong Electronic Technology Co., Ltd.- Type：Visual Fault Locator
- Condition：New
- Weight：0.75kgs(Without Fiber)
- Fiber Connector：FC, LC, Sc, ST,PC or APC
- Transport Package：CTN, Hard Carrying Case
- Specification：CE, SGS, ISO9001,
Base Info
- Trademark：SKYCOM
- Origin：Nanjing, China
- Production Capacity：5000sets,Year
Description
Introduction

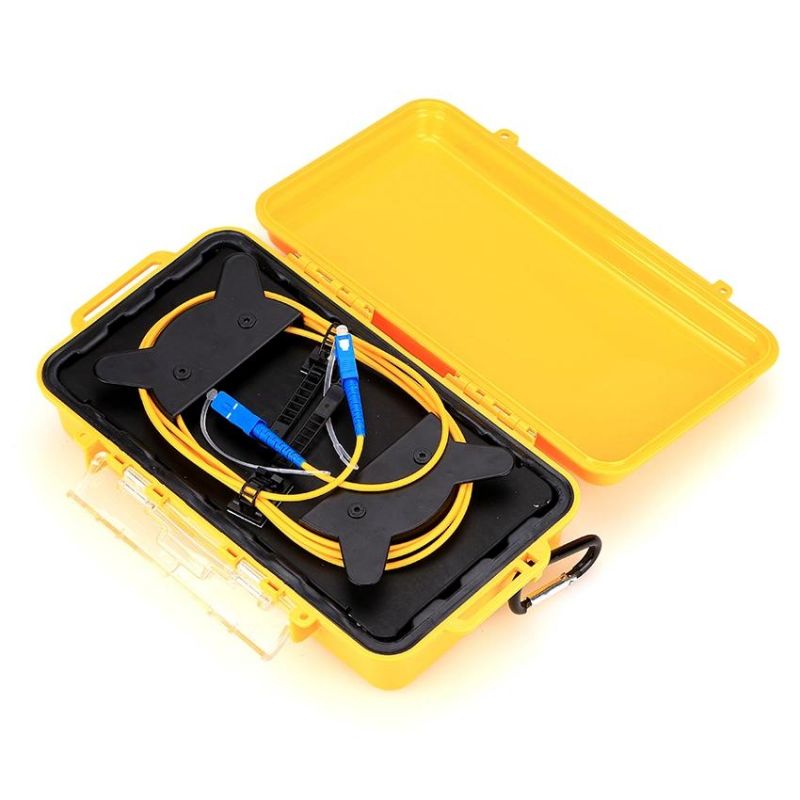

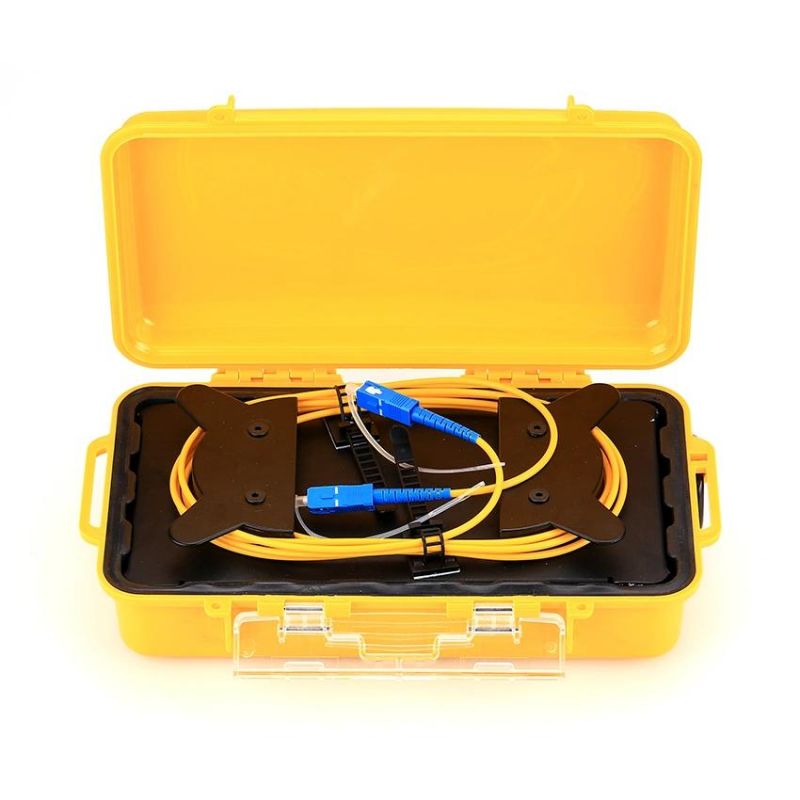

Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflect meters (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in many different configurations and fiber lengths.
Feature:
Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
Compound Latch for positive seal and easy opening with locking feature.
Nonmetal construction will not dent, corrode, or conduce electricity.
Water and dust prove allowing the unit to be taken into almost any environment
Case can house up to 2,000 meters of fiber
Auto Purge Valve for changes in altitude and temperature
Specifications:
Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflect meters (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in many different configurations and fiber lengths.
Feature:Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
Compound Latch for positive seal and easy opening with locking feature.
Nonmetal construction will not dent, corrode, or conduce electricity.
Water and dust prove allowing the unit to be taken into almost any environment
Case can house up to 2,000 meters of fiber
Auto Purge Valve for changes in altitude and temperature
Specifications:
| Length | 500M,1KM, 2KM....(customize) |
| Application | FTTH FTTB FTTX Network |
| Fiber Type | Single mode, Multimode |
| Fiber connector | FC, LC, SC, ST/PC or APC |
| Length x Width x Height | 9.37" x 5.56" x 2.62" (238x141x66mm) |
| Material | SR Polypropylene |
| Weight | 0.75kgs(without fiber) |
| Operating temperature | -40° to +55°C |
| Typical Loss | < 0.5dB @ 1310nM for 1000 meters |
