FTP CAT6 4X2X23AWG 250MHz/Computer Cable/ Data Cable/Network Cable/SFTP CAT6
Zhejiang Kuayue Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable, Long Distance Symmetric Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Cat 6
- Material Shape：Flat Wire
- Conductor Type：Solid
Base Info
- Model NO.：lan cable
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Model：4X2X23AWG
- Brand：Hanli
- Model No：CAT6 1000 FT 23 AWG,UL,Cmr,UTP,Bare Copper
- Transport Package：305m,Box
- Specification：4x2x0.57cu
- Trademark：hanli
- Origin：Zhejiang
- HS Code：8544491100
- Production Capacity：3000000m,Month
Description
Product Description
1.Conductor :0.56BC,0.57BC or CCA
2,insulation:HDPE ID:0.1.13mm

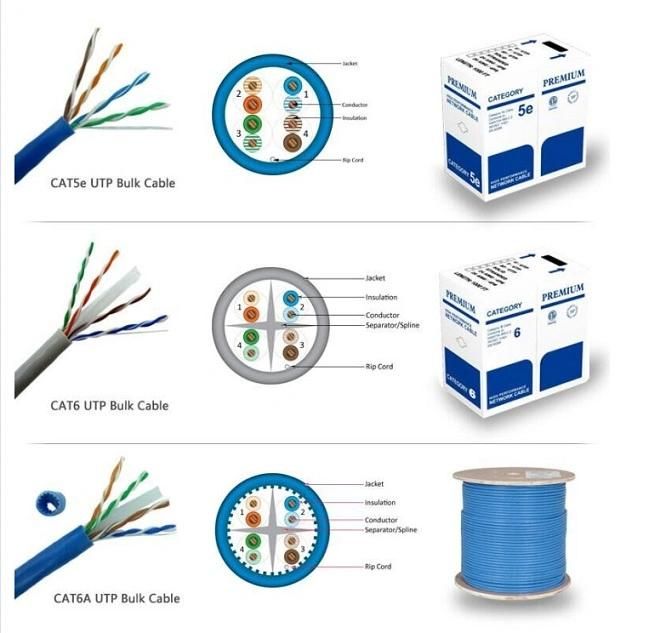

3,Twisted pairs.
4,Shield: PET film and aluminum foil shield.
5,Deain wire: Tinned copper ,CU, CCS or CCA drain wire
6,jacket :PVC,LZSH or PE
7,Nominal diameter: 7.8±0.2mm
8,Average thickness: 0.6mm

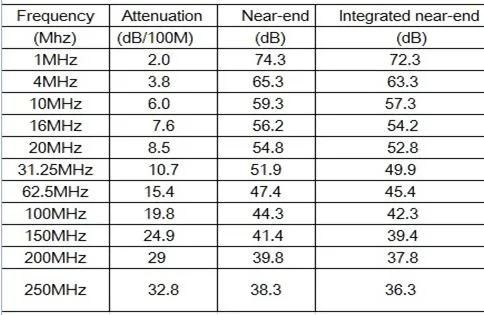

9,Frequency: 250MHz
10,Resistance Unbalance,maximum : 4.5%
11,Mutual Capacitance :5.6 nF/100 m @ 1 kHz
12,Dielectric Test: DC 2500V/2min at 20ºC
13. Standard: international ISO/IEC 11801; USA ANSI/TIA/EIA-568B.
14,Operating temperature range: -20 to 75°C
15,305meters pull box or 500meters wooden drum
16,OEM order is welcome

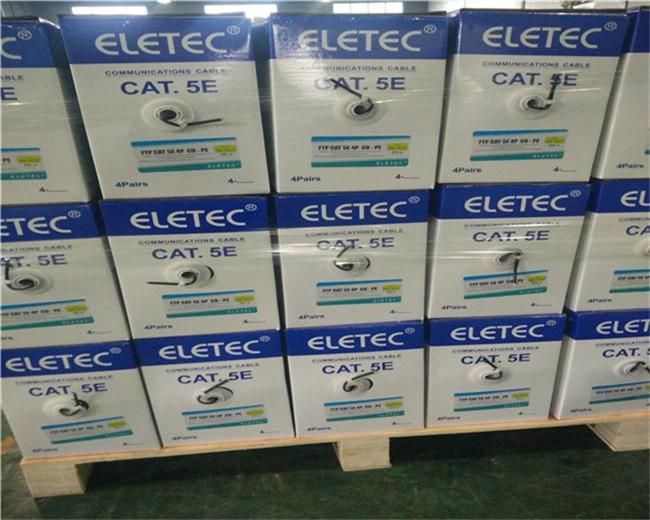

Packing ways:
100m: PE protective layer, 5 roll per carton box

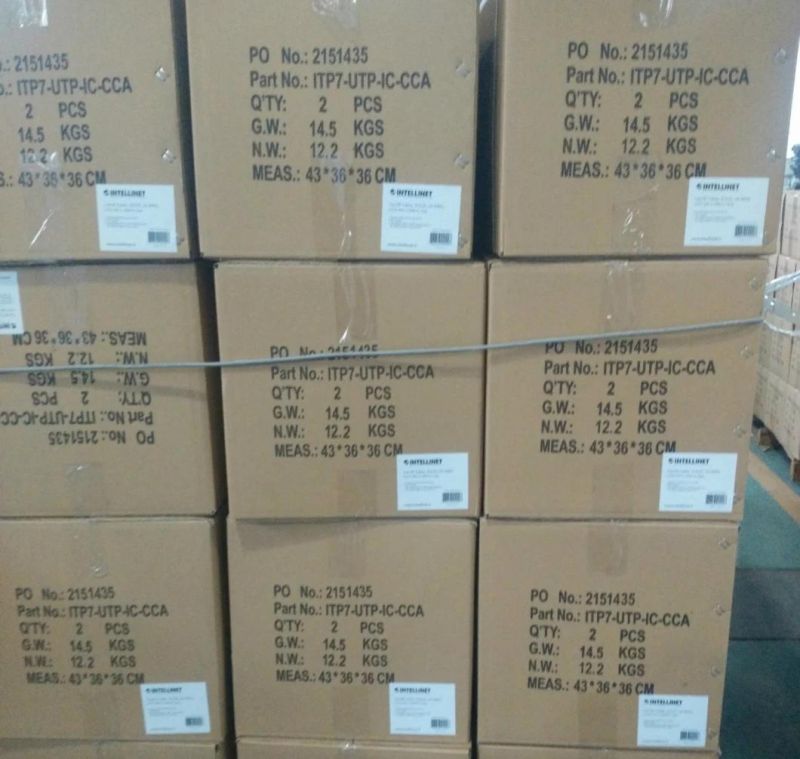

305m: one roll in one carton box, two carton boxes in one master carton

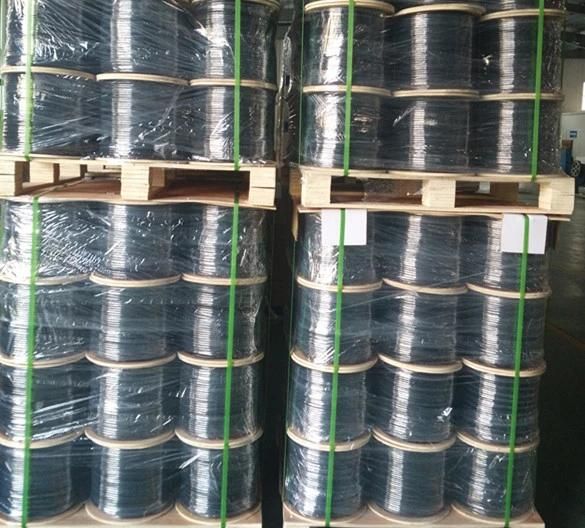

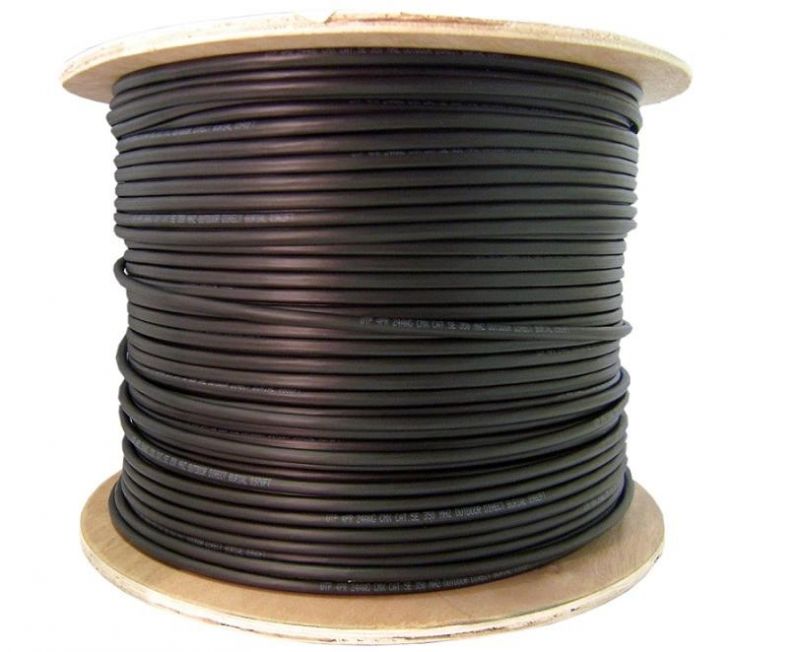

500m: wooden roll package, carton box as outer package
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
