0.6/1kv U 1000 Arvfv Cable (HGE) 3X240+95mm2
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：U 1000 ARVFV 3X240+95mm2
- Wire Core Material：Aluminum Wire
- Certification：ISO, CCC, CE, UL
- Model：YJLV22
- Brand：Yifang Cable
- Rated Voltage：0.6,1kv
- Conductor：Aluminum
- Sheath Color：Black
- Cores：3+1
- Section Area：3X240+95mm2
- Country Exported：West Africa:Togo,Cote Diva,All Over The World
- Other Sizes：3X150+70,4X35,3X95+50
- Standard：IEC 60502-1 or NFC
- Armour：Double Steel Tape Armour

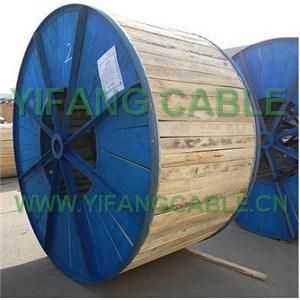

- Transport Package：Wooden Steel Drum
- Specification：2.2drum
- Trademark：Yifang Cable
- Origin：China
- HS Code：8544601200
- Production Capacity：500km Per Month
Description

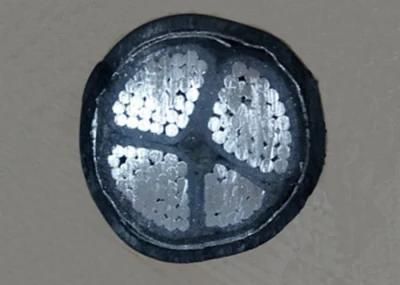

Câble ARVFV(HGE) 3x240mm²+95mm² Alu Item Description Unit Data 1 Standard IEC 60502-1 2 Size 3x240+95mm2 3 Rated Voltage kV 0.6/1 4 Phase core Cores 3 Norminal Cross Sectional Area mm2 240 Conductor Compact sector aluminum Standing No.Of Wire no.s Min.30 Max.DC Resistance at 20ºC Ω/km 0.125 Insulation XLPE Norminal Thickness mm 1.7 5 Earth core Cores 1 Norminal Cross Sectional Area mm2 95 Conductor Compact sector aluminum Standing No.Of Wire no.s Min.15 Max.DC Resistance at 20ºC Ω/km 0.32 Insulation XLPE Norminal Thickness mm 1.1 6 Filler(if any) PP 7 Wrapping tape Non-woven clothing tape 8 Inner Sheath PVC Norminal Thickness mm 1.6 9 Armor Steel tape Norminal Thickness 0.5 10 Outer Sheath PVC Norminal Thickness mm 2.8 11 Overall diameter mm 57.8 12 Approx.Weight kg/km 4765
