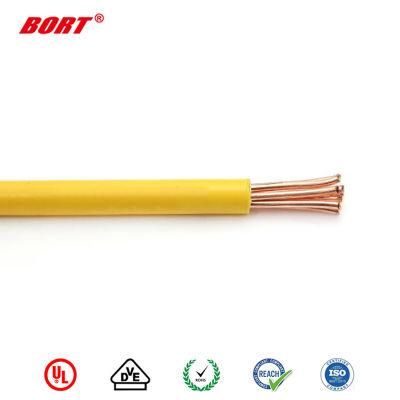

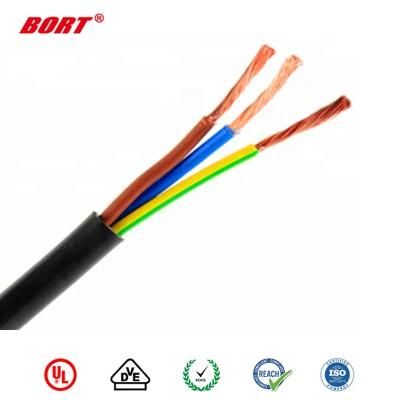

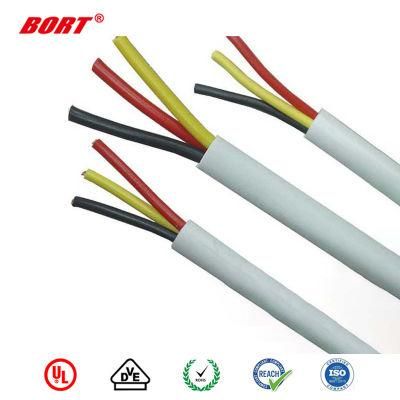

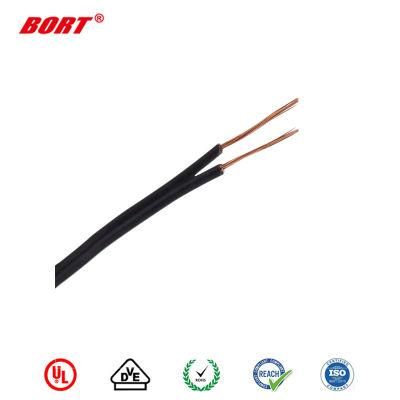

ETFE Coated Insulated Audio and Video Internal Wire

B&T (Zhangzhou) Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Insulation Material：ETFE
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant

Base Info

  • Model NO.：UL10126
  • Certification：ISO9001, UL, RoHS
  • Rated Temperature：80 ºC
  • Rated Voltage：12-14V
  • According to：UL Subject758, UL1581, C22.2
  • Test：Passes UL VW-1 & CSA FT1 Vertical Flame Test
  • Performance：for General Purpose Internal Wiring of Appliance
  • Conductor：Stranded, Tinned or Bare Copper Conductor
  • Capacity：300, 000km Annual
  • Color：Could Be Customized Color
  • Delivery Time：7-15days
  • Package：Coil or Spool Packing
  • Transport Package：610feet in Roll
  • Specification：2pin 20 AWG 2 Conductors
  • Trademark：B&T
  • Origin：Xiamen, Fujian
  • HS Code：8544492100
  • Production Capacity：300, 000km

Description

Rated Temperature150ºC  InsulatedETFE insulationStandardOverall Diameter
(mm)Nom.Min.Nom.Tol.1037/0.423.54 2.94 0.40 0.33 3.75 ±0.151237/0.3745.64 2.62 0.40 0.33 3.42 ±0.151419/0.3618.96 1.85 0.25 0.23 2.35 ±0.101619/0.28714.60 1.50 0.25 0.23 2.00 ±0.101819/0.23523.20 1.18 0.25 0.23 1.70 ±0.102019/0.1936.70 0.95 0.25 0.23 1.45 ±0.102219/0.1559.40 0.76 0.25 0.23 1.26 ±0.10247/0.2094.20 0.60 0.25 0.23 1.10 ±0.10267/0.16150.00 0.48 0.25 0.23 1.00 ±0.10287/0.127239.00 0.38 0.25 0.23 0.90 ±0.10301/0.254361.00 0.254 0.25 0.23 0.75 ±0.10ETFE Coated Insulated Audio and Video Internal WireETFE Coated Insulated Audio and Video Internal WireETFE Coated Insulated Audio and Video Internal WireETFE Coated Insulated Audio and Video Internal WireETFE Coated Insulated Audio and Video Internal WireETFE Coated Insulated Audio and Video Internal WireETFE Coated Insulated Audio and Video Internal WireETFE Coated Insulated Audio and Video Internal Wire
