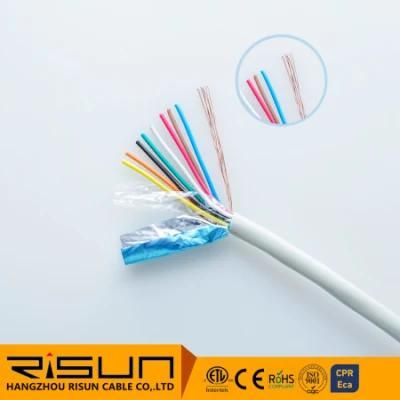

High Performance Bulk Cable FTP Cat5e LAN Cable 1000FT

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,PE,LSZH
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：FTP Cat5e
  • Wire Core Material：CCA
  • Certification：CE, ISO, RoHS, ETL SGS CPR
  • Model：FTP Cat5e
  • Brand：Risun or OEM
  • Conductor：24AWG Bare Copper
  • Insulation：0.97HDPE
  • Shield：Pet,Al Foil
  • Drain：Tc
  • Jacket：PVC,PE,Lszh
  • UV, Jelly, Fr：Available
  • Color：Multiple-Choice
  • Transport Package：305m,Wooden Reel,CTN
  • Specification：ETL, CE, ROHS, ISO9001
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

ConstructionConductor24AWG (Solid or Strand)  CU/CCA/CCSInsulationHDPE 0.95±0.06mmCores/Pairs8/4Drain Wire26AWG Tinned CopperShieldPolyester Tape/ Al FoilSheath6.20±0.1mm PVC (FR,RoHS,UV)/ LSOH / PE Mechanical PropertiesElongationMin. 300%Temperature Range-20 up to +75°CTensile strengthMin. 1.68Kg/mm2 Electrical Properties (at 20°C)Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCpacitance UnbalanceMax. 330pF/100mImpendance100±15 ohmSpark Test2000VVelocity Propagation67% Technical Data
 AttenuationRLNextPS Next(MHz)(db/100m)(db)(db)(db/100m)1MHz2.02065.363.54MHz4.12356.354.28MHz5.824.552.450.510MHz6.62551.349.216MHz8.22549.347.420MHz9.32548.846.925MHz10.42445.343.431.25MHz11.72343.041.862.5MHz17.02139.237.2100MHz22.02036.334.4155MHz28.11935.533.6200MHz32.41931.829.9240MHz36.01830.628.7300MHz41.01829.227350MHz44.91728.025.6
