• Certification：CE, ISO, RoHS, CCC, ETL,CPR
• Brand：Risun or OEM
• Insulation：HDPE
• Transport Package：305m,Pull Box
• Origin：Hangzhou, Zhejiang, China
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Certification CE, ISO, RoHS, CCC, ETL,CPR Brand Risun or OEM Insulation HDPE Transport Package 305m/Pull Box Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

Product Description

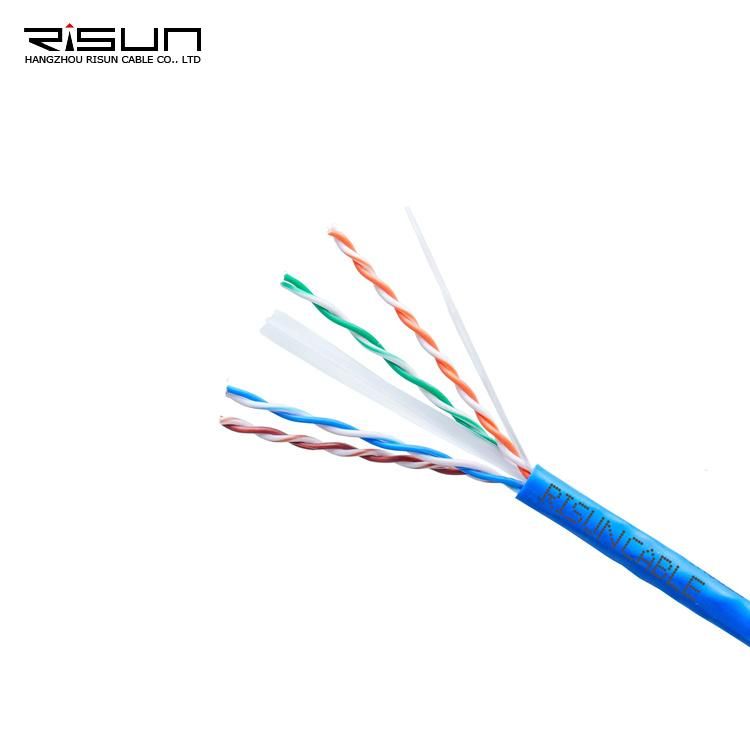

construction:

conductor	0.53mm  cu
insulation	hdpe 0.95±0.02mm
sheath	5.6±0.1mm lszh
cores/pairs	8/4

mechanical properties:

elongation	min. 300%
temperature range	-20 up to +75° c
tensile strength	min 1.68kg/mm²

electrical properties:

resistance	max. 9.38 ohm/100m
resistance unbalance	max. 2%
insulation resistance	150 ohm/km
mutual capacitance	max. 5600pf/100m
capacitance unbalance	max. 330pf/100m
impedance	100+/-15 ohm
spark test	2000v
velocity of propagation	67%

 Packing

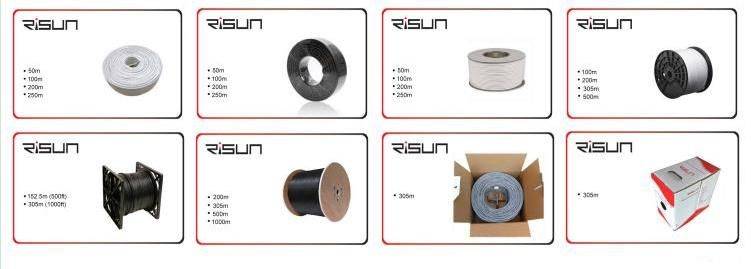

1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.

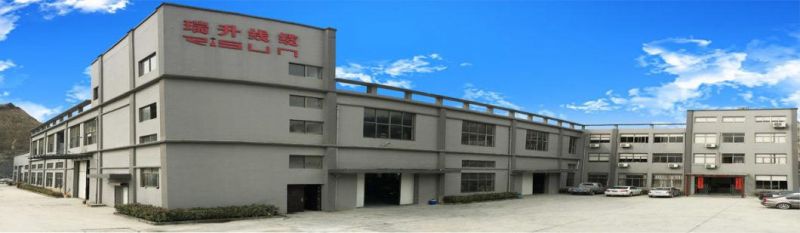

Company Profile

Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.

95% of our goods for the export market. 15 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world. Our main cables include CAT5E, CAT6,CAT6A, cat7, multiple cores (pairs) of alarm cable and telephone cable, audio cable, Jumper wire, KNX Cable, RG59, RG6, RG11, RG58/U, KX6, RG213 etc.

in the past 15 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification. We will be your trusted partner.





process of production:
Welcome to RISUN,we will be happy to serve you!
