73.87 mm2 CCS 40% Conductivity 7#7AWG Strand Copper Clad Steel Wire

Henan Hongda Cable Co., Ltd.
  • Type：Bare
  • Conductor Type：Stranded
  • Application：Underground
  • Conductor Material：Copper Clad Steel
  • Sheath Material：No
  • Insulation Material：Bare

Base Info

  • Model NO.：CCS 40%
  • Material Shape：Round Wire
  • Range of Application：Power Transmission Line, for Electricity Line
  • Certification：ISO9001, CCC, SGS
  • Brand：Hongda
  • Material：Copper Clad Steel
  • Diameter：16-300 mm2
  • Conductivity：20%, 25%, 30%, 40%
  • Transport Package：1000m Per Export Drum
  • Specification：2awg, 4awg, 6awg, 7awg
  • Trademark：Hongda
  • Origin：China
  • HS Code：7217309000
  • Production Capacity：3000km,Month

Description

Nominal cross-section mm2Structure No./mmActual area mm2Rated strength kNDC Resistance,Ω/kmStructure weight kg/km   40HS30HS30EHS4030304032019/4.62318.7122.825.230.20.140.18726342660.825019/4.12252.7118.920.825.20.1760.1762087.92110.220019/3.67200.4515.617.120.80.2220.2971656.31674.216019/3.26158.9712.914.117.10.2810.3741313.61327.212019/2.91126.0610.611.613.90.3540.4711041.71052.61507/5.19148.0610.111.213.30.30.41218.71231.51207/4.62117.428.49.2811.20.3780.504966.41976.53907/4.1293.0976.9957.669.280.4770.636766.25774.29707/3.6773.8715.756.317.660.6010.802608.06614.46607/3.2658.5614.745.196.30.7591.011482.02487.07507/2.9146.4393.914.265.120.9561.275382.16386.18357/2.5936.8263.233.524.171.2061.6303.14306.26503/4.6250.3223.84.25.380.8811.174413.41417.73403/4.139.9033.153.464.421.1111.481327.84331.26303/3.6731.6452.62.853.591.4011.867259.39262.66253/3.2625.0972.152.352.851.7662.354206.11208.34203/2.9119.9031.771.932.332.2272.969163.55165.19153/2.5915.7811.461.591.892.8083.744129.62130.99103/2.059.9290.78  4.465 81.55182.414

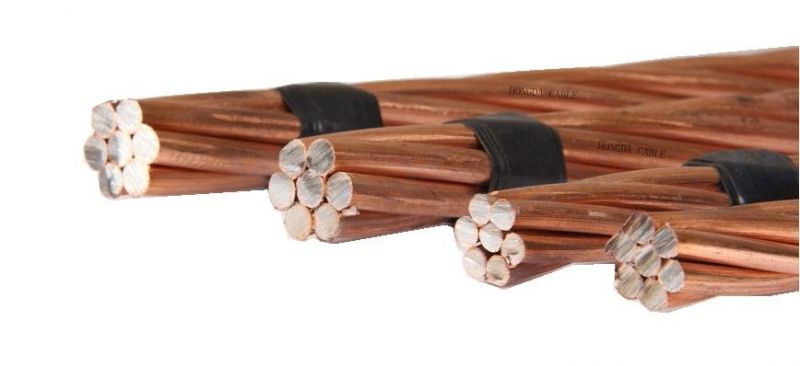

73.87 mm2 CCS 40% Conductivity 7#7AWG Strand Copper Clad Steel Wire

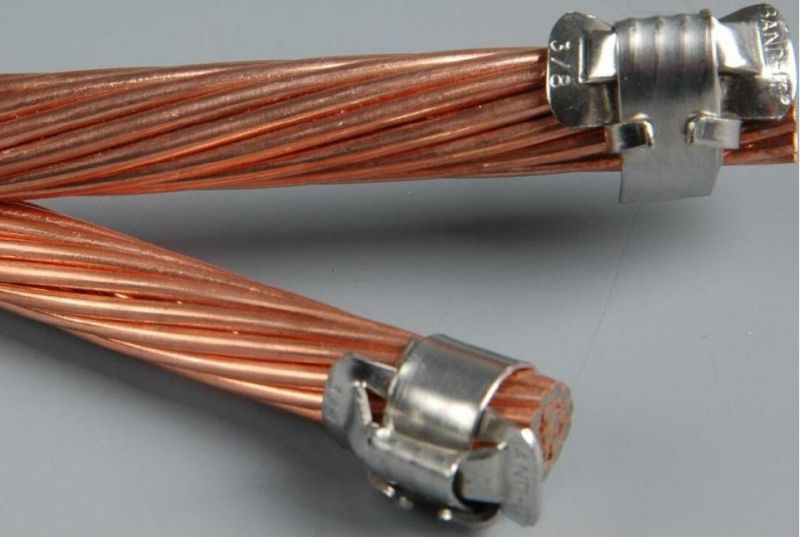

73.87 mm2 CCS 40% Conductivity 7#7AWG Strand Copper Clad Steel Wire


PRODUCT APPLICATION

Copper Clad Steel Conductor is used for earthing system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.

PRODUCT PACKING

All of our products are with strong packing and free of charge, we also can provide packing according to customer's requirement.

73.87 mm2 CCS 40% Conductivity 7#7AWG Strand Copper Clad Steel Wire
