Triple Cable Sets for Pwht

Suzhou Guansheng Electric Appliances Co., Ltd.
  • Type：Insulated
  • Conductor Type：Solid
  • Application：Heating
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Certification：ISO9001, CE, UL
  • Production Capacity：1000pieces,Month

Description

Basic Info.

Certification ISO9001, CE, UL Production Capacity 1000pieces/Month

Product Description

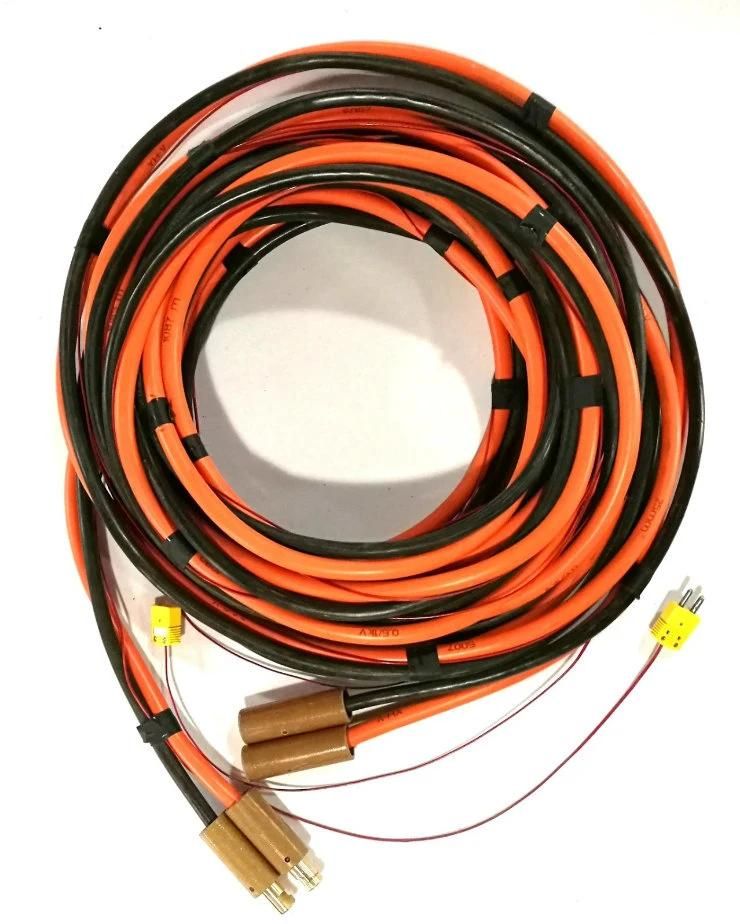

Triple Cable Sets for Pwht

Triple Cable Sets
The triple cable set consists of two lengths of heat and oil resistant and flame retardant (HOFR), double insulated copper cable complete with two 300 amp female camlock connectors on one end and two 300 amp male camlock connectors on the other end. Running alongside the copper cable is a length of compensating cable which has a thermocouple plug on one end and a thermocouple socket on the opposite end.
- 16mm² 135A welding cable,  300A camlock, Type K compensating cable, STD thermocouple connectors
- 25mm² 185A welding cable,  300A camlock, Type K compensating cable, STD thermocouple connectors
Length: 15m,25m, 30m
Other length can be customized.
