Medium Speed Double Sheathed Shielded Towline Cable Ant1012 Cable 300 / 500 V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Special Elastomer Compound
  • Insulation Material：Special Thermoplastic Polyestor Elestomer
  • Material Shape：Round Wire

Base Info

  • Model NO.：ANT1012 Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

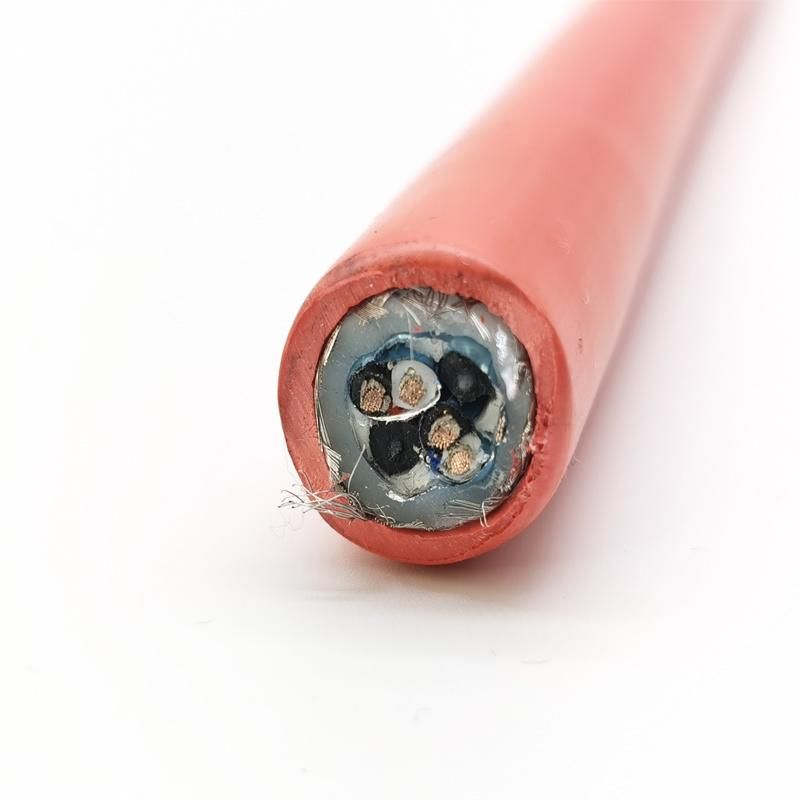

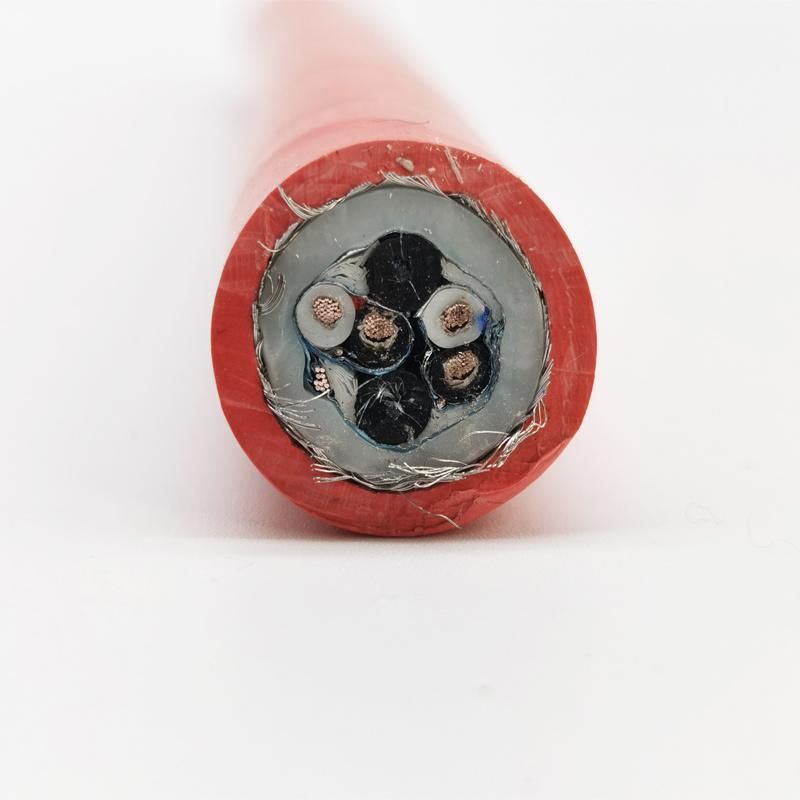

ItemANT1012 Medium Speed Shielded Towline Cable ConductorSolid copper conductorInsulationSpecial thermoplastic polyestor elestomerOuter SheathSpecial elastomer compoundCore NumberMulti-coresOperating VoltageUo/U: 300/300 V & 300/500 VTest voltage1500/2000 V Operating temperature rangeFlexible installations:-10ºC ~ +70ºC
Fixed installations:-30ºC ~ +70ºCColorOptionalApplicationThe cable is suitable for modern machining, machine tool industry, robotics and machinery production, and other places where high flexibility is required. The mesh-shaped shielding layer composed of high-density and high-conductivity materials,and the use of an extruded inner sheath structure can more effectively fix the position of the core, which can ensure the orderly movement of the core during the reciprocating bending of the cable, and improve the bending life. At the same time, it has strong anti-interference ability. It is especially suitable for applications requiring frequent bending times under moderate mechanical loads, flexibility when moving slowly, and complex electric field interference.

Medium Speed Double Sheathed Shielded Towline Cable Ant1012 Cable 300 / 500 VMedium Speed Double Sheathed Shielded Towline Cable Ant1012 Cable 300 / 500 V
