Coaxial Cable Connector Types UV Stabilized Jacket for CATV CCTV
ZHEJIANG LIBO INDUSTRIAL CO., LTD.- Application：Local Communication Cable, Coaxial Cable, LAN Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Rg59 Stabilized Jacket
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：RG59 UV stabilized jacket
- Wire Core Material：CCS or Bare Copper
- Certification：CE, ISO, RoHS
- Model：Rg59 with Stabilized Jacket
- Brand：Libo or OEM
- Braiding Coverage：65%
- Lower Attenuation：Yes
- Jacket：UV Stabilised Jacket
- Transport Package：100m,200m,305m,1000ft or According to Client′s Spe
- Specification：RG59 with connector
- Trademark：LIBO or OEM
- Origin：China
- HS Code：854420000
- Production Capacity：12000km Per Month
Description
@Frequency MHZ
dB/100ft. (MAX.)
dB/100 meters(MAX.)
5MHZ
0.86
2.82
55MHZ
2.05
6.73
83MHZ
2.45
8.04
187MHZ
3.60
11.81
211MHZ
3.80
12.47
250MHZ
4.10
13.45
300MHZ
4.45
14.60
350MHZ
4.80
15.75
400MHZ
5.10
16.73
450MHZ
5.40
17.72
500MHZ
5.70
18.70
550MHZ
5.95
19.52
600MHZ
6.20
20.34
750MHZ
6.97
22.87
865MHZ
7.52
24.67
1000MHZ
8.12
26.64
Applications:

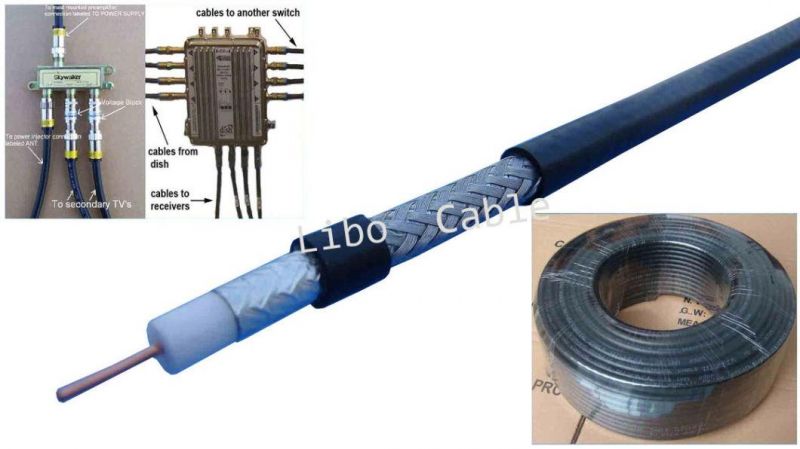

RG59 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Competitive Advantage:
- Outstanding anti-interference effectiveness and excellent transmission reliabilities.
- low cost and easy to install.
- Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
- Libo cable has a stable workforce and engineering team, the F5940BV cable is with short lead-time and stable high quality.
- Libo cable is equipped with a Provincial-level Research and Development Center.
