• Model NO.：Tree Cable Wire 35 Kv
• Wire Core Material：Aluminum
• Certification：ISO, CCC
• Model：Sac Cable
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：2.5~400sqmm
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

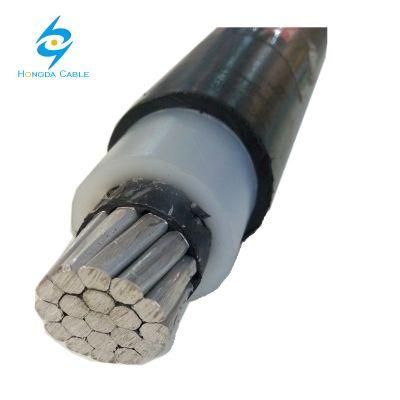

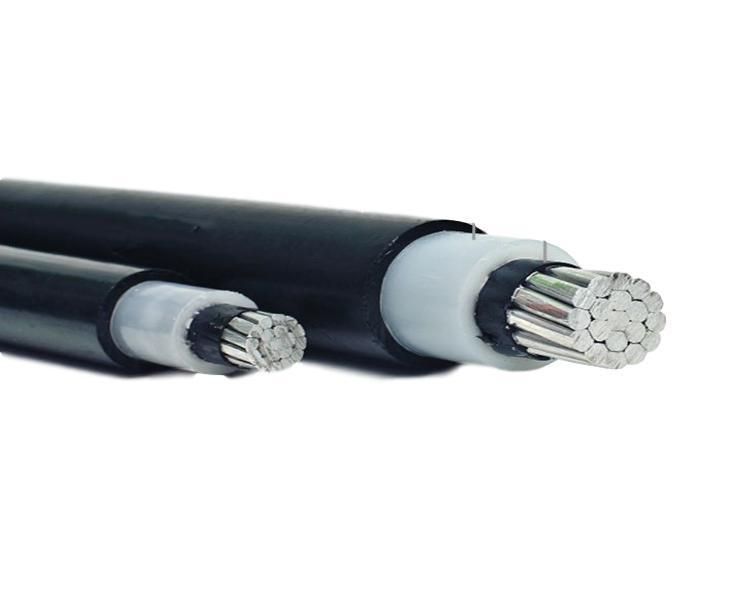

NUMBER OF CORESingle core1. CONDUCTOR

• Compact stranded hard drawn Aluminum wire
• Conductor sizes 35 mm2 up to 240 mm2

2. CONDUCTOR SHIELDSemi conducting cross-linked polyethylene3. INSULATION

• Cross-linked polyethylene
• Colour : Natural

4. SHEATH

• Track resistant cross-linked polyethylene
• Colour : Black

CLASSIFICATION

• Normal operation 90 °C
• Emergency overload conditions 130 °C
• Short circuit conditions 250°C
• Voltage rating 25 Kv.( Phase to Phase )

TESTING VOLTAGE48KV for 5 minutesREFERENCEICEA S-66-524 /MEA/PEA

Nominal Sectional Area
mm2Minimum Number of wire
NODiameter of Conductor (approx.)
mmThickness of Insulation
mmThickness of sheath
mmOverall Diameter (approx.)
mmMaximum DC. conductor resistance at 20°C
Ω / kmAllowable ampacities in free air at 40°C ambient
ACable weight (approx.)
kg / km2575.903.183.1820.01.20001193173576.953.183.1821.00.86801493905078.333.183.1822.00.641018644070189.733.183.1824.50.4430229540951811.453.183.1826.00.32002796401201812.953.183.1827.00.25303217401501814.273.183.1829.50.20603718501853415.983.183.1831.00.16404299902403418.473.183.1833.50.12505201,190

Packing shipping
