• Model NO.：K-GG
• Material Shape：Round Wire
• Range of Application：Temperature Measuring
• Certification：ISO9001, CE, UL, CCC, RoHS, CQC
• Brand：Fongming
• Name：Thermocouple Wire
• Model：K-G-G Type
• Size：2*26-2*14AWG
• Color：Colorful
• Conductor：Ni-Cr ,Ni-Si
• Insulation：Fiberglass Braid and Silicone Resin Coating
• Jacket：Fiberglass Braid and Silicone Resin Coating
• Lead Time：7 Days
• MOQ：1000 Meters
• Transport Package：Roll or Spool Then Carton
• Specification：2*26-2*14AWG
• Trademark：FONGMING
• Origin：Yangzhou China
• HS Code：854449210
• Production Capacity：6000000

Basic Info.

Model NO. K-GG Material Shape Round Wire Range of Application Temperature Measuring Certification ISO9001, CE, UL, CCC, RoHS, CQC Brand Fongming Name Thermocouple Wire Model K-G-G Type Size 2*26-2*14AWG Color Colorful Conductor Ni-Cr ,Ni-Si Insulation Fiberglass Braid and Silicone Resin Coating Jacket Fiberglass Braid and Silicone Resin Coating Lead Time 7 Days MOQ 1000 Meters Transport Package Roll or Spool Then Carton Specification 2*26-2*14AWG Trademark FONGMING Origin Yangzhou China HS Code 854449210 Production Capacity 6000000

Product Description

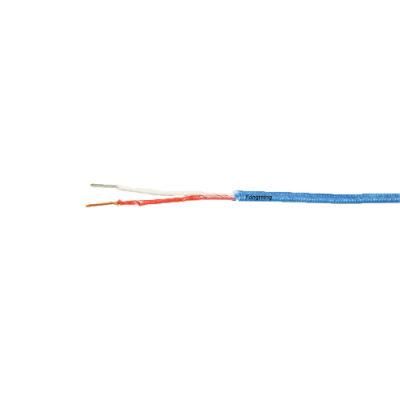

high quality K Type  Fiberglass Insulation Fiberglass Braid Thermocouple Extension Cable

Description
Name :Thermocouple wire
Model:K-G-G Type
Size:2*26-2*14AWG

Structure
Conductor:Ni-Cr ,Ni-Si
Insulation:Fiberglass Braid  and Silicone Resin Coating
Color:Positive White With Green Stripe Negative White
Jacket:Fiberglass Braid and Silicone Resin Coating
Color:White With Green Stripe

Model

Specification

Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.2	1.3±0.2*2.0±0.2
2*24	7/0.2	0.6	0.2	1.0	0.2	1.4±0.2*2.2±0.2
2*22	7/0.25	0.75	0.2	1.2	0.2	1.6±0.2 *2.6±0.2
2*20	11/0.25	0.96	0.2	1.4	0.2	1.8±0.2 *3.0±0.2
2*18	17/0.25	1.19	0.2	1.6	0.2	2.0±0.2 *3.4±0.2
2*16	27/0.25	1.50	0.2	1.9	0.2	2.3±0.2 *4.0±0.2
2*14	42/0.25	1.87	0.2	2.3	0.2	2.7±0.2 *4.8±0.2

Certificates:


UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.



Packaging & Shipping



1. Package length	200meres 305meter 500meter As customers requirement
2. Package method	Rolls, spool or coil, Pallets if need.
3: Shipping port	Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port

Company Information

Factory Size (Sq.meters):	25,000-30,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	7
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered
