Kx6 with 2*0.50mm2 75 Ohm CCTV Coaxial Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Kx6
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, ETL
- Model：Cat5
- Brand：Risun
- Color：Green
- Inner Conductor：7*0.20mmcu
- Dielectric：3.70mm Spe
- Shield：80% CCA or 95% Cu
- Jacket：6.10mmpvc
- Export Length：100m,Roll, 305m,Drum,500m,Drum
- Transport Package：Pull out Box, Carton Box, Pallet
- Specification：KX6 Cable
- Trademark：Risun
- Origin：Zhejiang, China
- HS Code：8544491100
- Production Capacity：30000boxes,Month
Description
KX6 Cable+2*0.50 Figure 8Power Wire Diameter of Insulation Jacket Application For Use in Longer CCTV Run Lengths
NOMINAL ATTENUATION[@ 68° F. (20° C)]
Application & Certificates:
Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
| Impedance(Ω) | 75±3 |
| Velocity of Propagation | 66% |
| Capacitance(pF/m) | 67.3 |
NOMINAL ATTENUATION[@ 68° F. (20° C)]
| Frequency(MHz) | Attenuation (dB/100m) |
| 10 | 5.0 |
| 50 | 8.10 |
| 100 | 13.0 |
| 200 | 18.5 |
| 400 | 22.5 |
| 850 | 34.5 |
| 950 | 37.5 |
| 1000 | 45.0 |
Application & Certificates:
Company Introduction

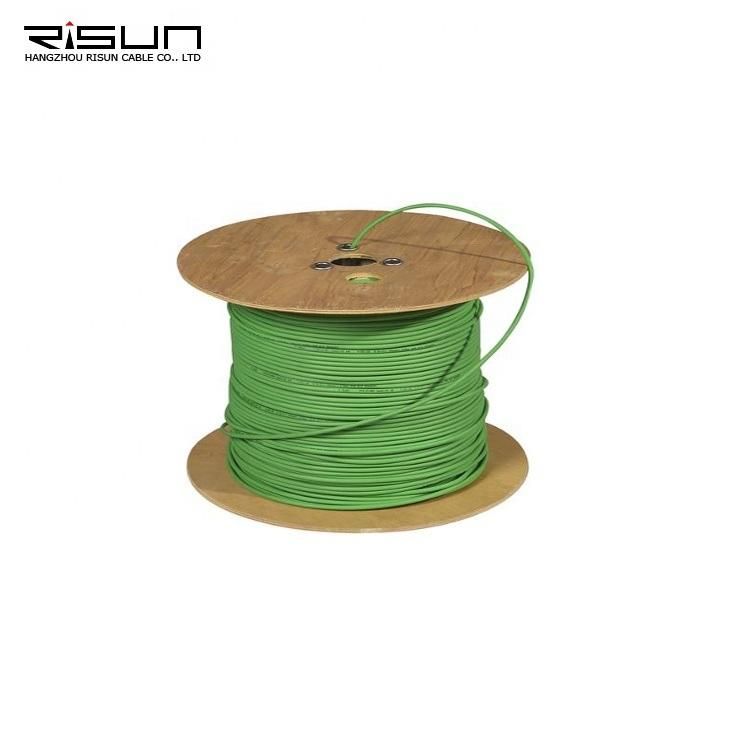

Packing:
We can offer same as per customer's requirement for option! Mainly we can offer Wooden Drum ,Plastic Drum,Pallet for choice.Any Other Packing Requirement can be acceptable.
Production line:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
