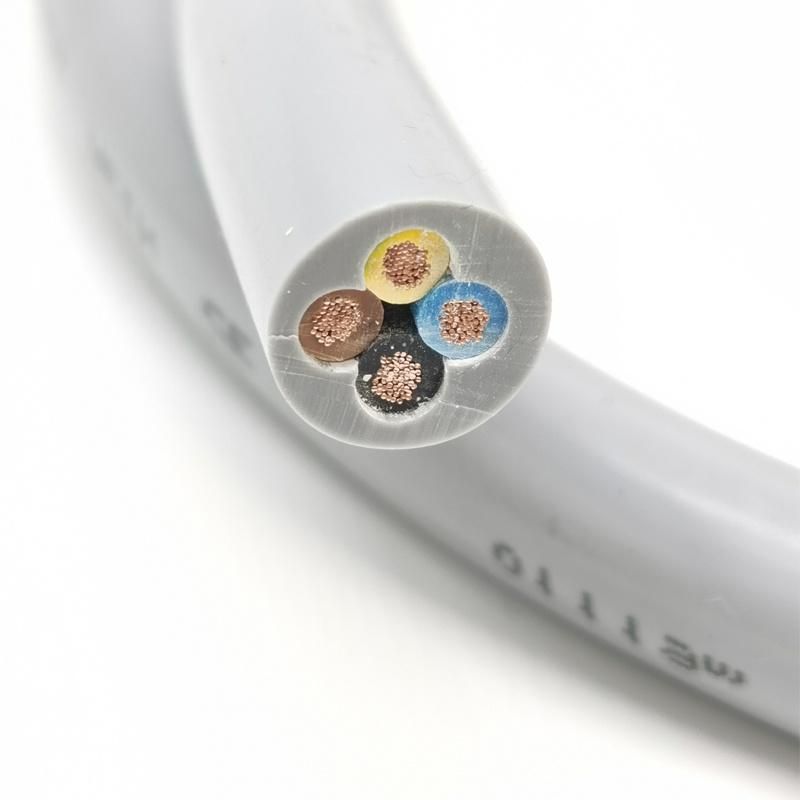

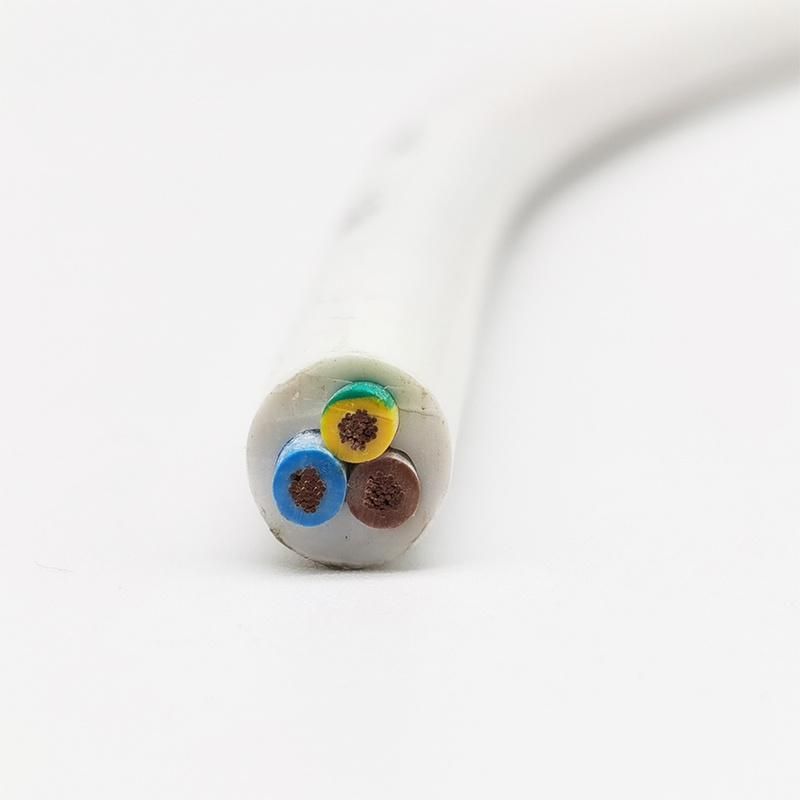

Hepr Insulation PVC Sheath Fg16r16 Cable Electrical Wire 0.6/1kv

Shanghai Aein Wire & Cable Co., Ltd.

Type：Insulated
Conductor Type：Stranded
Conductor Material：Copper
Sheath Material：PVC
Insulation Material：Hepr
Material Shape：Round Wire

Base Info

Model NO.：FG16R16 Cable
Range of Application：Electrical Facilities
Certification：ISO9001, CE, UL, RoHS
Brand：Aein
Transport Package：Optional
Specification：Multicore
Trademark：AEIN
Origin：Shanghai
HS Code：8544492100

Description

ItemFG16R16 CableConductorFlexible bare copper wire, Class 5InsulationHEPR Compound (G16 quality)Outer SheathHEPR Compound (G16 quality)Core NumberMulti-coresTemperature range-15°C till +70°CNominal Voltage600/1000 VColorOptionalApplicationFor indoor and outdoor installation, also in wet locations; for fixed installation in surface mounted or on metallic structures; direct laying in earth permitted.(CEI 20-67)
