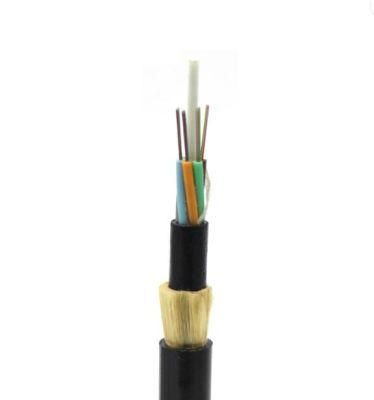

Aerial Overhead Fiber Optic Cable Gyxtc8s

Zhejiang Fuchunjiang Photoelectric Science Technology Co., Ltd.
  • Application：Communication
  • Type：Single-mode Fiber
  • Connection Structure：SC
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：>10000N

Base Info

  • Model NO.：Gyxtc8s
  • Core：Multicore
  • Certification：RoHS, UL, CE, ISO9001, VDE, CCC
  • Brand：OEM
  • Sheath Material：PE Sheath,LSZH
  • Transport Package：Wooden or as Your Request
  • Specification：2km 3km
  • Trademark：FCJ OPTO TECH
  • Origin：China
  • HS Code：854470000
  • Production Capacity：8000km,Momth

Description

Cable Cut-off Wavelength≤1260nm≤1480nm




Technical Parameters
Cable TypeFiber CountCable Diameter
   mm		Cable Weight kg/kmSupporting Wire SpecConnection DiameterTensile Strength
 Long/Short Term N		Crush Resistance
 Long/Short Term
  N/100mm		Bending Radius
 Static /Dynamic
 mm
GYXTC8S2~127.65×14.5118Φ1.0mm*7
Stranded wires		Height×Width
  3.0×2.5 mm		1000/2500300/100080/160
GYXTC8S14~248.2×15.1129Φ1.0mm*7
  Stranded wires		Height×Width
3.0×2.5 mm		600/1500300/100090/180
Storage/Operating Temperature : -40ºC to + 60ºC
