PFA Insulated Multi Core Rtd Cable
Yangzhou Fongming Cable Factory- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, Underground
- Conductor Material：Copper
- Sheath Material：PFA
- Insulation Material：PFA
Base Info
- Model NO.：RTD-A-A
- Material Shape：Round Wire
- Range of Application：Temperature Measurement
- Certification：ISO9001, CE, UL, CCC, RoHS
- Name：PFA Insulated Multi Core Rtd Cable
- Color：as Required, Red, Green, Yellow, Blue
- Sample：3 Meters Free, 3 Days
- Customize：Available
- MOQ：1000 Meters
- Transport Package：305m Per Roll, Carton Box Outside
- Specification：3*26-3*14AWG
- Trademark：Fongming
- Origin：Yangzhou, P. R China
- HS Code：8544492100
- Production Capacity：100000000meters Per Month
Description
Basic Info.
Model NO. RTD-A-A Material Shape Round Wire Range of Application Temperature Measurement Certification ISO9001, CE, UL, CCC, RoHS Name PFA Insulated Multi Core Rtd Cable Color as Required/ Red, Green, Yellow, Blue Sample 3 Meters Free, 3 Days Customize Available MOQ 1000 Meters Transport Package 305m Per Roll, Carton Box Outside Specification 3*26-3*14AWG Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
Product DescriptionPFA Insulated Multi Core RTD Cable
Description
Name: PFA Insulated Multi Core RTD Cable
Model: RTD-A-A
Size: 3*26-3*14AWG

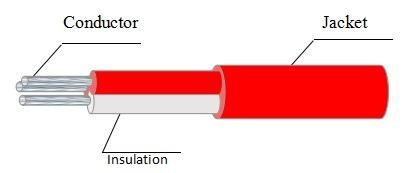

Structure
Conductor: Tinned Copper
Insulation: Extruded PFA
Color: Color:2 Red,1 White
Jacket: Extruded PFA
Color: Red
| Size (mm) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) |
| 3*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.5 | 2.9±0.2 |
| 3*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.5 | 3.2±0.2 |
| 3*22 | 7/0.254 | 0.76 | 0.2 | 1.2 | 0.5 | 3.6±0.2 |
| 3*20 | 7/0.32 | 0.96 | 0.2 | 1.4 | 0.5 | 4.0±0.2 |
| 3*18 | 7/0.39 | 1.17 | 0.25 | 1.7 | 0.5 | 4.7±0.3 |
| 3*16 | 19/0.3 | 1.5 | 0.25 | 2.0 | 0.5 | 5.3±0.3 |
| 3*14 | 19/0.37 | 1.85 | 0.25 | 2.4 | 0.5 | 6.2±0.3 |
Certifications
Company Information
Packaging&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why is the price so low?
You are ordering directly from the factory.
2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3. Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
