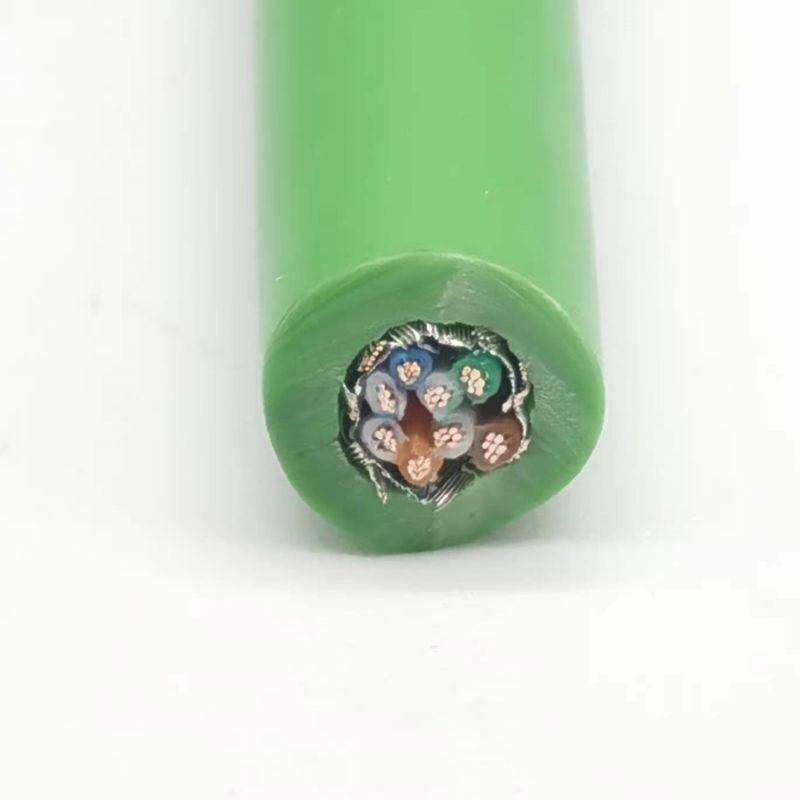

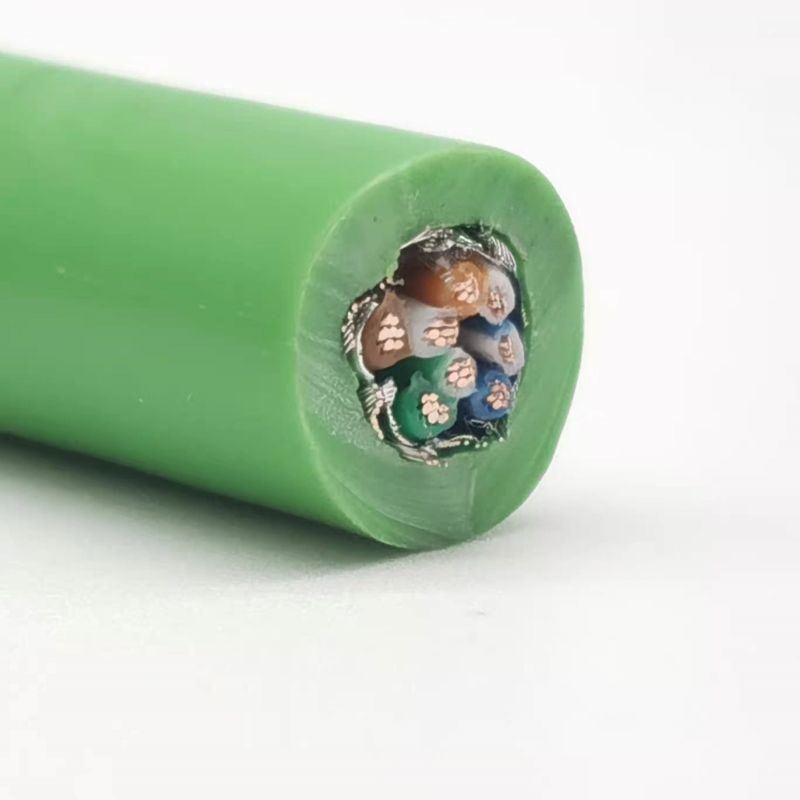

6fx8002-2ca31-1bb0 Cable for Incr. Encoder with C/D Tracks Integrated Into The Motor

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PUR
  • Insulation Material：Without CFC and Silicone
  • Material Shape：Round Wire

Base Info

  • Model NO.：6FX8002-2CA31-1BB0 Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

Item6FX8002-2CA31-1BB0 Cable for Incr. Encoder with C/D Tracks Integrated into the MotorConductor

Bare copper strands

InsulationWithout CFC and siliconeOuter sheathPVCTest voltage, rms Signal conductors500 V Rated voltage U0/U 30VCore numberMulticores (As client's requirement)Operation with permanently installed cable-50 ...80 ºC
Module-end power connector -40°C … 80°C,
Motor-end power connector -20 … 80°COperation with moving cable-20 ... 60 °CStorage-20 ... 80 °C
Module-end power connector -40°C … 80°C,
Motor-end power connector -20 … 80°CSmallest bending radius (fixed installation)4 x DmaxSmallest bending radius(flexible installation in a cable carriers)70 mmMaximum traversing velocity300 m/minApplicationSIEMENS MOTION CONNECT 800PLUS
