Overhead ACSR Power Cable
Luoyang Sanwu Cable Co., Ltd.- Application：Overhead
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：ASTM Conductor cable ACSR
- Wire Core Material：Steel or Galvanized Steel
- Certification：ISO, CCC, CE
- Model：an-ACSR-002
- Brand：Sanwu
- Manufacturer：Since 2006
- Factory Area：20, 081mm2
- Standard：CSA, IEC, ASTM, DIN, BS, etc
- Guarantee：20 Years

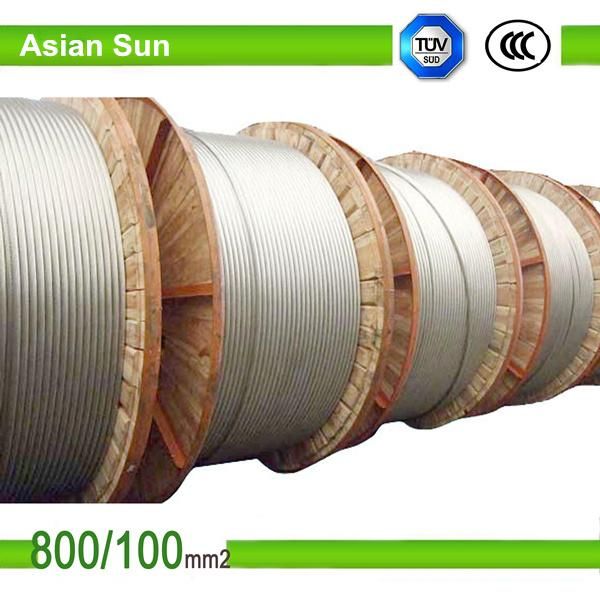

- Transport Package：Wooden Drum,Wooden Steel Drum
- Specification：10-800mm2
- Trademark：SanWu Cable
- Origin：China
- HS Code：76141000
- Production Capacity：500000,Per Month
Description
ACSR ASTM Technical DatasheetCode Size Section Stranding Diameter Total
Weight Rated
Strength Maximum Resisitance
@20°C Al Total Al Steel Cable Steel AWG or
MCM mm² mm mm kg/km kg Ω/km Wren 8 8.37 9.81 6×1.33 1×1.33 3.99 1.33 33.8 340 3.4017 Turkey 6 13.3 15.48 6×1.68 1×1.68 5.03 1.68 53.7 540 2.1135 Swan 4 21.15 24.71 6×2.12 1×2.12 6.35 2.12 85.4 846 1.3278 Swanate 4 21.15 26.52 7×1.96 1×2.61 6.53 2.61 99.7 1067 1.3133 Sparrow 2 33.62 39.23 6×2.67 1×2.67 8.03 2.67 136 1289 0.8343 Sparate 2 33.62 42.13 7×2.47 1×3.30 8.26 3.3 159 1650 0.8251 Robin 1 42.41 49.48 6×3.00 1×3.00 9.02 3 171 1612 0.6621 Raven 1/0 53.51 62.39 6×3.37 1×3.37 10.11 3.37 216 1987 0.5243 Quail 2/0 67.44 78.65 6×3.78 1×3.78 11.35 3.78 273 2401 0.416 Pigeon 3/0 85.02 99.23 6×4.25 1×4.25 12.75 4.25 344 3006 0.3304 Penguin 4/0 107 125 6×4.77 1×4.77 14.3 4.77 433 3787 0.2618 Owl 266.8 135 153 6×5.36 7×1.79 16.09 5.37 507 4330 0.2109 Waxwing 266.8 135 143 18×3.09 1×3.09 15.47 3.09 431 3117 0.2119 Partridge 266.8 135 157 26×2.57 7×2.00 16.31 5.98 547 5113 0.21 Oatrich 300 152 177 26×2.73 7×2.12 17.27 6.36 614 5755 0.1867 Piper 300 152 188 30×2.54 7×2.54 17.78 7.62 697 7000 0.1902 Merlin 336.4 171 180 18×3.47 1×3.47 17.37 3.47 544 3931 0.168 Linnet 336.4 171 198 26×2.89 7×2.25 18.31 6.74 689 6730 0.1663 Oriole 336.4 171 210 30×2.69 7×2.69 18.82 8.07 784 7865 0.1654 Chickadee 397.5 201 213 18×3.77 1×3.77 18.87 3.77 642 4499 0.1421 Ibis 397.5 201 234 26×3.14 7×2.44 19.89 7.32 814 7488 0.1411 Lark 397.5 201 248 30×2.92 7×2.92 20.47 8.77 927 9202 0.1401 Pelican 477 242 255 18×4.14 1×4.14 20.68 4.14 771 5347 0.1184 Flicker 477 242 273 24×3.58 7×2.39 21.49 7.16 914 7790 0.1178 Hawk 477 242 281 26×3.44 7×2.67 21.79 8.03 977 8880 0.1171 Hen 477 242 298 30×3.20 7×3.20 22.43 9.61 1112 10783 0.1165 Heron 500 253 312 30×3.28 7×3.28 22.96 9.84 1162 11090 0.1141 Osprey 556.5 282 298 18×4.47 1×4.47 22.33 4.47 899 6233 0.1014 Parakeet 556.5 282 319 24×3.87 7×2.58 23.22 7.73 1067 8999 0.101 Dove 556.5 282 328 26×3.72 7×2.89 23.55 8.66 1140 10019 0.1007 Eagle 556.5 282 348 30×3.46 7×3.46 24.21 10.39 1298 12606 0.1001 Peacock 605 307 346 24×4.03 7×2.69 24.21 8.03 1161 9771 0.0928 Squab 605 307 357 26×3.87 7×3.01 24.54 9.04 1240 11018 0.0925 Teal 605 307 376 30×3.61 19×2.16 25.25 10.82 1398 13567 0.0919 Duck 605 307 346 54×2.69 7×2.69 24.21 8.07 1158 10210 0.0944 Kingbird 636 322 340 18×4.78 1×4.78 23.88 4.78 1028 7128 0.0895 Rook 636 322 364 24×4.14 7×2.76 24.82 8.28 1219 10298 0.0883 Grosbeak 636 322 375 26×3.97 7×3.09 25.15 9.27 1302 11427 0.0897 Egret 636 322 396 30×3.70 19×2.22 25.88 11.1 1471 14302 0.0876 Goose 636 322 364 54×2.76 7×2.76 24.84 8.28 1218 10730 0.0898 Flamingo 666.6 338 382 24×4.23 7×2.82 15.4 8.46 1278 10751 0.0843 Gull 666.6 338 382 54×2.82 7×2.82 25.38 8.46 1276 11140 0.0587 Starling 715.5 363 422 26×4.21 7×3.28 26.7 9.83 1465 12865 0.0781 Redwing 715.5 363 445 30×3.92 19×2.35 27.46 11.76 1653 15649 0.0778 Cuckoo 795 403 455 24×4.62 7×3.08 27.74 9.25 1524 12649 0.0719
Technical characteristics

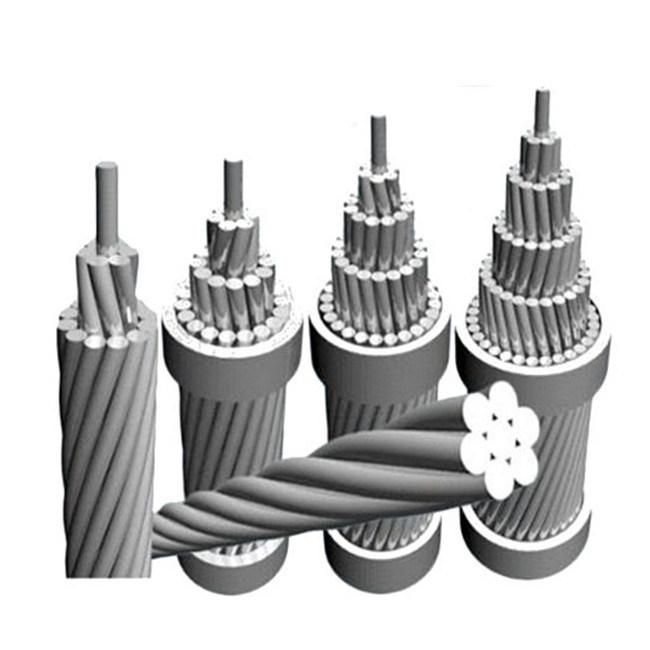

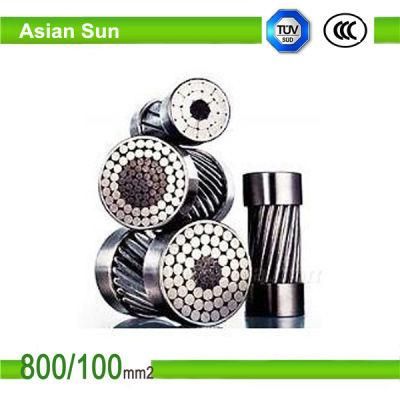

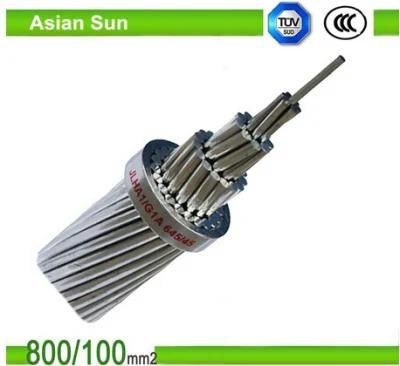

(1) Cable picture
Packaging & Shipping
Weight
Strength
@20°C
MCM
Technical characteristics
(1) Cable picture
Packaging & Shipping

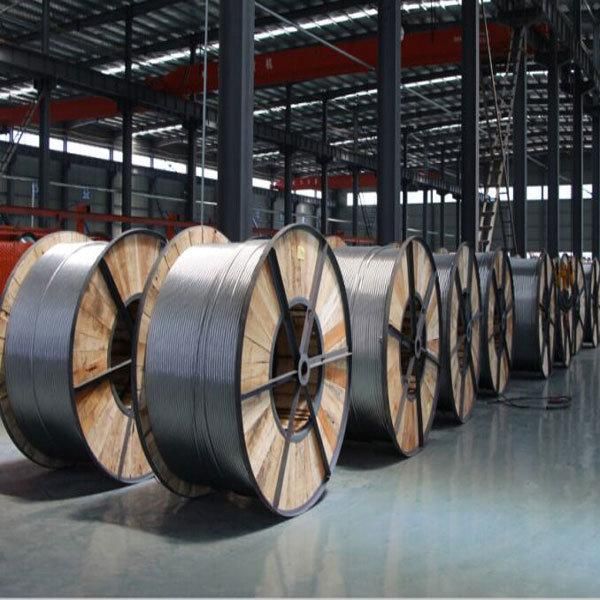

Packaging Details : wooden drums or in coils, we have more than 20 types packages.
Port : Qingdao / Shanghai / Shenzhen , any port in China.
Lead Time : according to the order 10-20 working days.

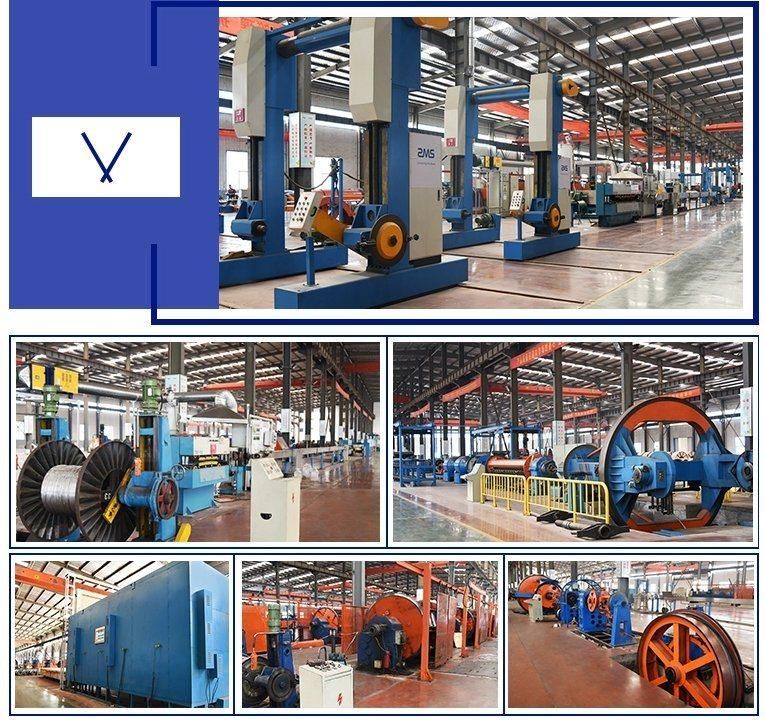

Company Information
