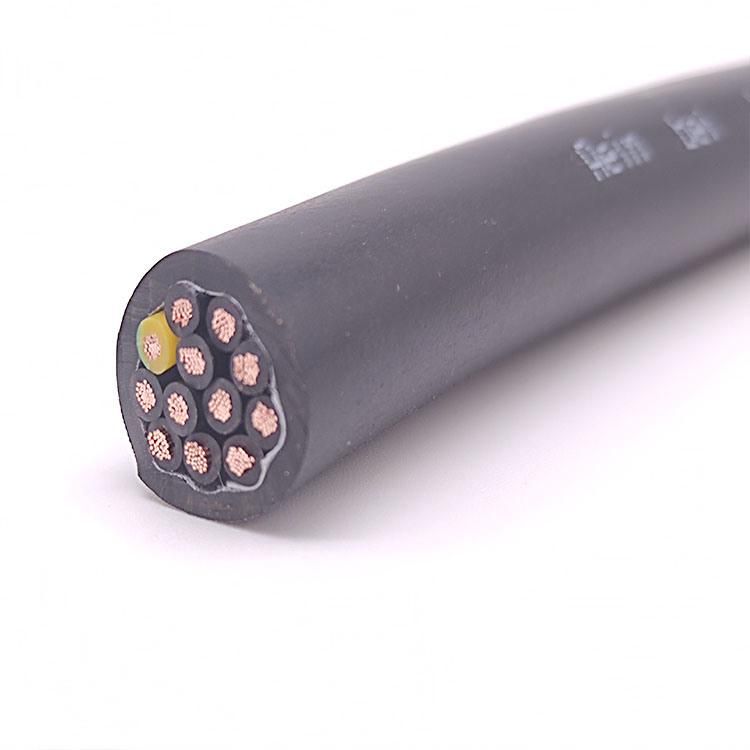

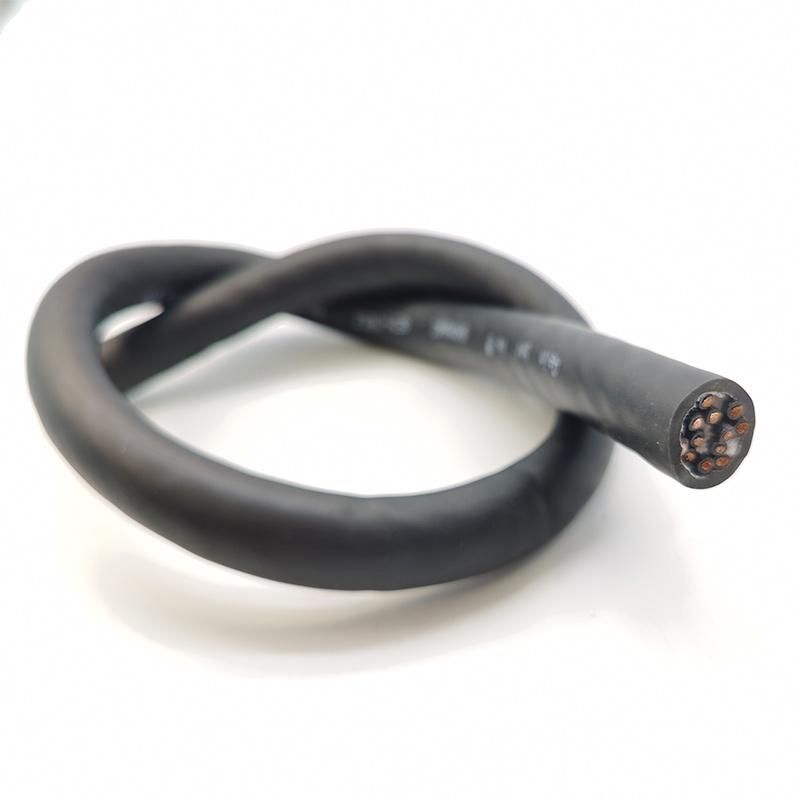

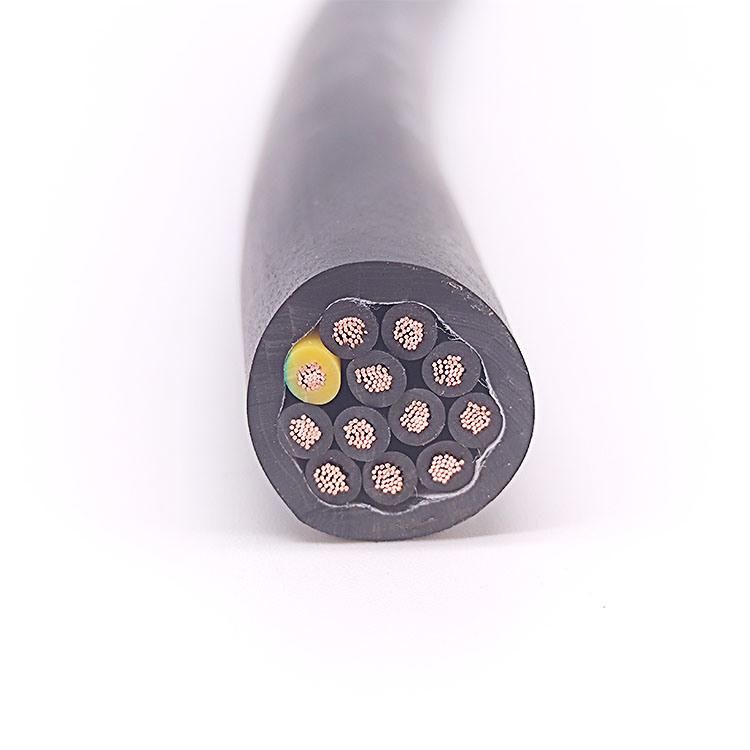

300/500V CE Ysly Cable PVC Insulated PVC Sheathed Control Cable 12X1.5mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Fixed Installation
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：YSLY Cable
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Multi core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemYSLY PVC Control CableConductorCopper  (as client's required)InsulationPVC (as client's required)SheathPVC (as client's required)Nominal VoltageU0/U 300/500V Test Voltage2 kVTemperature RangeIn motion: -5°C to +70°C
Fixed: -30°C till +90°CBending radiusIn motion: 15 x diameter
Fixed: 6 x diameterColorOptionalCertificationCEApplicationIn dry and damp locations for low and medium-level mechanical stress, but not in the open-air. To be used as a termination and connection cable in the control, measuring and signal technology. Suitable as a signal and impulse cable for control and inspection of industrial plants, production lines and Machinery.
