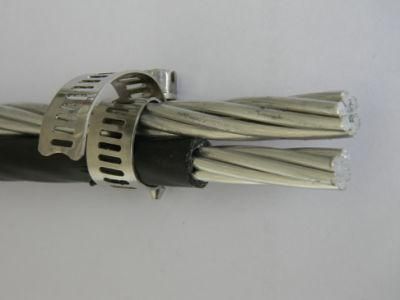

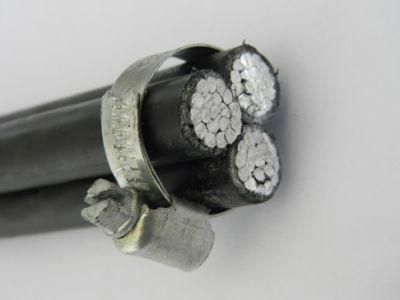

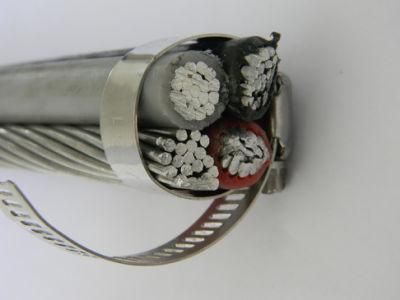

Triplex Service Drop AAAC 6201 Alloy Neutral Conductor Crayfish

YIFANG ELECTRIC GROUP INC.
  • Application：Overhead
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Certification：ISO
  • Product Name：Aire Bundled Cable(ABC Cable)

Base Info

  • Model NO.：ABC
  • Transport Package：Drum Circles or According to U Request
  • Specification：Iec Bs ASTM DIN CSA as and So on
  • Trademark：Yifang cable
  • Origin：Zhengzhou, China
  • HS Code：8544492100
  • Production Capacity：500, 000kilometers Per Month

Description

Nominal Cross Section mm 2 1.5 2.5 4 6 10 16 25
Cu core Ohm/km 12.1 7.41 4.61 3.08 1.83 1.15 0.727
Al core Ohm/km 18.1 12.1 7.41 4.61 3.08 1.91 1.2
Nominal Cross Section mm 2 35 50 70 95 120 150 185
Cu core Ohm/km 0.524 0.387 0.268 0.193 0.153 0.124 0.0991
Al core Ohm/km 0.868 0.641 0.443 0.32 0.253 0.206 0.164
Nominal Cross Section mm 2 240 300 400 500 630 800 1000
Cu core Ohm/km 0.0754 0.06 0.047 0.0366 0.0283 0.0221 0.0176
Al core Ohm/km 0.125 0.1 0.0778 0.0605 0.0469 0.0367 0.0291
