Cable HTA CIS 24kV (12/20KV) 1X150mm2 Longitudinally Aluminum Tape Cables

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Overhead, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：HDPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：Hta Cis Cable
  • Wire Core Material：Al
  • Certification：ISO, CCC, CE, RoHS, KEMA
  • Model：Hta Cis Cable
  • Brand：Yifang Cable
  • Core：1core, 3core
  • Sheath Colour：Black
  • Standard：NFC 33226
  • Armour：Longitudinally Aluminum Tape
  • Transport Package：Drum
  • Specification：150mm2
  • Trademark：Yifang
  • Origin：Zhengzhou, Henan, China
  • HS Code：8544601200
  • Production Capacity：150km Per Month

Description

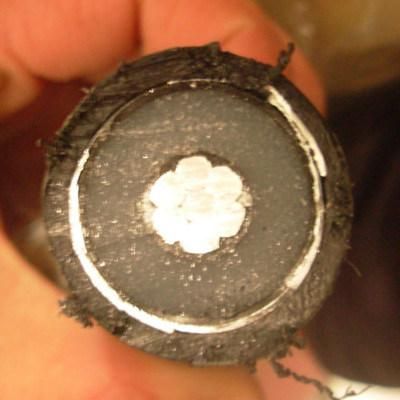

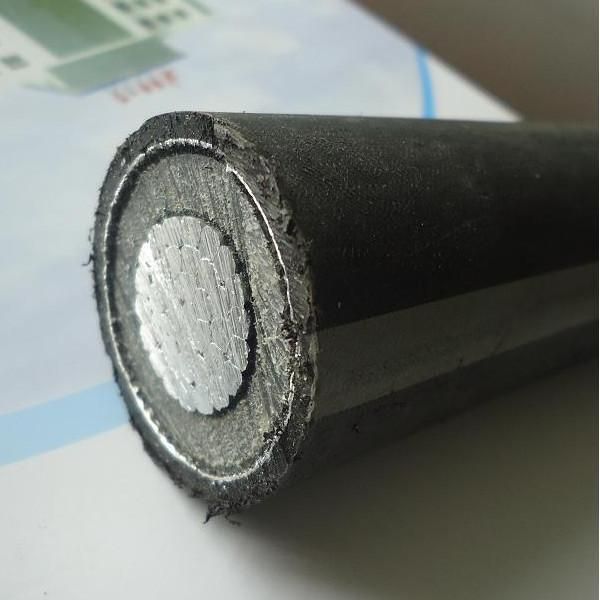

Construction characteristicsConductor flexibilityStranded class 2Conductor shapeCircular stranded (RM)Material of the inner semi-conductorExtrudedInsulationXLPE (chemical)Material of the external semi-conductorExtruded strippable grooved elastomerMaterial used for longitudinal water tightnessSwelling powderScreenLongitudinal aluminium tapeMechanical characteristicsCable flexibilityRigidCable HTA CIS 24kV (12/20KV) 1X150mm2 Longitudinally Aluminum Tape Cables
