• Model NO.：drop wire FTTH cable
• Core：Double Core
• Certification：RoHS, CE, ISO9001
• Brand：Hanxin
• Sheath Material：PC
• Transport Package：1000,2000m
• Specification：1,4
• Trademark：hanxin
• Origin：Zhejiang
• HS Code：8544700000
• Production Capacity：2000000m,Month

Fiber CountCable TypeNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)1Simplex 2.0mm7.65.102.00.079490/110290/651Simplex 2.5mm7.85.232.50.098490/110290/651Simplex 2.8mm8.05.372.80.110490/110290/651Simplex 3.0mm8.25.503.00.118490/110290/652Duplex Flat28.018.794.0X6.80.157X0.267980/220580/1302Duplex Round18.412.354.20.165980/220580/1302Duplex Zip15.010.072.4X4.80.094X0.188980/220580/130     Mechanical PropertiesMinimum Bending Radius:
Under installation:20hOD
During operation:10hOD
Temperature Range:
Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF)

Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF)
 Maximum Compressive Load:2000N
Repeated Impact: 2.9 N.m (J)3h2 impacts
Twist (Torsion):180h10 times, 125hOD
Cyclic Flexing:25 cycles for armoured cables.;
                      100 cycles for unarmoured cables.
Crush Resistance:875N/cm (500lb/in)    Fiber ComplianceTemperature CyclingIEC60794-1-2-F2Repeated BendingIEC60794-1-2-E6Tensile StrengthIEC60794-1-2-E17ATorsionIEC60794-1-2-ECrushIEC60794-1-2-E3KinkIEC60794-1-2-E10ImpactIEC60794-1-2-E4Cable BendIEC60794-1-2-E11    Cool BendIEC60794-1-2-E11      Safety ComplianceGeneral Purpose GradeFlammability Test: OFN (UL1581)Riser Grade
Plenum Grade
FRPVC Grade
LSZH Grade

LSFROH Grade


FR GradeFlammability Test: OFNR/FT4 (UL1666)
Flammability Test: OFNP/FT6 (UL 910)
Flammability Test: IEC60332-1
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A
Fire Resistance Test: IEC 60331 / BS 6387 CWZ    Standard Compliance
GR409-CORE                                       TIA/EIA 568B.3                                ICEA-S-83-596
    Features
•Suitable for indoor use, such as routing connections in patching systems
•Short "patch cord" cables ideal for links between electronic equipment and fiber panels
•Compatible with wide variety of fiber optic connectors
•High quality tight-buffer coating on fiber for environmental and mechanical protection
•Customized jacket colors available for matching connectors.
•Private labeling on the cable outer jacket is also available.

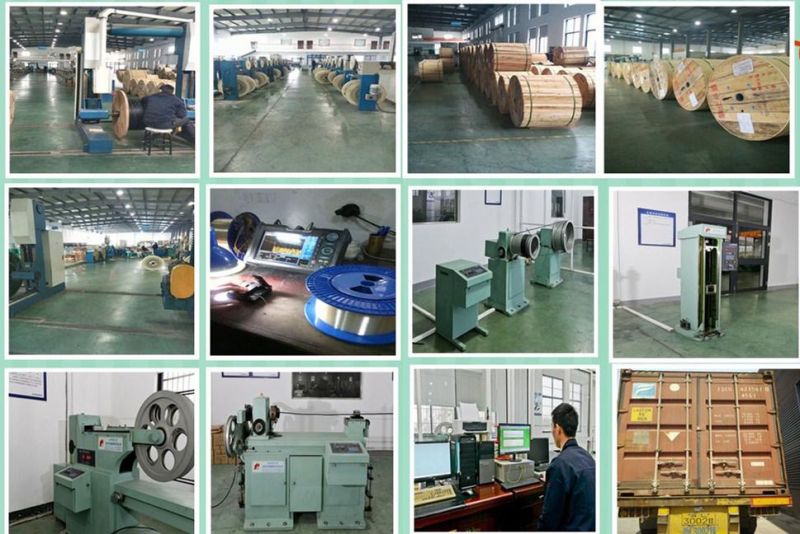

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
