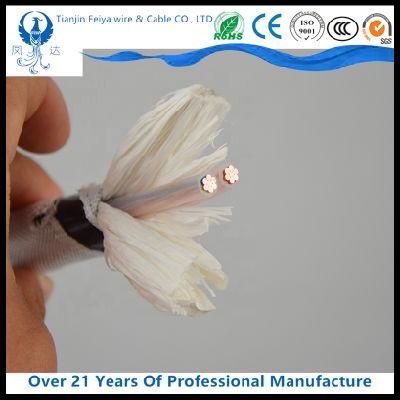

4 Cores 24 Cores Rubber Insulated Sheathed Festoon Flat Power Cable for Crane
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：Rubber
- Insulation Material：Rubber
Base Info
- Model NO.：Crane cable
- Material Shape：Flat Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Color：Black Red Yellow, According to Voltage Level
- Whether It Is Environmentally Friendly：Yes
- Whether Quality Inspection：Provide Inspection Certificate
- Standard：Customized According to Specified National Standar
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Transport Package：Standard Export Packaging
- Specification：International General Specifications
- Trademark：Fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
Description
Application
It is used as sighal transmission wire of applianles, meters and automatie control system in petroleum, chemisty power gmernting and metallurgy. Type and Designation
Type | Designation |
| YVVB | Soft PVC insulation & sheathed mobile flat cable |
| YFFB | Nitrile-Butadiene Rubber insulation & shethed mobile flat cable |
| YEEB | Thermoplastic insulation & sheathed mobile flat cable |
| YGGB | Silica rubber insulated & sheathed mobile flat cable |
| YVFB | PVC insulated thermoplastic sheath mobile flat cable |
Use characteristics and technical performance
1.The rated voltage U0/U 0.6/1kV
2.Cable conductor long-term working temperature :PVC insulated, nitrile PVC insuated, thermoplastic elastic body insulaton does not exceed 70ºC;Silicone rubber isnualtion does not exceed 180ºC
3.The minmum bending radius shoule not less than 6 times of cable diameter
4.Cable lowest runtime environment temperature:PVC insulated is not lower than 0ºC;Nitrile PVC composite insulation, thermoplastic projectile insulation not below -20ºC;Silicone rubber insulation not bellow to -40ºC
5.20ºC conducror DC resistance in accordance with the provisions of the GB/T 3956-2008.
6.Power frequency voltage test:3.5kV/5min cable breakdown.
