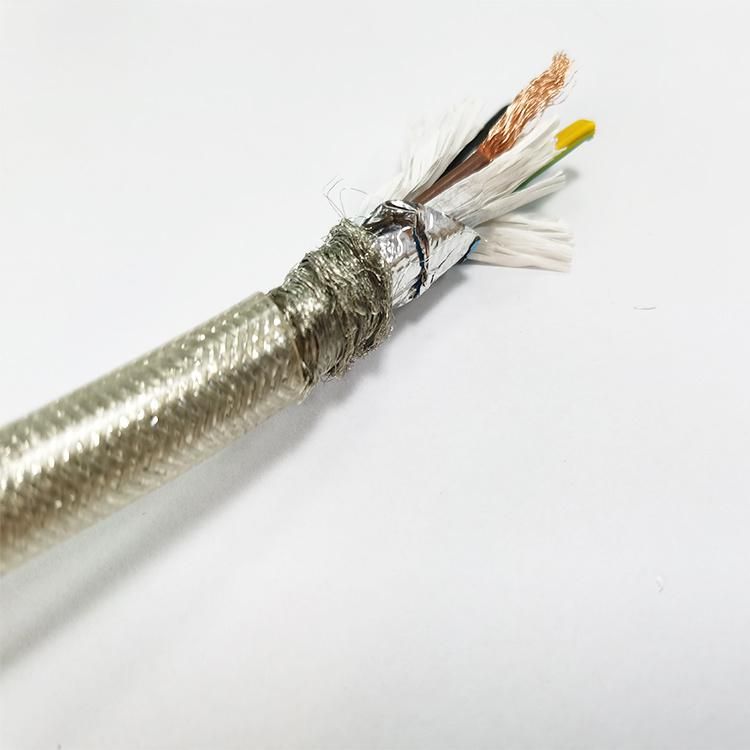

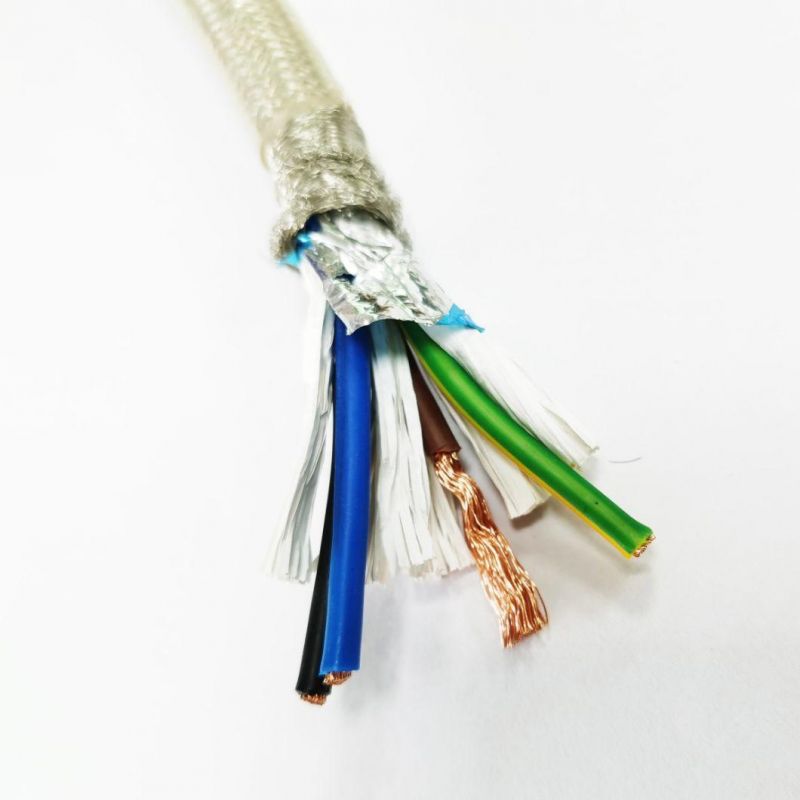

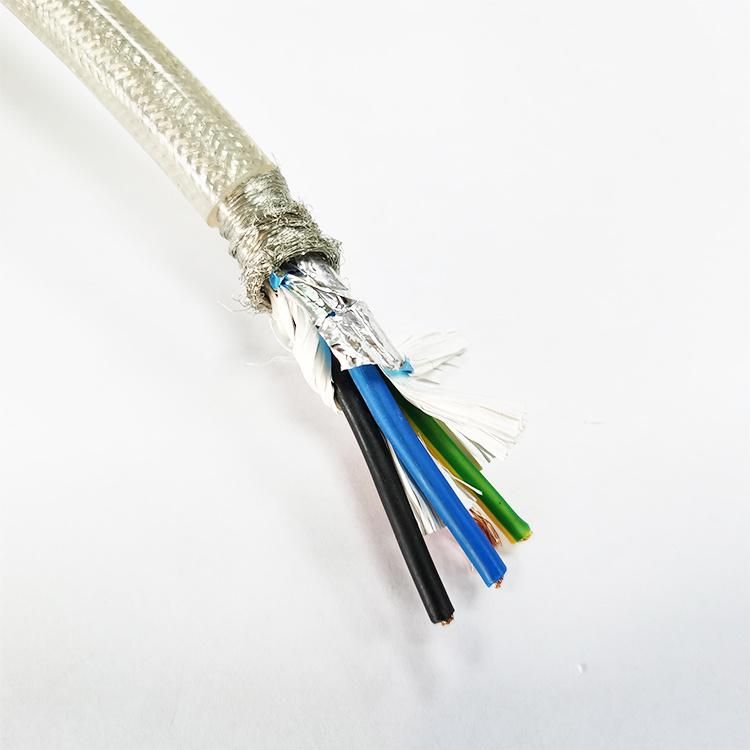

Shanghai Cable Manufacture Sy Control Cable LSZH Insulated Sheathed 300/500V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：LSZH Compound
  • Insulation Material：LSZH Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：SY Cable
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multi core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemSY LSZH Control Flexible CableConductorClass 5 flexible plain copperInsulationLSZH (Low Smoke Zero Halogen) Compound BeddingLSZH (Low Smoke Zero Halogen) Compound BraidingGSWB (Galvanised Steel Wire Braid)SheathLSZH (Low Smoke Zero Halogen) Compound Nominal VoltageU0/U: 300/500VTest voltage2000 VTemperature Range -15°C to +70°CColorOptionalApplicationUsed as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for flexible use in conditions of light mechanical stress. Can be used outdoors when protected against direct sunlight, and in
dry or moist conditions indoors. The braided screen offers mechanical protection and a level of electro-magnetic shielding. The galvanized coating helps protect against corrosion. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.
