Rtd Extension Wire Type Rtd-Cu-Tef /Sil-2x7/0.2

MICC TECH. LIMITED
  • Type：Customized
  • Conductor Type：Customized
  • Application：Customized
  • Conductor Material：Customized
  • Sheath Material：Customized
  • Insulation Material：Customized

Base Info

  • Model NO.：RTD-CU-TEF ,SIL-2x7,0.2
  • Material Shape：Customized
  • Range of Application：Customized
  • Certification：ISO9001, CE
  • Brand：Micc
  • Transport Package：Cartons
  • Specification：Customized
  • Trademark：MICC
  • Origin：Jiangsu, China (Mainland)

Description

Basic Info.

Model NO. RTD-CU-TEF /SIL-2x7/0.2 Material Shape Customized Range of Application Customized Certification ISO9001, CE Brand Micc Transport Package Cartons Specification Customized Trademark MICC Origin Jiangsu, China (Mainland)

Product Description

A. Conductors
Stranded thermocouple extension wire
Conductor Size (AWG)No. Of Strands & Gauge
24
7/0.2mm
B. Insulation
Braided fiberglass (400° C)
Nominal Insulation Thickness: 0.19mm± 0.2
Color code
Positive Color Negative Color
Chromel Green Alumel White
C. Assembly
Two conductors (positive and negative) parallel construction.
D. Overall Jacket
Silicone rubber(200º C) Nominal Insulation Thickness: 0.62mm± 0.2
Color code Green

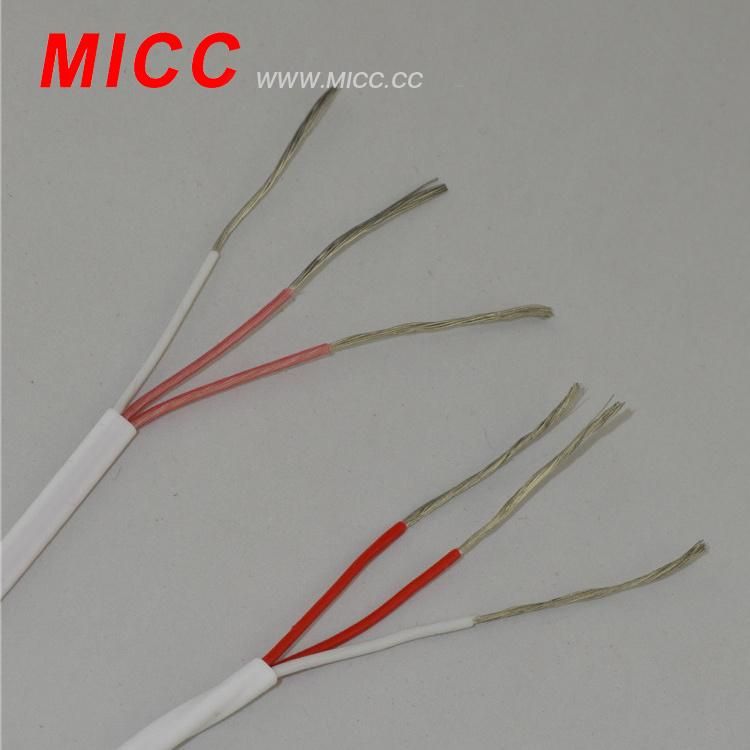

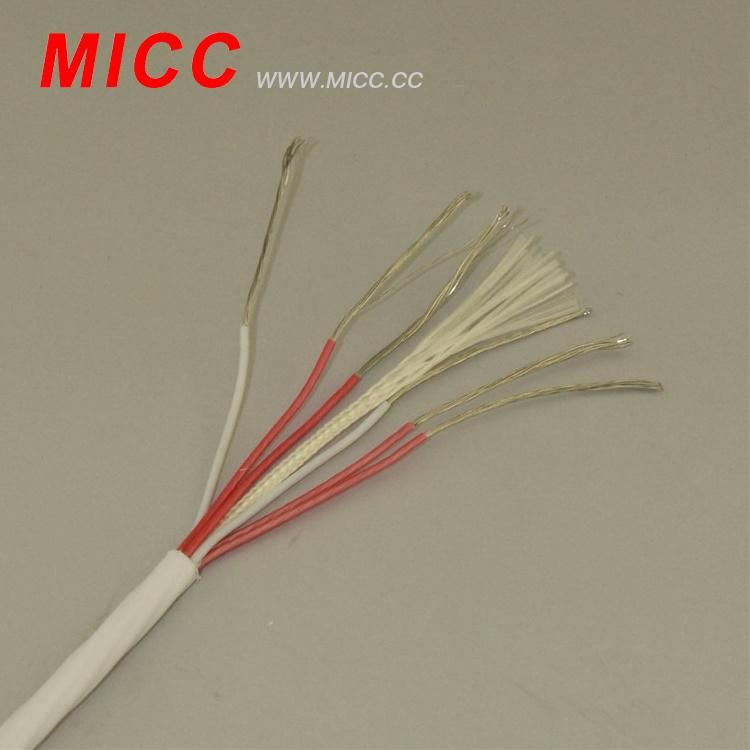

Rtd Extension Wire Type Rtd-Cu-Tef /Sil-2x7/0.2Rtd Extension Wire Type Rtd-Cu-Tef /Sil-2x7/0.2Rtd Extension Wire Type Rtd-Cu-Tef /Sil-2x7/0.2
Dimensions and tolerance
Dimensions / tolerances (mm)
4.0± 0.2
Calibration and tolerance
Temperature rangeStandard tolerance*Special tolerance*
0° C to 400° C
± 2, 2° C or 0.75%± 1, 1° C or 0, 4%
