Thermocouple Wire Type K Thermocouple Accessories
Wuhan Elite Industry Co., Ltd.- Type:Insulated
- Conductor Type:Solid
- Application:Heating
- Conductor Material:Positive Chromel Negative Alumel
- Sheath Material:Fiberglass, PVC, Teflon, Silicone Rubber
- Insulation Material:Fiberglass, PVC, Teflon, Silicone Rubber
Base Info
- Model NO.:Type K , J , E , N , T , R , S , B
- Material Shape:Round Wire
- Range of Application:Temperature Sensors
- Certification:ISO9001, CE, RoHS
- Brand:Ht Elite
- Types:K,J,E,N,T,R,S,B
- Standard:IEC584
- Temperature:0-300 Degree
- Jacket Layer Materials:Fiberglass, PVC, Teflon, Silicone Rubber
- Galvanized Layer:Stainless Steel, Tinned Brass
- Samples:Available
- Packing:200m,Roll, 250m,Roll, 500, Roll
- Other Packing:Plastic Spool
- Production Time:10-15 Days
- Transport Package:in Roll
- Specification:AWG
- Trademark:no
- Origin:China
- HS Code:8544491900
- Production Capacity:80, 0000
Description
0~200Cu Braid Sillicon Sheath RTD-TEF/TEF- 0.12 X 6 0.12 X 6 Teflon/Teflon 0~200 RTD-PFA/PFA- 7/0.2 X 3 7/0.2 X 3 PFA Teflon/PFA Teflon 0~260 RTD-KPT/KPT- 7/0.2 X 3 7/0.2 X 3 KAPTON/KAPTON 0~400
3. Standard: Conforms to IEC584 standard.

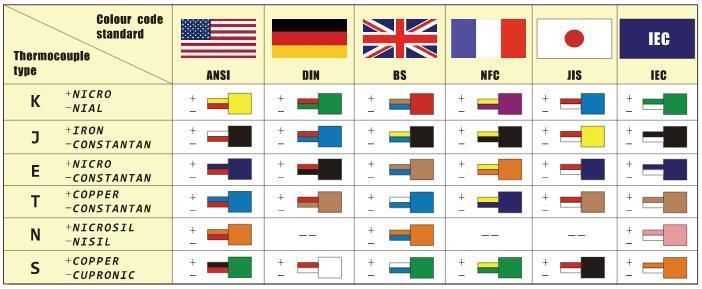

4. Color Code: Table 1
5. Fiberglass Thermocouple Wire
Conductors
Color code:
ANSI: American standard
DIN: Germany standard
BS: Britain standard
NFC: France Standard
JIS: Japan Standard
IEC: IEC standard
Types Available: K, J, E, T, N, S
1>. Constructure: Fiberglass +fiberglass
Conductors are fiberglass insulated
Overall fiberglass jacket
Max. Environment temperature: 400ºC
2>. Constructure: Fiberglass +stainless steel braided (FG+SSB)
Conductors are fiberglass insulated
Overall stainless steel braided jacket for shielding.
Max. Environment temperature: 400ºC
3>. Constructure: Fiberglass +fiberglass +stainless steel braided (FG+FG+SSB)
Conductors are fiberglass insulated
Overall fiberglass jacket
Stainless steel braided jacket shielding.
Max. Environment temperature: 400ºC
4>. Constructure: Fiberglass +teflon (FG+TF)
Conductors are fiberglass insulated
Overall teflon jacket,
Max. Environment temperature: 400ºC
6. Teflon Thermocouple Wire
Conductors
Color code:
ANSI: American standard
DIN: Germany standard
BS: Britain standard
NFC: France Standard
JIS: Japan Standard
IEC: IEC standard
Type available: K, J, E, T, N, S
1 >*Constructure: Teflon +Teflon (TF + TF)
Conductors are teflon insulated
Overall teflon jacket
Max. Environment temperature: 200ºC
2 > Constructure: Teflon +Teflon (TF + TF Twisted )
Conductors are teflon insulated
Two wires twisted
Overall teflon jacket,
Max. Environment temperature: 200ºC
3> Constructure: Teflon + Stainless Steel Braided (TF + SSB )
Conductors are teflon insulated
Overall stainless steel braided jacket.
Max. Environment temperature: 200ºC
4> Constructure: Teflon + Stainless Steel Braided+ Teflon (TF + SSB +TF )
Conductors are teflon insulated
Stainless steel braided for shieding in the middle
Overall teflon jacket.
Max. Environment temperature: 200ºC
7. PVC Thermocouple Wire
Conductors
Color code:
ANSI: American standard
DIN: Germany standard
BS: Britain standard
NFC: France Standard
JIS: Japan Standard
IEC: IEC standard
Type Available: K, J, E, T, N, S
1>. Constructure: PVC + PVC ( PVC + PVC )
Conductors are PVC insulated
Overall PVC jacket
Max. Environment temperature: 105ºC
2>. Constructure: PVC + Stainless Steel + PVC ( PVC + SSB+ PVC )
Conductors are PVC insulated
Stainless steel braided for shieding in the middle
Overall PVC jacket
Max. Environment temperature: 105ºC
8. Thermocouple cable Silicone Rubber type
Conductors
Color code:
ANSI: American standard
DIN: Germany standard
BS: Britain standard
NFC: France Standard
JIS: Japan Standard
IEC: IEC standard
Type Available: K, J, E, T, N, S
1>. Constructure: Silicone Rubber + Silicone Rubber ( SR + SR)
Conductors are silicone rubber insulated
Overall silicone rubber jacket
Max. Environment temperature: 200ºC
2>. Constructure: Quartz Fiber + Quartz Fiber ( QF + QF)
Conductors are quartz fiber insulated
Overall quartz fiber jacket
Max. Environment temperature: 1000ºC
3>. Constructure: Kapton + Kapton ( KP + KP)
Conductors are kapton insulated
Overall kapton jacket
Max. Environment temperature: 400ºC
9. RTD cable
Conductors
Type available: No
Color code: No
1>. Constructure: Silicone Rubber + Silicone Rubber ( SR + SR)
RTD extension cable
Conductors could be copper or nickel. Are silicone rubber insulated
Overall silicone rubber jacket
Max. Environment temperature: 200ºC
2>. Constructure: Teflon + Stainless Steel +Teflon ( TF + SSB + TF )
RTD cable
Conductors could be copper or nickel
Conductors are teflon insulated
Stainless steel braided for shieding in the middle
Overall silicone rubber jacket
Max. Environment temperature: 200ºC
3. Standard: Conforms to IEC584 standard.
4. Color Code: Table 1
5. Fiberglass Thermocouple Wire
Conductors
Wire Sizes(mm) | Section(mm²) | AWG |
2X1/0.2 | Approx. 0.03 | 32 |
2X1/0.5 | Approx. 0.20 | 24 |
2X1/0.65 | Approx. 0.33 | 22 |
2X1/0.8 | Approx. 0.50 | 20 |
2X7/0.2 | Approx. 0.22 | 24 |
2X7/0.3 | Approx. 0.50 | 20 |
2X6/0.32 | Approx. 0.48 | 20 |
Color code:
ANSI: American standard
DIN: Germany standard
BS: Britain standard
NFC: France Standard
JIS: Japan Standard
IEC: IEC standard
Types Available: K, J, E, T, N, S
1>. Constructure: Fiberglass +fiberglass
Conductors are fiberglass insulated
Overall fiberglass jacket
Max. Environment temperature: 400ºC
2>. Constructure: Fiberglass +stainless steel braided (FG+SSB)
Conductors are fiberglass insulated
Overall stainless steel braided jacket for shielding.
Max. Environment temperature: 400ºC
3>. Constructure: Fiberglass +fiberglass +stainless steel braided (FG+FG+SSB)
Conductors are fiberglass insulated
Overall fiberglass jacket
Stainless steel braided jacket shielding.
Max. Environment temperature: 400ºC
4>. Constructure: Fiberglass +teflon (FG+TF)
Conductors are fiberglass insulated
Overall teflon jacket,
Max. Environment temperature: 400ºC
6. Teflon Thermocouple Wire
Conductors
Wire Sizes(mm) | Section(mm²) | AWG |
2X1/0.2 | Approx. 0.03 | 32 |
2X1/0.5 | Approx. 0.20 | 24 |
2X1/0.65 | Approx. 0.33 | 22 |
2X1/0.8 | Approx. 0.50 | 20 |
2X7/0.2 | Approx. 0.22 | 24 |
2X7/0.3 | Approx. 0.50 | 20 |
2X6/0.32 | Approx. 0.48 | 20 |
Color code:
ANSI: American standard
DIN: Germany standard
BS: Britain standard
NFC: France Standard
JIS: Japan Standard
IEC: IEC standard
Type available: K, J, E, T, N, S
1 >*Constructure: Teflon +Teflon (TF + TF)
Conductors are teflon insulated
Overall teflon jacket
Max. Environment temperature: 200ºC
2 > Constructure: Teflon +Teflon (TF + TF Twisted )
Conductors are teflon insulated
Two wires twisted
Overall teflon jacket,
Max. Environment temperature: 200ºC
3> Constructure: Teflon + Stainless Steel Braided (TF + SSB )
Conductors are teflon insulated
Overall stainless steel braided jacket.
Max. Environment temperature: 200ºC
4> Constructure: Teflon + Stainless Steel Braided+ Teflon (TF + SSB +TF )
Conductors are teflon insulated
Stainless steel braided for shieding in the middle
Overall teflon jacket.
Max. Environment temperature: 200ºC
7. PVC Thermocouple Wire
Conductors
Wire Sizes(mm) | Section(mm²) | AWG |
2X1/0.2 | Approx. 0.03 | 32 |
2X1/0.5 | Approx. 0.20 | 24 |
2X1/0.65 | Approx. 0.33 | 22 |
2X1/0.8 | Approx. 0.50 | 20 |
2X7/0.2 | Approx. 0.22 | 24 |
2X7/0.3 | Approx. 0.50 | 20 |
2X6/0.32 | Approx. 0.48 | 20 |
Color code:
ANSI: American standard
DIN: Germany standard
BS: Britain standard
NFC: France Standard
JIS: Japan Standard
IEC: IEC standard
Type Available: K, J, E, T, N, S
1>. Constructure: PVC + PVC ( PVC + PVC )
Conductors are PVC insulated
Overall PVC jacket
Max. Environment temperature: 105ºC
2>. Constructure: PVC + Stainless Steel + PVC ( PVC + SSB+ PVC )
Conductors are PVC insulated
Stainless steel braided for shieding in the middle
Overall PVC jacket
Max. Environment temperature: 105ºC
8. Thermocouple cable Silicone Rubber type
Conductors
Wire Sizes(mm) | Section(mm²) | AWG |
2X1/0.2 | Approx. 0.03 | 32 |
2X1/0.5 | Approx. 0.20 | 24 |
2X1/0.65 | Approx. 0.33 | 22 |
2X1/0.8 | Approx. 0.50 | 20 |
2X7/0.2 | Approx. 0.22 | 24 |
2X7/0.3 | Approx. 0.50 | 20 |
2X6/0.32 | Approx. 0.48 | 20 |
Color code:
ANSI: American standard
DIN: Germany standard
BS: Britain standard
NFC: France Standard
JIS: Japan Standard
IEC: IEC standard
Type Available: K, J, E, T, N, S
1>. Constructure: Silicone Rubber + Silicone Rubber ( SR + SR)
Conductors are silicone rubber insulated
Overall silicone rubber jacket
Max. Environment temperature: 200ºC
2>. Constructure: Quartz Fiber + Quartz Fiber ( QF + QF)
Conductors are quartz fiber insulated
Overall quartz fiber jacket
Max. Environment temperature: 1000ºC
3>. Constructure: Kapton + Kapton ( KP + KP)
Conductors are kapton insulated
Overall kapton jacket
Max. Environment temperature: 400ºC
9. RTD cable
Conductors
Wire Sizes(mm) |
3X1/0.2 |
3X1/0.5 |
3X1/0.65 |
3X1/0.8 |
3X7/0.2 |
3X7/0.3 |
3X6/0.32 |
Type available: No
Color code: No
1>. Constructure: Silicone Rubber + Silicone Rubber ( SR + SR)
RTD extension cable
Conductors could be copper or nickel. Are silicone rubber insulated
Overall silicone rubber jacket
Max. Environment temperature: 200ºC
2>. Constructure: Teflon + Stainless Steel +Teflon ( TF + SSB + TF )
RTD cable
Conductors could be copper or nickel
Conductors are teflon insulated
Stainless steel braided for shieding in the middle
Overall silicone rubber jacket
Max. Environment temperature: 200ºC
