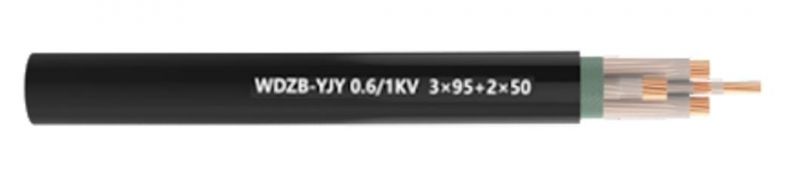

0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Application：Underground
  • Insulation Material：PVC
  • Sheath Material：PVC
  • Material Shape：Round Wire
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, CE, RoHS, UL, VDE

Base Info

  • Model NO.：WDZA-YJV
  • OEM：Yes
  • Transport Package：Wooden Box Packing or Pallet Shipping Containers
  • Specification：copper
  • Trademark：Feiya
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：80000 Meter,Meters Per Month

Description

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber CableOperating features

Operating temperature
Max.Permissible continuous operating temperature of conductors shall not exceed 90ºC

Conductor Short circuit temperature
Not exceeding 250ºC.(Max. Duration 5 seconds)

Bending radius
Bending radius of single core cable:20D
Bending radius of multi-core cable: 15D
D=Actual overall diameter of cable(mm)

Installation temperature:
The lowest temperature of installation is 0ºC
Laying conditions and basic parameters for calcalating current ratings:
Method of laying         Ambient temperature
In air                           40ºC
Direct burial                25ºC
Soil thermal resistivity 1.0ºC m/W

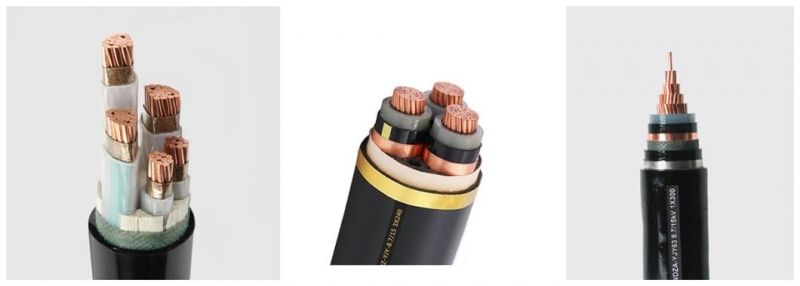

Type,description and main applicationsTypeDescriptionMain applicationYJV,YJY
YJLV,YJLYCu or AL conductor XLPE insulated PVC/PE Sheath Power cableFor indoor ,aerial,tunnel,trench and conduit.
Laying Single core cable in magnetic duct is not permissble.YJV22
YJLV22Cu or AL conductor XLPE insulated steel tape armored PVC sheathed power cableFor laying underground,bear external mechanical force,but unable to bear large pulling forceYJV32
YJLV32Cu or AL conductor XLPE insulated thin steel wire armored PVC sheathed power cableFor laying underground,vertical well,or underwater, able to bear certain pulling force0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable0.6/1kv Wdza-Yjv Cu/XLPE Low Smoke Zero Halogen Power Lsoh Control Cable Electric Wire Waterproof Rubber Cable
