• Model NO.：abc cable twisted by 3cores3*35 3*50 3*95 aluminum
• Material Shape：Round Wire
• Range of Application：Overhead
• Certification：ISO9001, CE, CCC, RoHS
• Brand：Hongda
• Voltage：0.6,1kv
• Conductor：Aluminum
• Core：1,2,3,4 Core
• Key Word：ABC Cable
• Packing：Wooden Drum
• Transport Package：Wooden Drum, Wooden Palate
• Specification：abc cable twisted by 3cores3*35 3*50 3*95 aluminum
• Trademark：HONGDA CABLE
• Origin：Henan China
• HS Code：8544492100
• Production Capacity：1000km Per Month

Basic Info.

Model NO. abc cable twisted by 3cores3*35 3*50 3*95 aluminum Material Shape Round Wire Range of Application Overhead Certification ISO9001, CE, CCC, RoHS Brand Hongda Voltage 0.6/1kv Conductor Aluminum Core 1/2/3/4 Core Key Word ABC Cable Packing Wooden Drum Transport Package Wooden Drum/ Wooden Palate Specification abc cable twisted by 3cores3*35 3*50 3*95 aluminum Trademark HONGDA CABLE Origin Henan China HS Code 8544492100 Production Capacity 1000km Per Month

Product Description

abc cable twisted by 3cores 3*35m  aluminum line used in overhead power distribution lines of rated voltage 600/1000V XLPE/PVC/HDPE insulation

1.Applications
            Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.
2.Standards
         GB/T12527,1179 ,IEC60502 ,NFC 33-209 ,BS 7870 ,ANSI/ICEA S-76-474  AS/NZS 3560.1 etc.
 *HONGDA can also design and produce for special application requirement.
3.Production Range
          Rated Voltage U0/U(Um) (kV) : 0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2
Nominal cross-section(mm2): 10~240
4.Construction
           Phase conductors :Round standed or compacted 1350-H19 aluminium or Copper conductor ,AAAC,ACSR
Neutral or messenger conductor :Round standed or compacted 6201 aluminium alloy or AAC ,,ACSR
Street lighting conductor: Round standed or compacted Aluminium conductor

Note: The above provisions can be changed as order.

Standard
NFC 33-209: Aerial Bundled Cables
ICEA S-76-474: Standard for Neutral-supported Power Cable Assemblies with Weather-resistant Extruded Insulation Rated 600 Volts

Application
This 16mm aluminium xlpe cable (usually twisted by 2~4 cores) is used in overhead power distribution lines of rated voltage 600/1000V and below. With the XLPE insulation, it can be installed near the buildings, trees in downtown areas.
Product Details
1) Phase conductor: stranded 1350 aluminum, 7/1.70 mm
2) Insulation: XLPE, 1.2 mm
3) Overall diameter: 7.2 mm
4) Approx. weight: 66 kg/km
5) Max. DC resistance at 20 degrees: 1.91 ohm/km
6) Max. working temperature: 90 degrees

 Standard Aerial Bundled Conductor (ABC) Cables

Number of Cores     x Nominal Cross Section	Overall Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.×mm²	mm	Kg/Km	Ω/Km	kN	A
2x16 RM	15.0	140	1,91	4.4	78
2x25 RM	17.6	210	1,200	7.0	105
2x35 RM	19.6	270	0,868	9.8	125
2x50 RM	22.8	370	0,641	11.4	150
2x95 RM	30.6	680	0,320	15.3	230
3x25 RM	19.0	310	1.20	8.8	97
3x35 RM	21.1	410	0,868	9.8	120
3x50 RM	24.6	550	0,641	11.4	140
4x16 RM	18.1	290	1.91	8.8	74
4x25 RM	21.2	410	1.20	14.0	97
4x35 RM	23.7	550	0.8688	19.6	120
4x50 RM	27.5	740	0.641	28.0	140
4x70 RM	31.9	1000	0.443	39.2	175
4x95 RM	36.9	1370	0.320	53.2	215
4x120 RM	40.6	1690	0.253	67.2	250
4x150 RM	43.9	2020	0.206	84.0	280

About us :

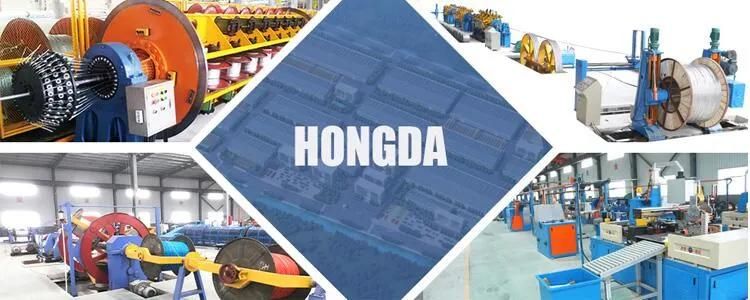

Hongda Cable, established in 2004, with two factories in Henan Province, China, is dedicated into manufacturing a wide range of electric wire and cable with rated voltage from 300 voltage to 36kv. The electric wire and cable are applied to industrial, commercial, and residential use. Including PVC insulated cable, XLPE insulated cable, Aerial Bundle Cable, Control Cable, Bare Overhead Conductor (AAC, AAAC, ACSR, ACAR), PVC or XLPE insulated with sheath or unsheathed electric wires, which are used for power generation, power transmission, power distribution, house wiring, electrical equipment, oil & Gas, marine & shipboard, telecommunication, control & instrumentation, and so on.


Hongda Cable is certificated by ISO 9001, CCC (China Compulsory Product Certification). With quality and service, Hongda Cable has been supplying cables for China Railway, Military Residence, Power Station and Substation, Petrochemical, Hospital, Water Suppliers, Real Estate, Shopping Mall,Smelting and mining industry; For overseas market, Hongda Cable have developed market in North America, Middle East, Asian, Africa, South America, Austria, etc.

With 13 years of development, based on our core values of efficiency, honesty, integrity, and respect for people and the environment, from the heaviest industries to the places closest to hands, Hongda Cable cares every detail and always be here for you.
