PVC Control Cable with Copper Braiding, Oil Resistant Flexible Low Voltage Signal and Impulse Cable Electric Wire
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：H05VVC4V5-K, Yslcy
- Range of Application：Dry, Damp and Wet Locations
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Color：Black Red Yellow, According to Voltage Level
- Whether It Is Environmentally Friendly：Yes
- Whether Quality Inspection：Provide Inspection Certificate
- Standard：Customized According to Specified National Standar
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Transport Package：Standard Export Packaging
- Specification：1-300mm²
- Trademark：Fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：100000,Day
Description
Application
Suitable for dry, damp and wet locations but not in the open-air. It is used as a screened termination and connection cable in the control, measuring and signal technology. Suitable as a signal and impulse cable for control and inspection of industrial plants, machinery and working processes.

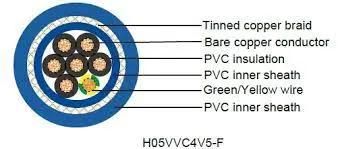

Construction:
1 ..... fine-stranded bare copper
2 ..... core insulation of polyvinylchloride (PVC-mixture YI2)
3 ..... inner sheath of polyvinylchloride (mixture YM2)
4 ..... braiding of tinned copper wires
5 ..... outer sheath of polyvinylchloride ( PVC-mixture YM2), grey
Standards:
DIN VDE 0281-13
HD 21.13.S1
DIN EN 60228 class 5 (construction)
core identification:
1 core green/yellow, other cores black with figures

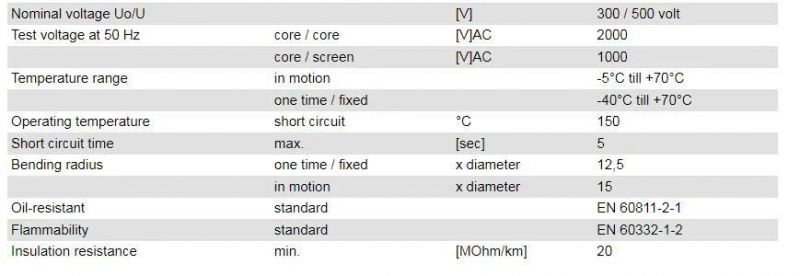

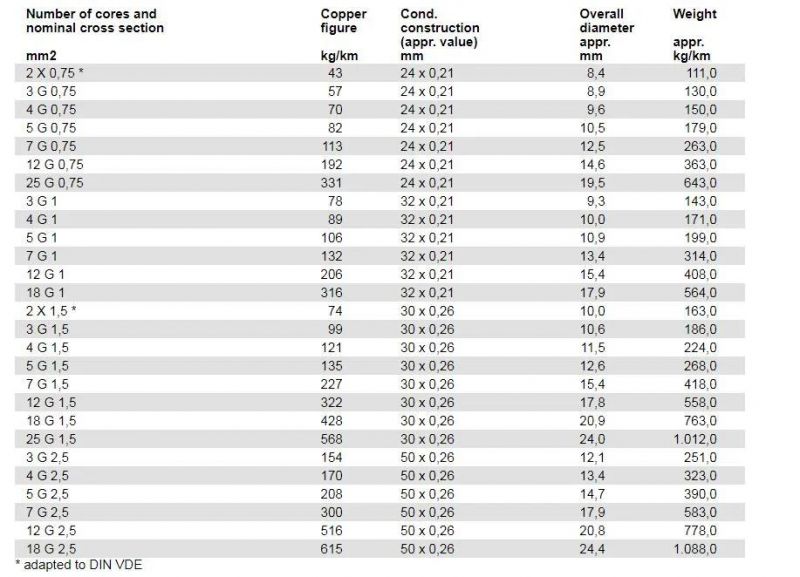

Technical data:
