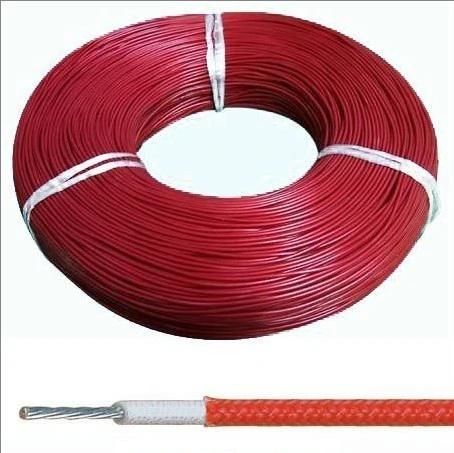

UL3122 Silicone Rubber Insulation and Fiberglass Braid Wire
Jiangyin Yuanda Electrical Material Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Tinned Copper
- Sheath Material：Fiber Glass
- Insulation Material：Silicone Rubber
Base Info
- Model NO.：IL3122
- Material Shape：Round Wire
- Range of Application：Household Appliances,Lightings,Electric Equipments
- Certification：ISO9001, UL, CCC, RoHS, VDE
- Brand：Yuanda

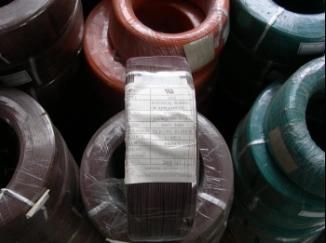

- Transport Package：Pallet,Carton,Tray,Reel
- Specification：16-26AWG
- Trademark：Yuanda
- Origin：Wuxi, China
- HS Code：8544492100
- Production Capacity：1000km,Day
Description
Electrical characteristicSpec
AWG Conductor
construction
No./ φmm Diameter
(mm) Nominal
thickness
(mm) Fiber glass thickness (mm) Nominal outer diameter (mm) Max outer diameter (mm) Resistance 20ºC
Ω/km Permissible
ampacity
20ºC-AMR 26 7/0.16 0.48 0.4 0.15 1.6 1.8 143.0 3.5 24 7/0.20 0.6 0.4 0.15 1.7 1.9 92.0 5 22 7/0.25 0.75 0.4 0.15 1.9 2.1 56.8 7 20 7/0.31 0.93 0.4 0.15 2.03 2.23 40.1 9 18 7/0.395 1.19 0.4 0.15 2.3 2.5 23.0 13 16 7/0.495 1.49 0.4 0.2 2.7 3 14.6 17
AWG
construction
No./ φmm
(mm)
thickness
(mm)
Ω/km
ampacity
20ºC-AMR
