Professional Cable Manufacturer All Aluminum Alloy Conductor
Luoyang Asian Sun Wire & Cable Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Aluminum
- Sheath Material：PVC
- Insulation Material：XLPE
Base Info
- Model NO.：AAAC
- Material Shape：Round Wire
- Range of Application：Overhead, Underground
- Certification：ISO9001, CE, UL, CCC
- Brand：Yari
- Color：Silver
- Warranty：12 Months
- Transport Package：Wooden Drum,Wooden Steel Drum,Rolls
- Specification：as customer request
- Trademark：YaRi
- Origin：China Mainland
- HS Code：76149000
- Production Capacity：50000 Meters Per Day
Description
MAX .DC resistance at 20Nominal Actual MCM mm2 mm mm kg/km kN ohm/km AKRON 30.58 15.5 7/1.68 5.04 42.58 4.92 2.159 ALTON 48.69 24.7 7/2.12 6.36 67.80 7.83 1.356 AMES 77.47 39.2 7/2.67 8.01 107.5 12.4 0.8547 AZUSA 123.3 62.4 7/3.37 10.11 171.3 18.9 0.5365 ANAHEIM 155.4 78.6 7/3.78 11.34 215.6 23.8 0.4264 AMHERST 195.7 99.3 7/4.25 12.75 272.5 30.0 0.3373 ALLIANCE 246.9 125 7/4.77 14.31 343.2 37.8 0.2678 BUTTE 312.8 159 19/3.26 16.3 435.1 46.5 0.2112 CANTON 394.5 200 19/3.66 18.3 548.5 58.6 0.1676 CAIRO 465.4 236 19/3.98 19.9 648.6 69.2 0.1417 DARIEN 559.5 284 19/4.36 21.8 778.3 83.1 0.1181 ELGIN 652.4 331 19/4.71 23.55 908.3 97.0 0.1012 FLINT 740.8 375 37/3.59 25.13 1028 107 0.08944 GREELEY 927.2 470 37/4.02 28.14 1289 135 0.07133 / 1077.4 547 61/3.38 30.42 1502 156 0.06120 / 1165.1 590 61/3.51 31.59 1620 167 0.05675 / 1259.6 638 61/3.65 32.85 1751 181 0.05248 / 1348.8 685 61/3.78 34.02 1878 194 0.04893 / 1439.2 729 61/3.90 35.10 1999 207 0.04597
Conductor (ACSR,AAC,ABC,AAAC ) have been widely used in power transmission lines with various voltage, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
Standards:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.

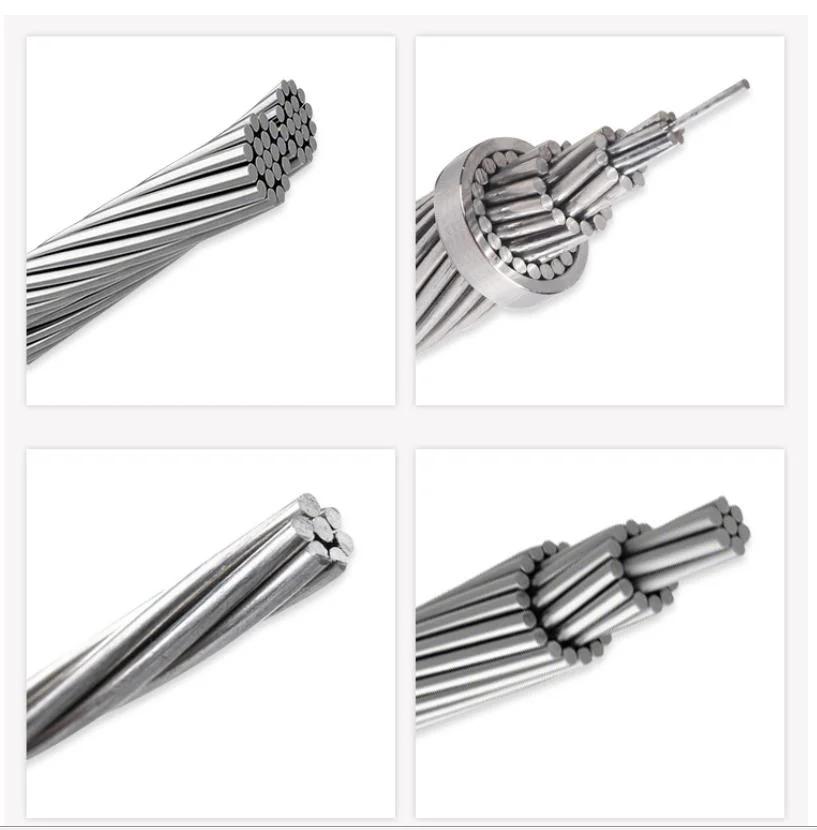

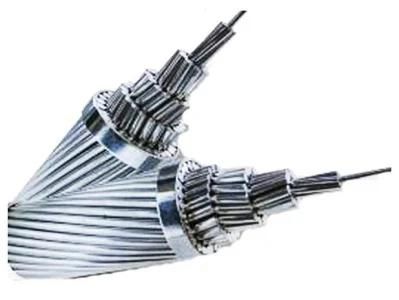

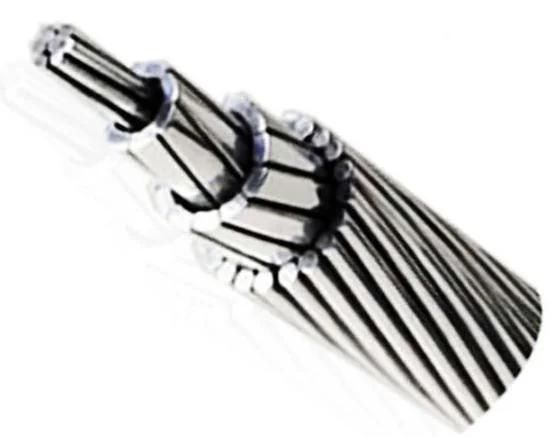

Product Pictures:
Producing Process:

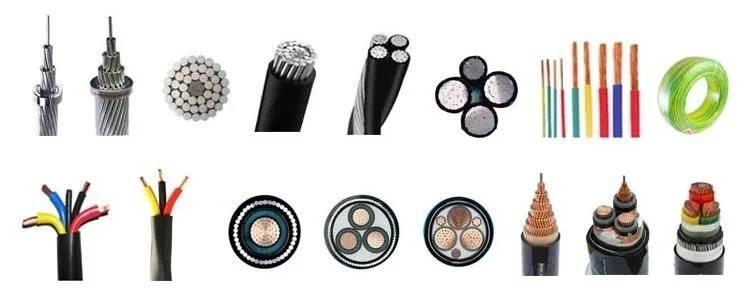

More Products:

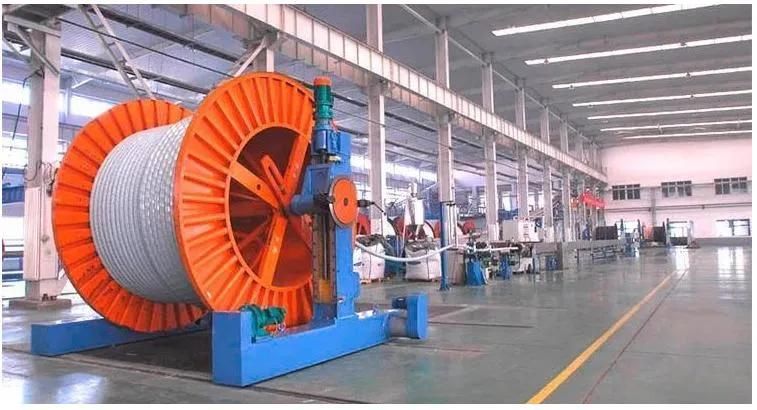

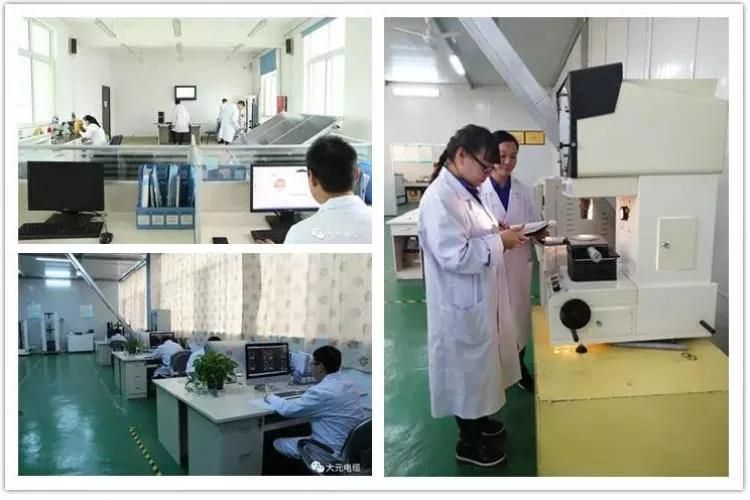

Our Workshop

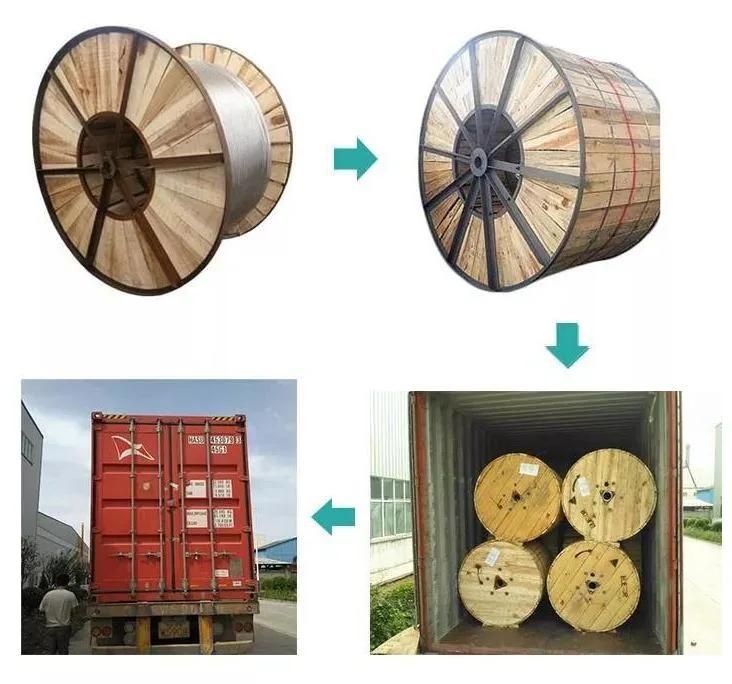

Packing & Delivery
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;
20GP, 40GP and 40HQ containers
Certiificates:
FAQ:
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
Conductor (ACSR,AAC,ABC,AAAC ) have been widely used in power transmission lines with various voltage, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
Standards:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.
Product Pictures:
Producing Process:
More Products:
Our Workshop
Packing & Delivery
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;
20GP, 40GP and 40HQ containers
Customer Visit

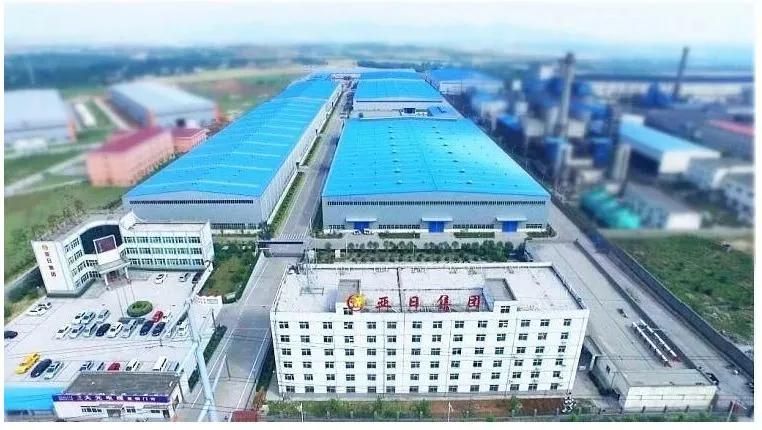

Luoyang Asian Sun Wire & Cable Co., Ltd.
