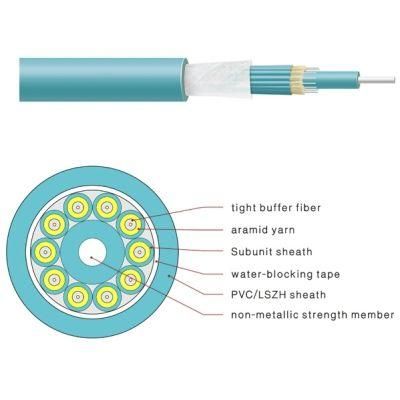

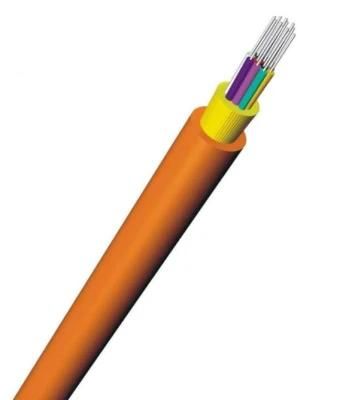

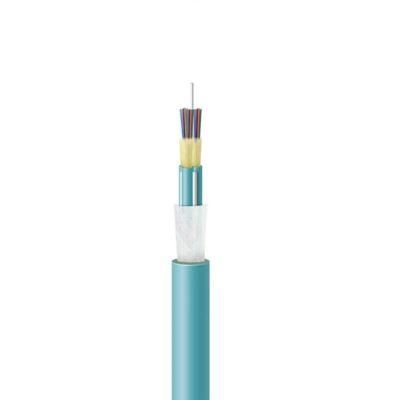

12 24 48 144 Core Signal Mode Gjpfjv Indoor Multi Fiber Optical Communication Cable

Zhejiang Fuchunjiang Photoelectric Science Technology Co., Ltd.
  • Application:Communication
  • Type:Single-mode Fiber
  • Connection Structure:Can Be Customized
  • Allowed Lateral Pressure:100(N,100mm)<1000(N,100mm)
  • Allowed Tensile Strength:1000N<10000N
  • Core:Single Core

Base Info

  • Model NO.:Gjpfjv
  • Certification:RoHS, UL, CE, ISO9001, VDE, CCC
  • Brand:Fcj Opto Tech
  • Sheath Material:Crosslinking
  • Jacked Color:Blue, Orange, Green, White etc.
  • Temperature Range:-20~70 Degree

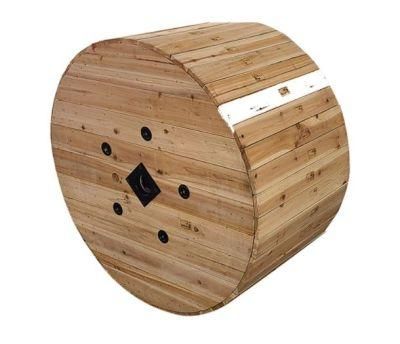

  • Transport Package:Carton Box
  • Specification:2KM, 3KM
  • Trademark:Fcj Opto Tech.
  • Origin:China
  • HS Code:854470000
  • Production Capacity:8000km,Month

Description

Bandwidth  (Class A)@850  ≥500MHZ·km≥200MHZ·km@1300  ≥1000MHZ·km≥600MHZ·kmNumerical Aperture   0.200±0.015NA0.275±0.015NACable Cut-off Wavelength ≤1260nm≤1480nm
Technical Parameters
Fiber CountCable Diameter
mm
Cable Weight
Kg/km
Tensile Strength
Long/Short Term
N
Crush Resistance
Long/Short Term
N/100m
Bending Radius
Static/Dynamic
mm
2413.8±0.570500/1300300/100030D/15D
4818.0±0.5150500/1300300/100030D/15D
9625.0±0.5340500/1300300/100030D/15D
12031.0±1mm530500/1300300/100030D/15D

Environmental Characteristics
Transport Temperature-20ºC~+60ºC
Storage Temperature-20ºC~+60ºC
Installation Temperature-5ºC~+50ºC
Operating Temperature-20ºC~+60ºC
